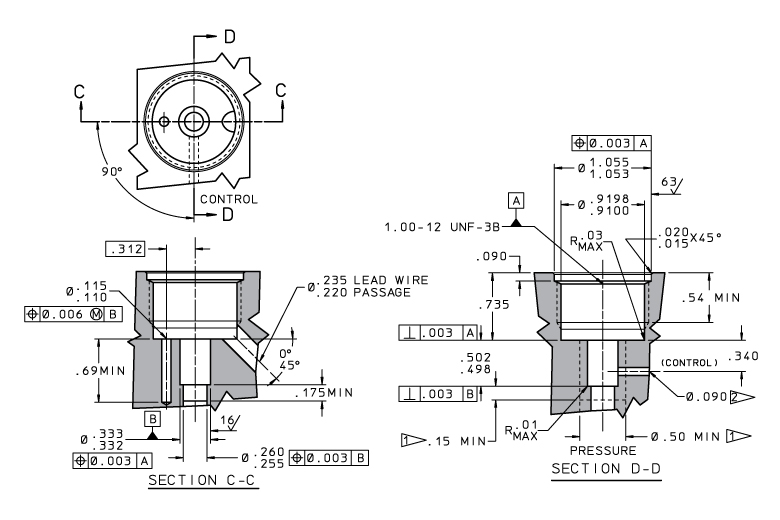

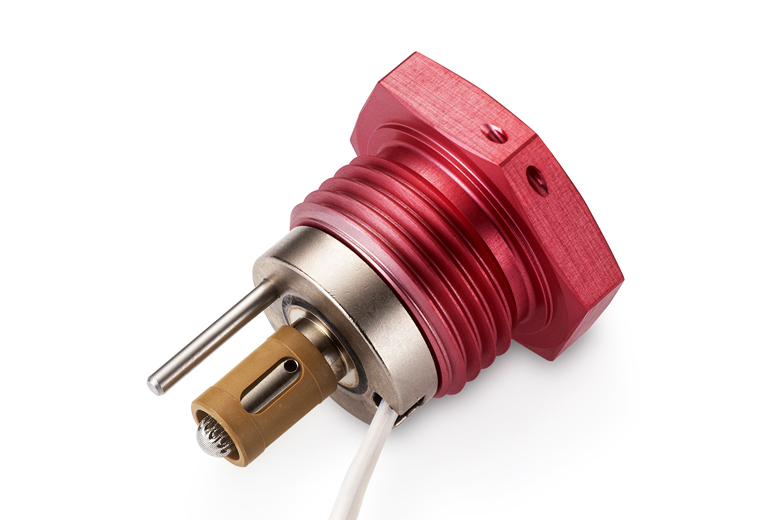

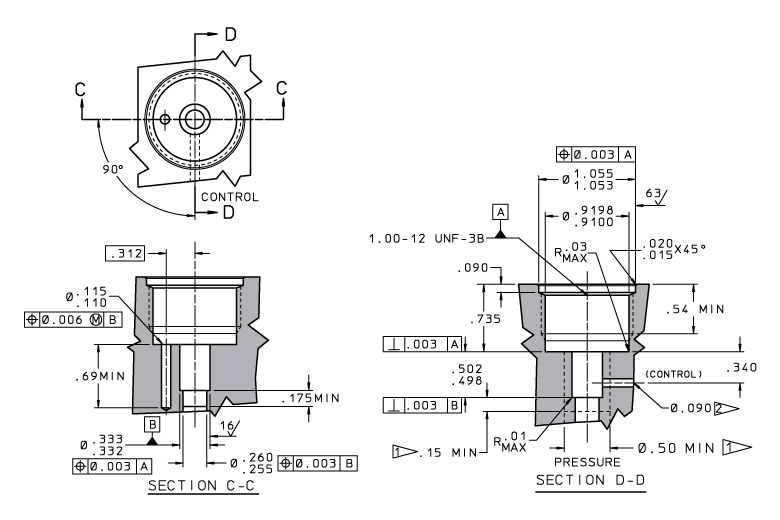

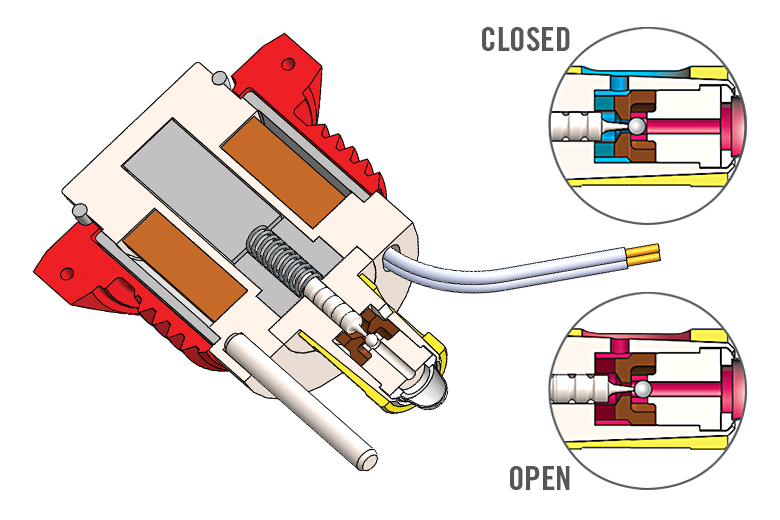

This zero-leak solenoid valve incorporates a polyimide ball seat to eliminate leakage. The valve is acceptance tested to guarantee leakage of zero bubbles of nitrogen per minute with 500 to 3000 psid of pressure on the inlet port. The valve’s 2-way, pressure assist to close configuration offers added safety in the event of a failure. This design utilizes MultiSeal® technology, eliminating the need for O-rings, simplifying port layout, and offering significant space and weight savings.
| CHARACTERISTIC | SPECIFICATION |
|---|---|
| Operating Pressure | 500 - 3000 psid |
| Operating Ambient Temperature | -65°F to 275°F |
| Operating Fluid Temperature | -65°F to 275°F |
| Internal Leakage | 0 Bubbles / Minute on Nitrogen (500 - 3000 psid) |
| External Leakage | 0 cc |

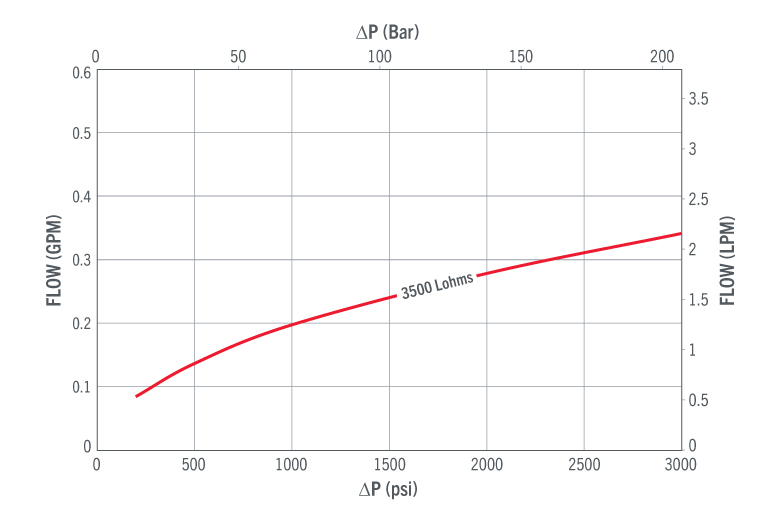

| Lohm Rate | 3500 Lohms Max |
| Current Drain | 0.28 amps at 28 VDC at 70°F (7.8 Watts) |
| Max Operating Voltage | 32.2 VDC |
| Resistance | 92 - 108 Ohms at 70°F |
| Pull-In Voltage | 18 VDC Max at 275°F and Rated Pressure |
| Dropout Voltage | 1 VDC Min at 70°F and Rated Pressure |
| Pull-In Response Time (28 VDC at 70°F and Rated Pressure) |
0.050 Seconds Max |
| Dropout Response Time (28 VDC at 70°F and Rated Pressure) |
0.050 Seconds Max |
| Nominal Screen Hole Size | 0.004 inches |

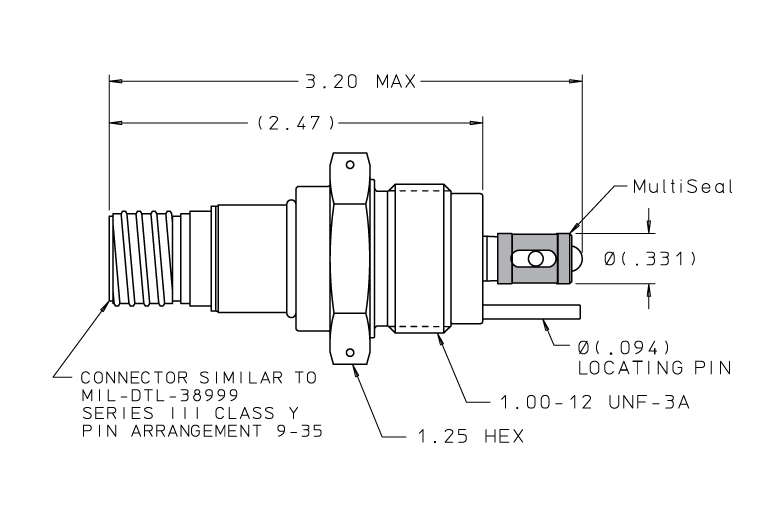

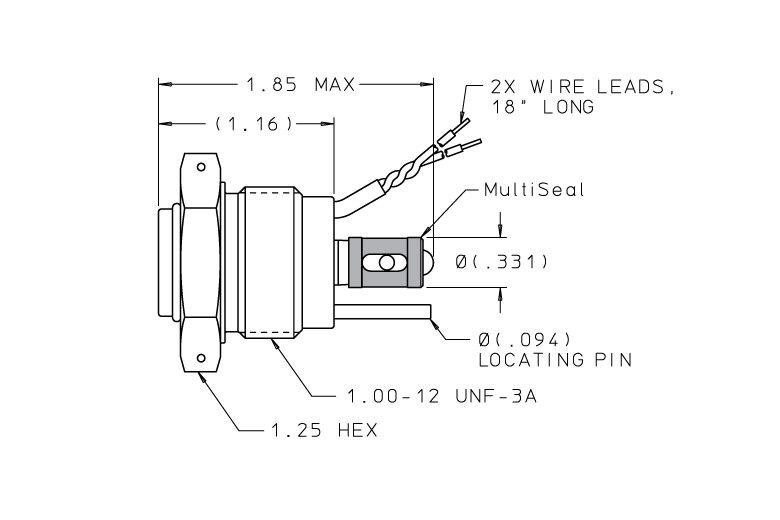

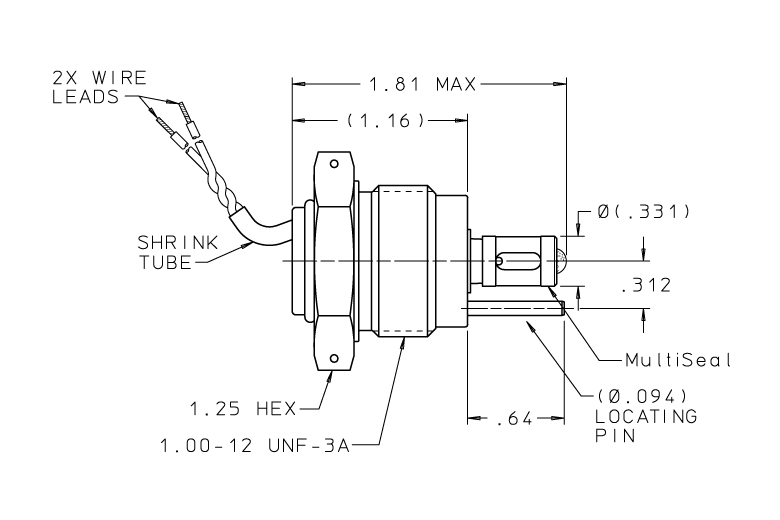

| Weight | Lead Wire Style: 0.25 lbs Max Connector Style: 0.28 lbs Max |
| Wetted Parts | |||
| Part | Material | Specification | Finish |
| Filter Screen | 304L CRES | ASTM A666 | Passivated |
| MultiSeal | Polyamide-Imide | AMS 3670 | – |
| Body and Ball Guide | 15-5 PH CRES | AMS 5659 | Passivated |
| Ball and Pin | 440C CRES | AMS 5630 | Passivated |
| Ball Seat | Polyimide | AMS 3644 | – |
| Shaft | 440C CRES | AMS-QQ-S-763 | Passivated |
| Spring | 302 CRES | AMS 5688 | Passivated |
| Spring Guide | Si Iron BFM | ASTM A867 | Nickel Plate / AMS 2404 |
| Plug and Pushrod | 303 CRES | QQ-S-763C | Passivated |
| Flanges and Plungers | Si Iron BFM | ASTM A867 | Nickel Plate / AMS 2404 |
| Shunt | 22-13-5 CRES | AMS 5764 | Nickel Plate / AMS 2404 |
| Shims and Spacers | 302 CRES | ASTM A666 | Passivated |
| Braze | Silver Alloy | AMS 4774 | Nickel Plate / AMS 2404 |
| Non-Wetted Parts | |||
| Part | Material | Specification | Finish |
| Cover | Si Iron BFM | ASTM A867 | Nickel Plate / AMS 2404 |
| Retainer | 2024 T-351 AL | AMS-QQ-A-225 / 6 | Anodize / MIL-PRF-8625 Type II |
| Retaining Ring | 302 CRES | ASTM A313 / A313M | Passivated |
| Coil | Copper Magnet Wire | NEMA MW1000 / MW16 | – |
| Shrink Tube | PVDF and PTFE | AMS-DTL-23053 / 8 & / 12 | – |
| Insulation Tape | Polyimide | ASTM D5213 | – |
| Solder | Sb05A | J-STD-006 | – |
| Potting Compound | Stycast 2762FT, Catalyst 17 | – | – |
| Lead Wire* | 22 AWG | SAE AS22759 / 11 | – |
| Connector Shell** | 300 Series CRES | – | Passivated |
| Connector Pins** | Gold Plated | – | – |
| Connector Seal** | Fluorosilicone Elastomer | – | – |
| Connector Sleeve** | 304 CRES | AMS-QQ-S-763 | Passivated |
| Connecting Wire** | 26 AWG | SAE AS22759 / 11 | – |
*Applicable to lead wire versions only.
**Applicable to connector versions only.
This table below contains the part numbers and technical specifications for this product. If you have specific questions, need a quote, or would like to request a handbook or drawing, click the red request button in the column on the far right.
| Part Number | Description |
|---|---|
| CUTA3320321B | MultiSeal Extraction Tool |
| SDBB3320108A | Replacement MultiSeal |
| CUTA3320122A | Test Fixture |
From plugs to solenoid valves, there’s a vast array of products that The Lee Company can offer. If you’d like to discuss the best solution for your specific application or to learn more about our capabilities, use-cases, or quality standards, contact your local Lee sales engineer.
Your download has started.
We’re always ready to be your engineering partner. Fill out this form below so we can provide the solution you need.
We have received your inquiry and a member of our team will be in contact shortly to provide more information. Thank you for contacting The Lee Company!
The Lee Company has developed the Lohm Laws for defining and measuring resistance to fluid flow. The Lohm is defined such that 1 Lohm will flow 100 GPM of water with a pressure drop of 25 psi at a temperature of 80°F.
Always verify flow calculations by experiment.
*There are many parameters to consider when determining V-Factor. Click here for more information.
