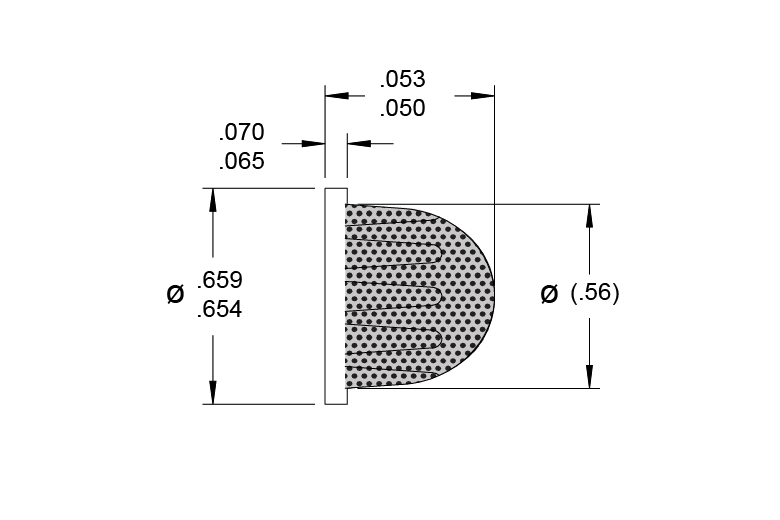

This woven wire mesh last chance filter offers the protection of 10 or 20 micron holes in a compact, flange mount design. The robust filter incorporates a rugged, calendared, and sintered 316L stainless steel wire mesh weave for maximum strength. Manufactured using a proprietary process and formed with pleats to greatly increase contamination carrying capacity, the result is a high strength screen with an optimum amount of protection in a small package.
| PART | MATERIAL | SPECIFICATION |
|---|---|---|
| Screen (Series 10) | 316L CRES | ASTM A580/A580M Chem |
| Screen (Series 20) | 316L CRES | ASTM A 478-97 |
| Base Washer | 316L CRES | ASTM A 666 or AMS 5653 |
| Braze | Silver Alloy | AMS 4765 |
This table below contains the part numbers and technical specifications for this product. If you have specific questions, need a quote, or would like to request a handbook or drawing, click the red request button in the column on the far right.
From plugs to solenoid valves, there’s a vast array of products that The Lee Company can offer. If you’d like to discuss the best solution for your specific application or to learn more about our capabilities, use-cases, or quality standards, contact your local Lee sales engineer.
Your download has started.
We’re always ready to be your engineering partner. Fill out this form below so we can provide the solution you need.
We have received your inquiry and a member of our team will be in contact shortly to provide more information. Thank you for contacting The Lee Company!

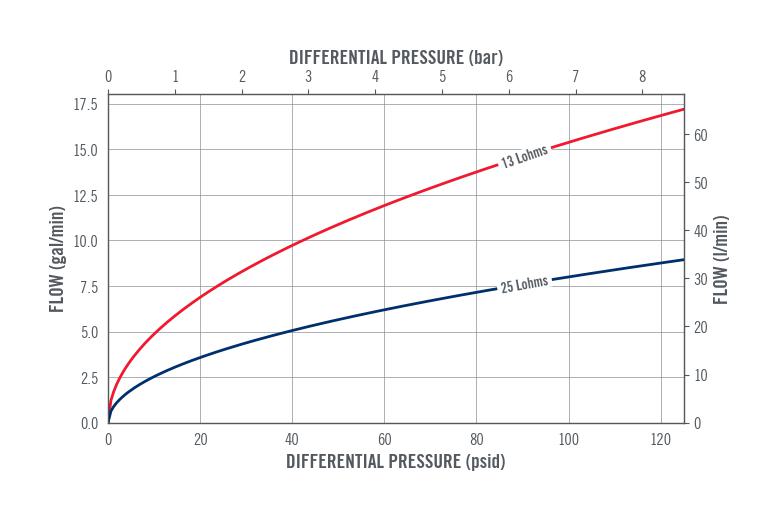

The Lee Company has developed the Lohm Laws for defining and measuring resistance to fluid flow. The Lohm is defined such that 1 Lohm will flow 100 GPM of water with a pressure drop of 25 psi at a temperature of 80°F.
Always verify flow calculations by experiment.
*There are many parameters to consider when determining V-Factor. Click here for more information.
