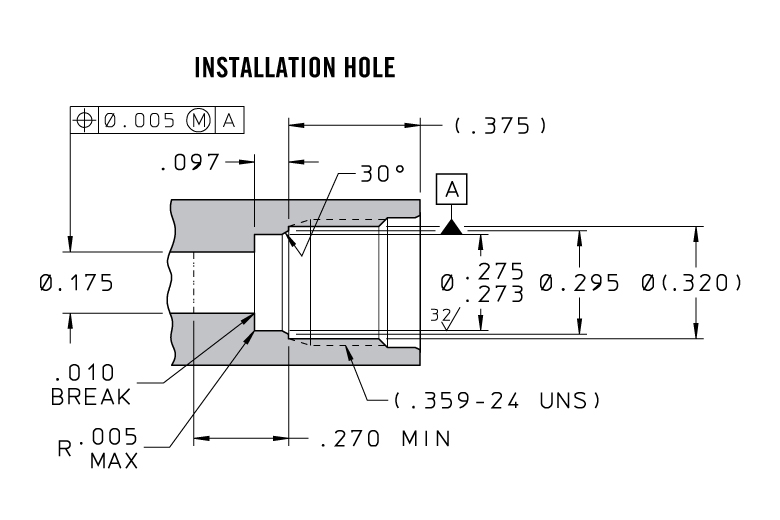

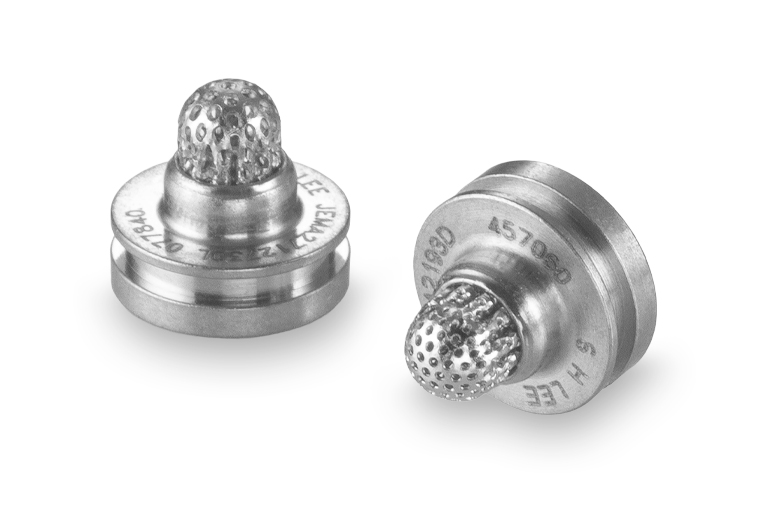

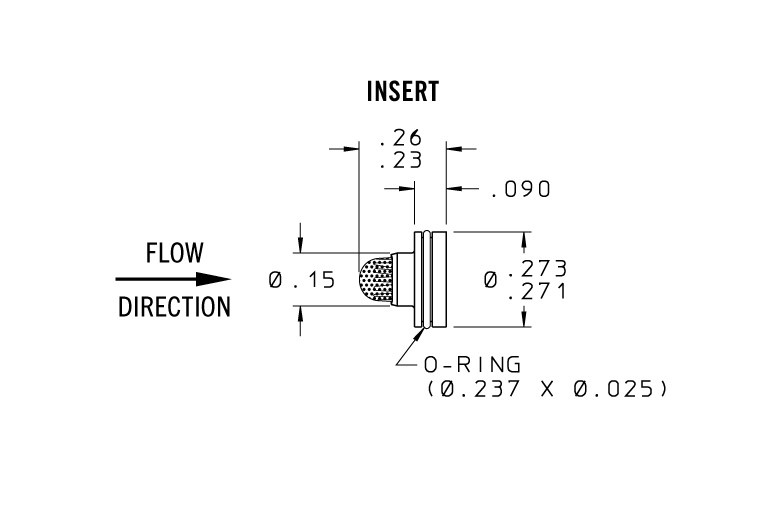

This precision-calibrated orifice is designed for flow balancing in liquid cooling applications where system pressures are below 500 psid. Lohm rates range from 475 to 3100 Lohms. This flow restrictor is 100% flow tested to a +/- 2% tolerance, unidirectionally. Protected in the flow direction by an integral safety screen, the Lee Micro Jet is easily installed into heat exchanger return ports. The restrictor’s small size allows it to be located directly behind quick disconnect fittings.
Characteristic | Specification |
---|---|
Lohm Rate Tolerance | ± 2% |
Maximum Working Pressure | 500 psid |
Nominal Weight | 0.44 grams |
PART | MATERIAL | SPECIFICATION |
---|---|---|
Body | 303 CRES | QQ-S-763C |
Screen Assembly | 304L CRES | ASTM A 666 |
Braze | - | AMS 4774 |
O-Ring | Fluorosilicone | - |
This table below contains the part numbers and technical specifications for this product. If you have specific questions, need a quote, or would like to request a handbook or drawing, click the red request button in the column on the far right.
Part Number | Description |
---|---|
CUTA2711004C | Installation / Extraction Tool Set |
HDRX0200020B | Replacement O-Ring |
JEMA2710000B | Master Set |
From plugs to solenoid valves, there’s a vast array of products that The Lee Company can offer. If you’d like to discuss the best solution for your specific application or to learn more about our capabilities, use-cases, or quality standards, contact your local Lee sales engineer.
Your download has started.
We’re always ready to be your engineering partner. Fill out this form below so we can provide the solution you need.
We have received your inquiry and a member of our team will be in contact shortly to provide more information. Thank you for contacting The Lee Company!
The Lee Company has developed the Lohm Laws for defining and measuring resistance to fluid flow. The Lohm is defined such that 1 Lohm will flow 100 GPM of water with a pressure drop of 25 psi at a temperature of 80°F.
Always verify flow calculations by experiment.
*There are many parameters to consider when determining V-Factor. Click here for more information.
