Solenoid Valves

LHQ Series Quiet Operation 3-Way Control Solenoid Valve

This small (7 mm), 3/2, quiet operation solenoid valve features technology that significantly reduces the actuation noise you typically hear when a solenoid valve is energized. The valve’s low sound profile (≤ 30 dB), low leakage, and high reliability (25 million cycles minimum), make it ideal for patient simulators and a variety of bedside pneumatic applications where actuation sound would otherwise interfere with comfort. Each valve is customizable and 100% tested to ensure performance.

Contact a Lee Sales Engineer Find Another Product
Key Product Facts
  • Quiet Actuation:≤ 30 dB
  • Low Leakage:< 50 SµLPM across life
  • Lightweight:4.5 grams
  • Lohm Rate:2000 Lohms (Cv = 0.01)
  • Operating Pressure:Vacuum – 45 psig, 15 psid

Product Information

General Specifications
Characteristic Specification
Typical Sound Level1 ≤ 30 dB
Operating Pressure Vac - 45 psig; 15 psid Max
Leakage < 50 SµLPM
Cycle Life2 25 M Cycles Min
Recommended Filtration 35 Microns or Finer
Response Time3 10 ms Max at 10 Hz
Operating Temperature 60°F to 120°F (16°C to 40°C)
Max Internal Coil Temperature4 225°F (107°C)
Storage Conditions Temperature: -40°F to 175°F (-40°C to 80°C)
Relative Humidity: 85% Max, Non-Condensing
Weight < 4.5 grams
Internal Volume Plug In: 40 µl
Face Mount: 72 µl
Ported: 77 µl
Unless otherwise indicated, listed specifications are based on 15 psi air, 70°F.
1Sound level when measured 12 inches away from valve cycling at 1 Hz.
2Cycle life is dependent on system conditions and may vary by application.
3Response times are application dependent and can be enhanced with the use of high speed drive circuits. Extended periods of inactivity may impact the valve's initial response time.
4To ensure solenoid coil temperatures remain within specification, duty cycle limitations may be required. Contact The Lee Company for recommendations specific to your application.
WETTED MATERIALS
Component Material
Housing PBT
Seal FKM
Plunger Head PPA
Armature & Plunger Stop 430 Stainless Steel
Spring 316 Stainless Steel
Epoxy and damping fluid are also wetted materials on all LHQ Series valves.
The O-rings on all plug-in valves are FKM.

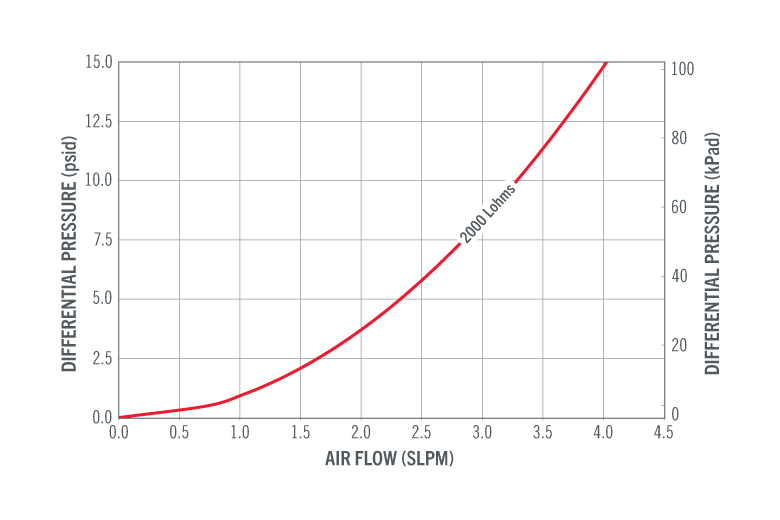

Flow Curve
Flow Characteristics on Air at 70°F (21°C)

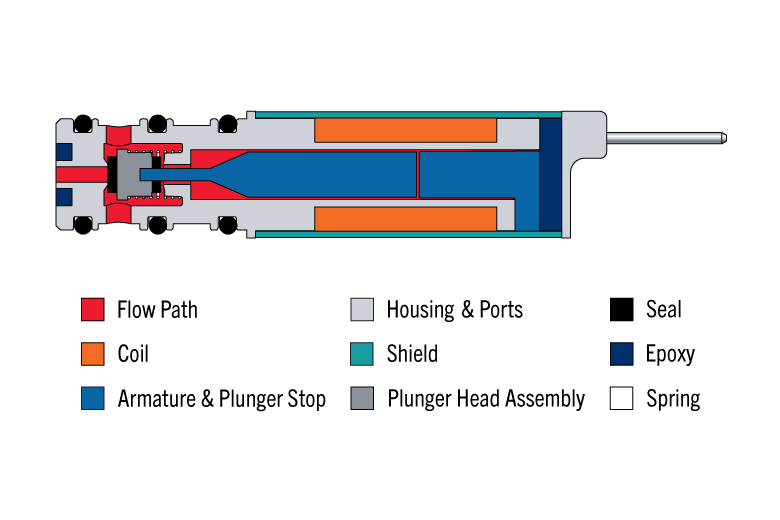

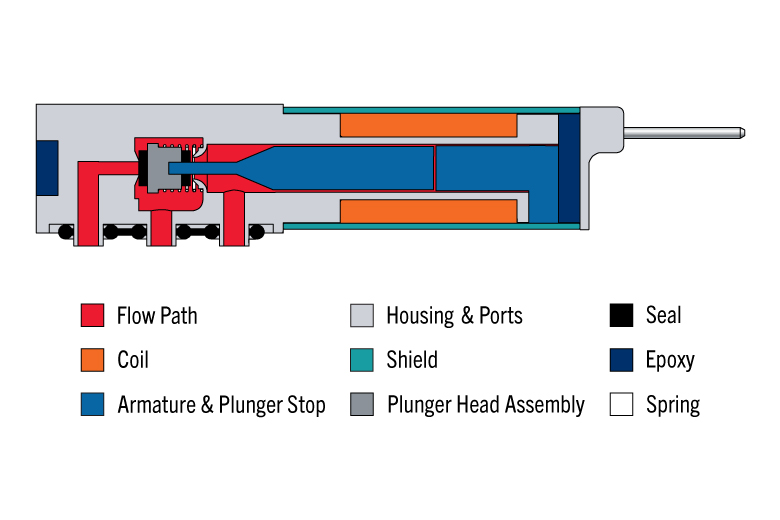

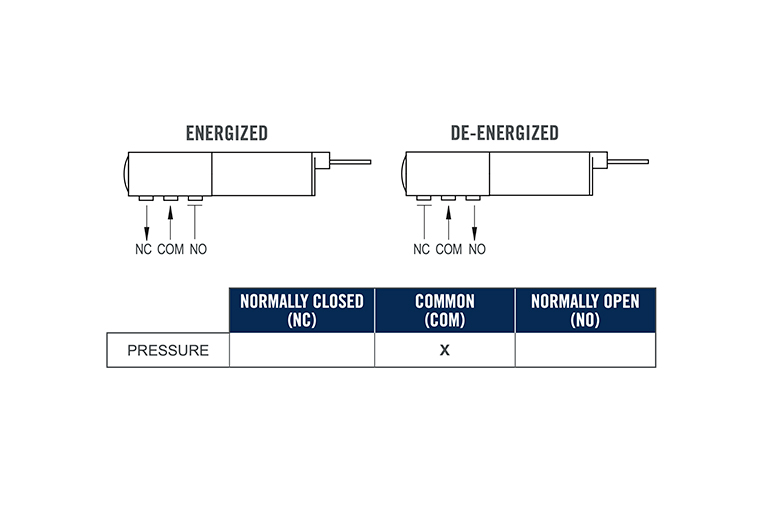

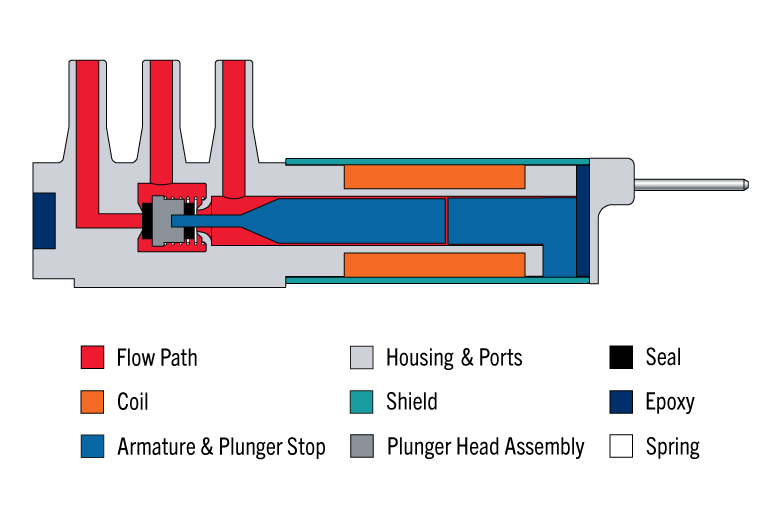

Cross Section Views
Plug-In Configuration. With fluidic ports buried into the mating manifold, the plug-in-style reduces space and enables design flexibility for complex fluidic circuits where multiple valves are required in the smallest space possible. Plug one port and the valve will also act as 2-way normally open or closed valve.

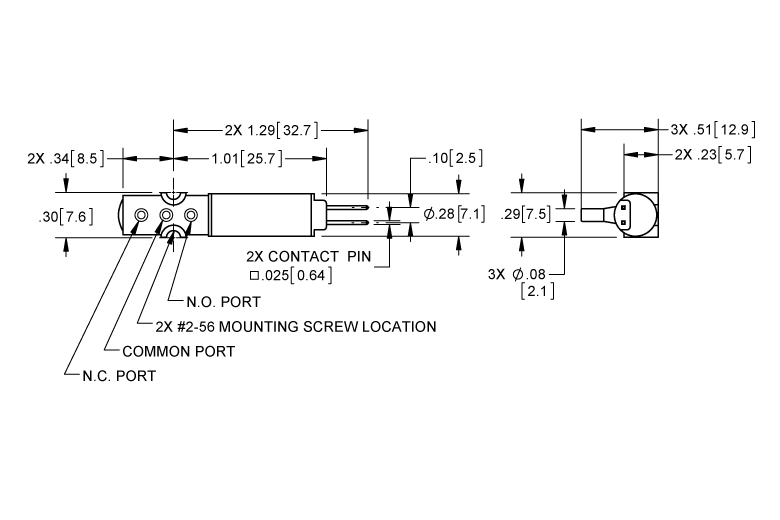

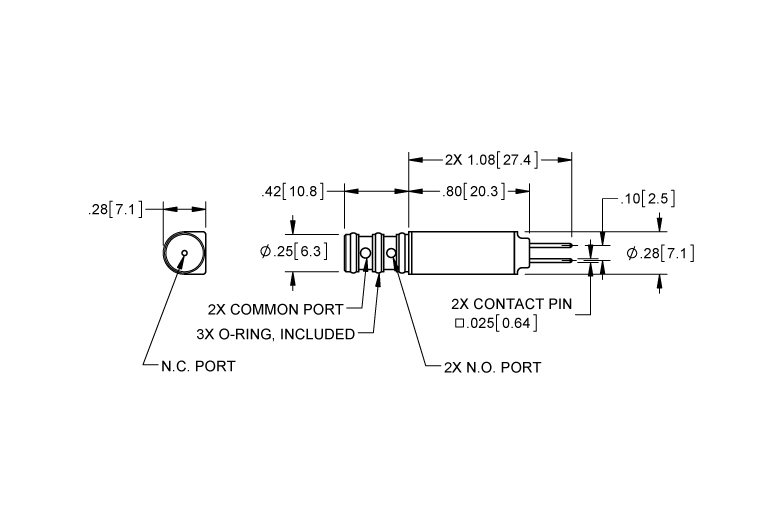

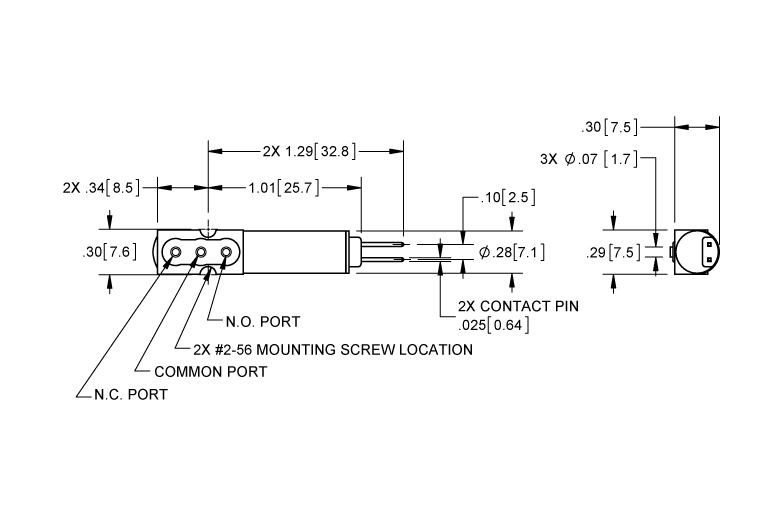

Dimensional Views
Plug-In Configuration
This image is for reference only. All dimensions are in inches [millimeters].

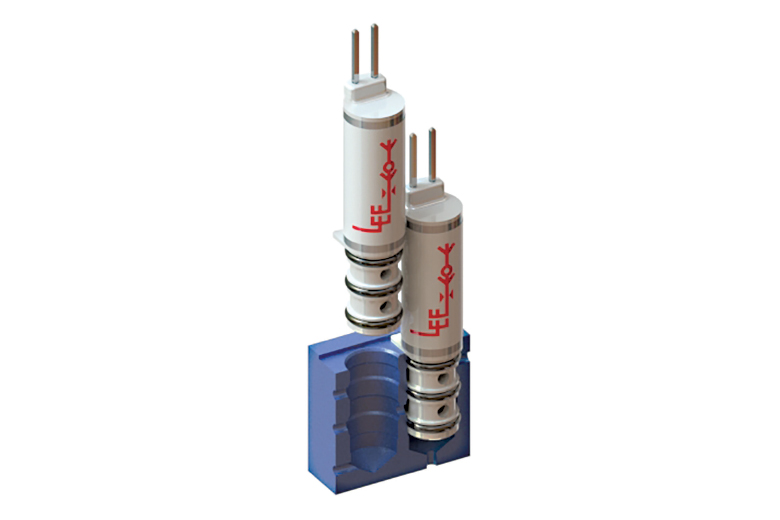

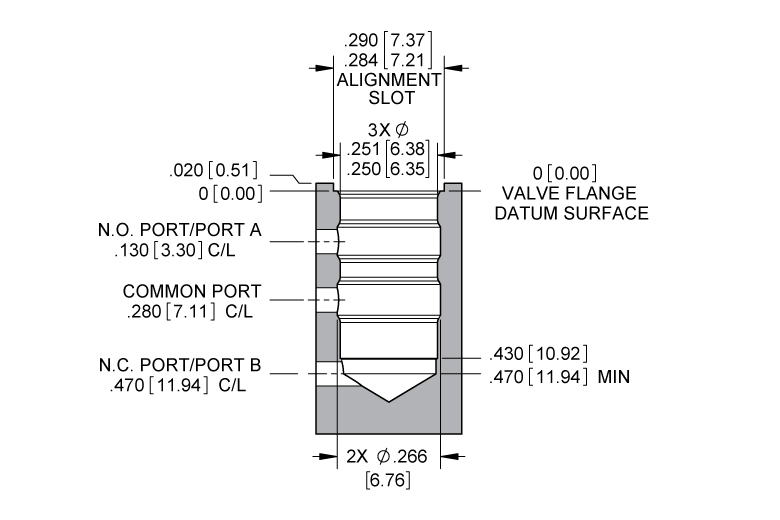

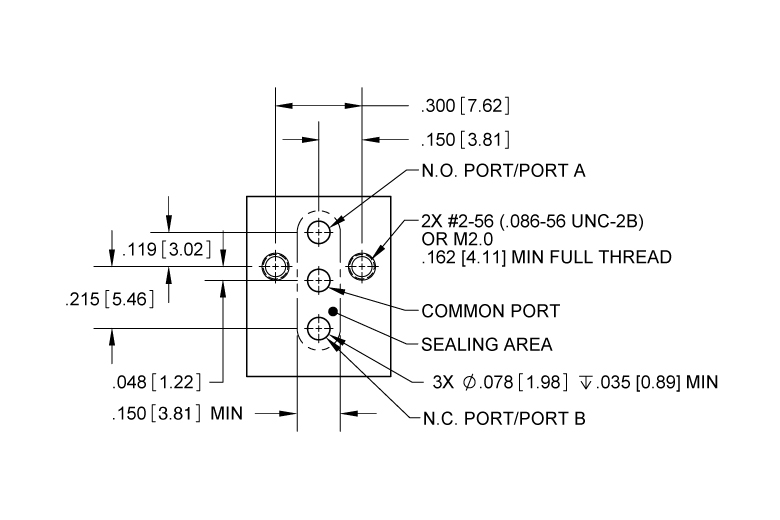

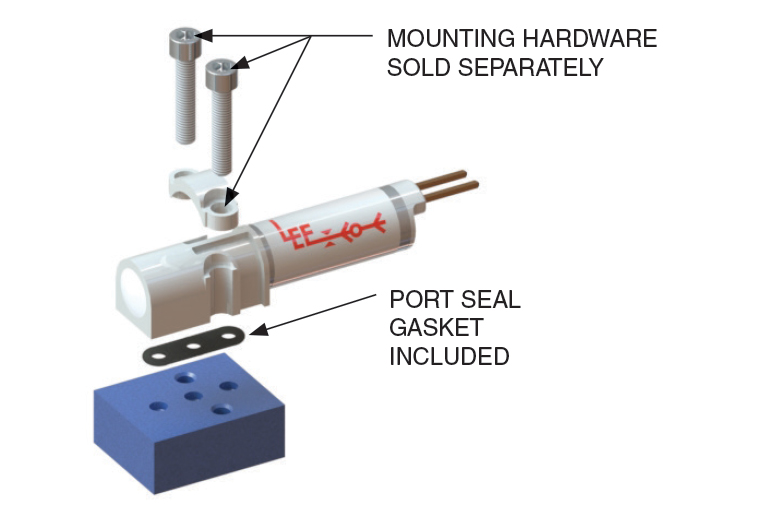

Mounting Details
Plug-In Configuration
This image is for reference only. All dimensions are in inches [millimeters].
Reference drawing number LCFX0300100B for complete specifications.
To manufacture this mating boss, we recommend using the TTTA0000180B cutting tool.

Part Numbers & Specifications

This table below contains the part numbers and technical specifications for this product. If you have specific questions, need a quote, or would like to request a handbook or drawing, click the red request button in the column on the far right.

Part Numbers & Specifications
Filter Part Numbers
CONFIGURATION
VOLTAGE (Vdc)
PART NUMBER
CONFIGURATION
VOLTAGE (Vdc)
LOHM RATE1 (Cv) OPERATING PRESSURE:
SUPPLY2
(psig) 		OPERATING PRESSURE:
MAX DIFFERENTIAL2
(psid) 		POWER CONSUMPTION (mW) Request Information
LHQA0511220H Plug In 5 2000 Lohms (0.01) Vacuum - 45 15 900 Request
LHQA1211220H Plug In 12 2000 Lohms (0.01) Vacuum - 45 15 900 Request
LHQA2411220H Plug In 24 2000 Lohms (0.01) Vacuum - 45 15 900 Request
LHQA0521220H Face Mount 5 2000 Lohms (0.01) Vacuum - 45 15 900 Request
LHQA1221220H Face Mount 12 2000 Lohms (0.01) Vacuum - 45 15 900 Request
LHQA2421220H Face Mount 24 2000 Lohms (0.01) Vacuum - 45 15 900 Request
LHQA0531220H Soft Tube Ported 5 2000 Lohms (0.01) Vacuum - 45 15 900 Request
LHQA1231220H Soft Tube Ported 12 2000 Lohms (0.01) Vacuum - 45 15 900 Request
LHQA2431220H Soft Tube Ported 24 2000 Lohms (0.01) Vacuum - 45 15 900 Request
Clear Filters
Unless otherwise indicated, listed specifications are on air at 70°F (21°C).
1Reference the flow curve under the product information tab for flow rate at varying pressures.
2Our standard 3-port valves are designed for unidirectional flow, where the highest absolute pressure should be maintained at the common port (C). Bidirectional and reverse-flow valves are also available upon request.

Installation & Accessories

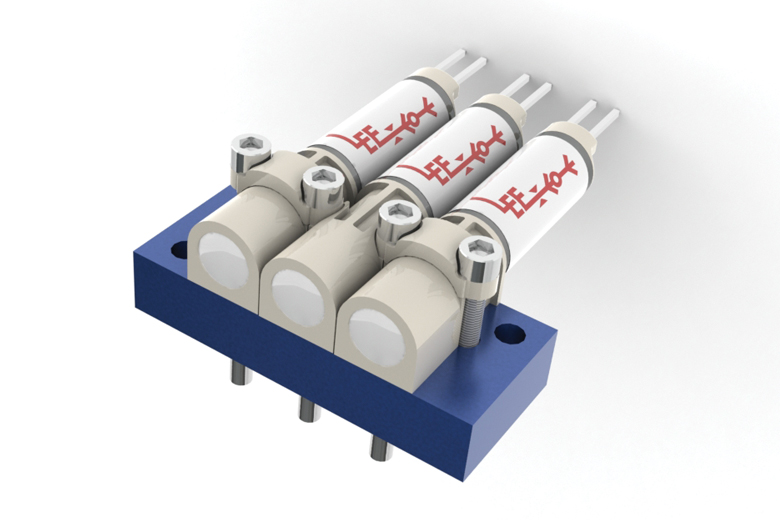

Accessories View

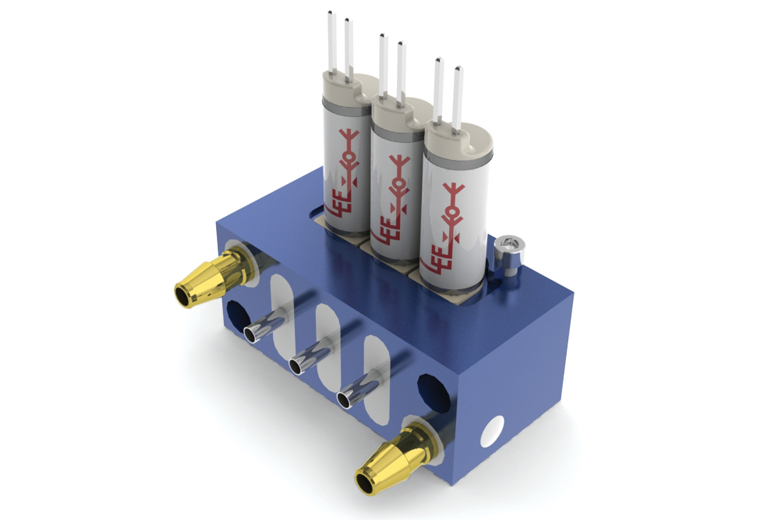

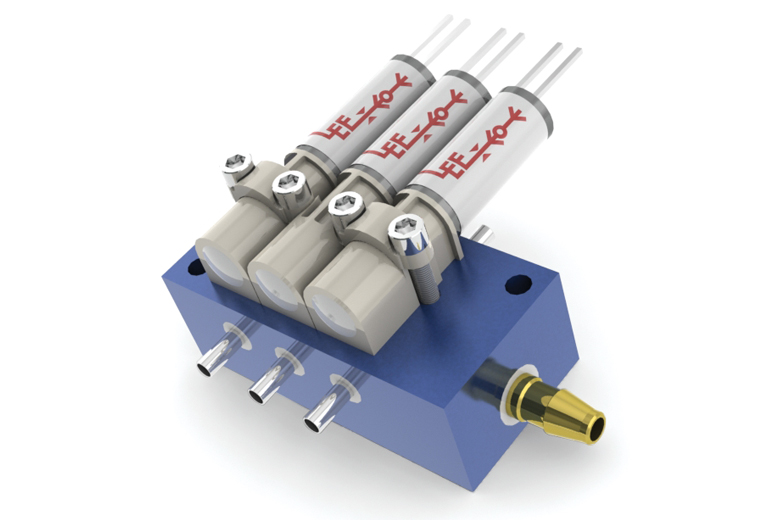

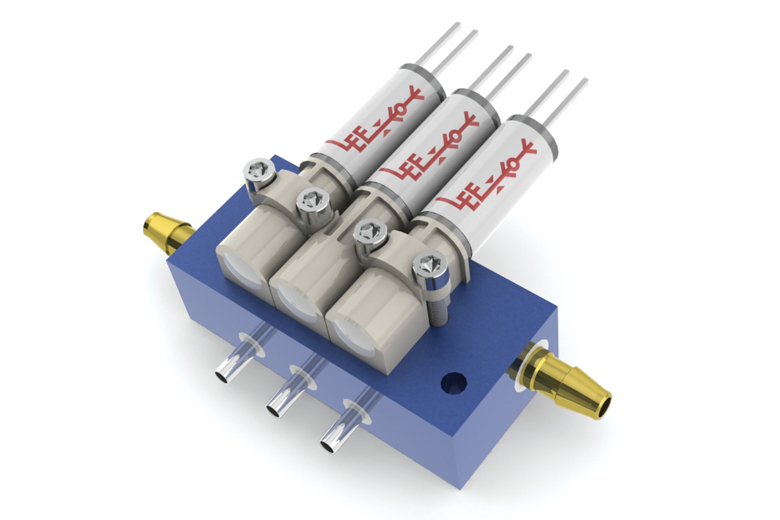

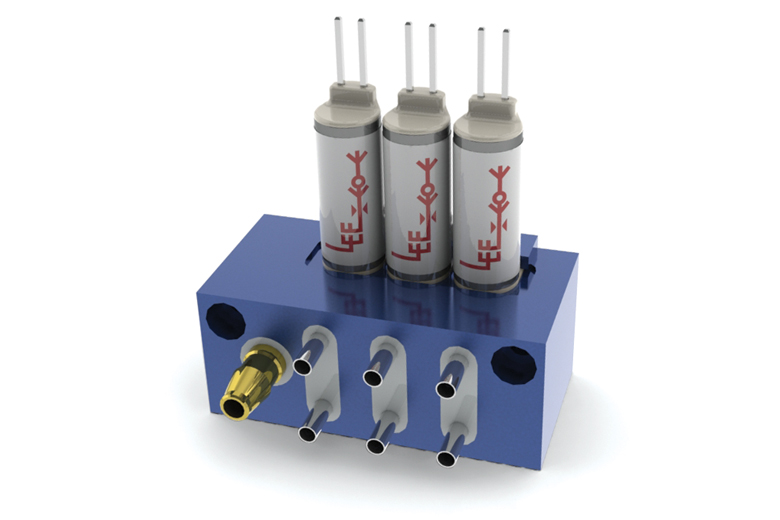

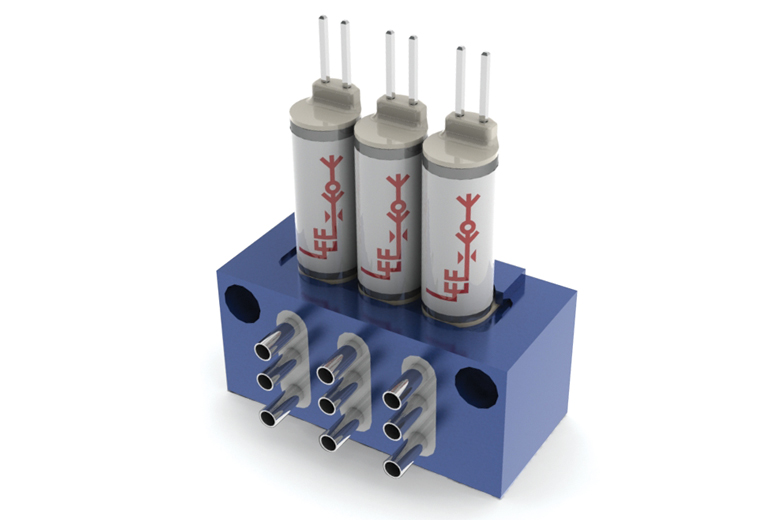

3D Rendering of LFMX0510413B with three plug-in valves installed. Please note that valves are not included with the purchase of standard manifolds.
Replacement Parts & Accessories
CONFIGURATION PART NUMBER DESCRIPTION
Plug In LHDX0526050A Boss Plug (POM with FKM O-rings)
Plug In LHWX0218030A Replacement O-ring (FKM)
Plug In LLWX0307140A Retention Bracket, 1x
Plug In LLWX0307130A Retention Bracket, 3x
Plug In LLWX0307120A Retention Bracket, 8x
Plug In LHWX0503010A Screw, Socket Head Cap, 0.086" #2-56 x 0.250" Stainless Steel
Plug In LFMX0503800A1 Manifold, 1x, Individual Outlet Ports, PMMA
Plug In LFMX0522450B1 Manifold, 1x, Individual Outlet Ports, Aluminum
Plug In LFMX0510413B1 Manifold, 3x, Individual Ports, Aluminum
Plug In LFMX0510418B1 Manifold, 8x, Individual Ports, Aluminum
Plug In LFMX0510423B1,2 Manifold, 3x, Common Port Header, Individual NC & NO Ports, Aluminum
Plug In LFMX0510428B1,2 Manifold, 8x, Common Port Header, Individual NC & NO Ports, Aluminum
Plug In LFMX0510433B1,2 Manifold, 3x, NC & NO Headers, Individual Common Ports, Aluminum
Plug In LFMX0510438B1,2 Manifold, 8x, NC & NO Headers, Individual Common Ports, Aluminum
Face Mount LHWX0218000A Gasket (SI)
Face Mount LHWX0218010A Gasket (FKM)
Face Mount LHDX0307130A Mounting Screw Support, 2x, PBT
Face Mount LHDX0307140A Mounting Screw Support, 1x, PBT
Face Mount LHWX0503100A Screw, Socket Head Cap, 0.086" #2-56 x 0.375" Stainless Steel
Face Mount LHWX0213420A1 Screw, Socket Head Cap, 0.086" #2-56 x 0.438" (7/16") Stainless Steel
Face Mount LFMX0507200A1 Manifold, 1x, Individual Outlet Ports, Aluminum
Face Mount LFMX0510513B1 Manifold, 3x, Individual Ports, Aluminum
Face Mount LFMX0510518B1 Manifold, 8x, Individual Ports, Aluminum
Face Mount LFMX0510523B1,2 Manifold, 3x, Common Port Header, Individual NC & NO Ports, Aluminum
Face Mount LFMX0510528B1,2 Manifold, 8x, Common Port Header, Individual NC & NO Ports, Aluminum
Face Mount LFMX0510533B1,2 Manifold, 3x, NC & NO Headers, Individual Common Ports, Aluminum
Face Mount LFMX0510538B1,2 Manifold, 8x, NC & NO Headers, Individual Common Ports, Aluminum
Ported LHWX0320090A Port Plug
Ported LHWX0503100A Screw, Socket Head Cap, 0.086" #2-56 x 0.375" Stainless Steel
Ported LLWX0360120A Tubing, 0.066" ID, 1/8"OD, 6' Long, Polyurethane
Universal All Styles LHWX0605450A Lead Wire Connector, 6" Long
1Several standard manifolds are available to ease prototype setup. They are available in mounting denominations of single valve (1x), three valves (3x) and eight valves (8x). Combine these denominations or plug unused ports to configure the setup for your specific application. Manifold part numbers include the manifold and secondary retention bracket only. All solenoid valves are sold separately. Alternate materials and customized manifold designs are available upon request.
2For use only with valves rated to 1100 Lohms or higher.

CAD Envelopes

Resources

Get in touch

Questions?

From plugs to solenoid valves, there’s a vast array of products that The Lee Company can offer. If you’d like to discuss the best solution for your specific application or to learn more about our capabilities, use-cases, or quality standards, contact your local Lee sales engineer.

Please provide your information to access the content.

Thank You.

Your download has started.

Request Information for Part #

We’re always ready to be your engineering partner. Fill out this form below so we can provide the solution you need.

Thank you for your inquiry.

We have received your inquiry and a member of our team will be in contact shortly to provide more information. Thank you for contacting The Lee Company!

The Lee Company has developed the Lohm Laws for defining and measuring resistance to fluid flow. The Lohm is defined such that 1 Lohm will flow 100 GPM of water with a pressure drop of 25 psi at a temperature of 80°F.

Lohms for Liquids Lohms for Gases
