Solenoid Valves

LHL Series Latching 3-Way Control Solenoid Valve

This small (7 mm), low power, 3/2, latching solenoid valve is ideal for directional control of gases or piloting samples in battery-operated, heat sensitive pneumatic applications. Thanks to its magnetically latching design, the valve will hold its flow state without power and only requires a momentary electrical pulse to switch state. With consistent, extremely reliable performance and low leakage, this valve offers high value across its cycle life. Each valve is customizable and 100% tested to ensure performance.

Contact a Lee Sales Engineer Find Another Product
Key Product Facts
  • Latching Design:Holds latched state without power
  • Ultra-Low Power & Low Heat:5.5 mJ / switch
  • Lightweight:4.5 grams
  • Lohm Rate:1100 Lohms (Cv = 0.018)
  • Operating Pressure:Vacuum – 45 psig, 15 psid

Product Information

General Specifications
Characteristic Specification
Operating Pressure Vac - 45 psig; 15 psid Max
Leakage < 50 SµLPM
Cycle Life1 10 M Cycles Min
Recommended Filtration 35 Microns or Finer
Response Time2 10 - 30 ms Max
Operating Temperature 40°F to 120°F (4°C to 40°C)
Max Internal Coil Temperature3 225°F (107°C)
Storage Conditions Temperature: -40°F to 175°F (-40°C to 80°C)
Relative Humidity: 85% Max, Non-Condensing
Weight < 4.5 grams
Internal Volume Plug-In: 40 µl
Face Mount: 72 µl
Ported: 77 µl
Unless otherwise indicated, listed specifications are based on 15 psi air, 70°F.
1Cycle life is dependent on system conditions and may vary by application.
2Response times are application dependent.
3To ensure solenoid coil temperatures remain within specification, duty cycle limitations may be required. Contact The Lee Company for recommendations specific to your application. Magnetically latching valves require drive circuitry capable of reversing the polarity to their electrical pins to provide bi-directional current flow. Refer to to the Latching Valve Circuit section on our Drive Circuits page for additional information and example circuitry.
WETTED MATERIALS
Component Material
Housing PBT
Seal Silicone or FKM
Plunger Head1 PPS or PPA
Armature & Plunger Stop 430 Stainless Steel or FeCr Alloy
Spring 316 Stainless Steel
Epoxy is also a wetted material on all LHL Series valves.
The O-rings on all plug-in valves are FKM.
1PPS for Valves With a Silicone Seal, PPA for FKM Valves

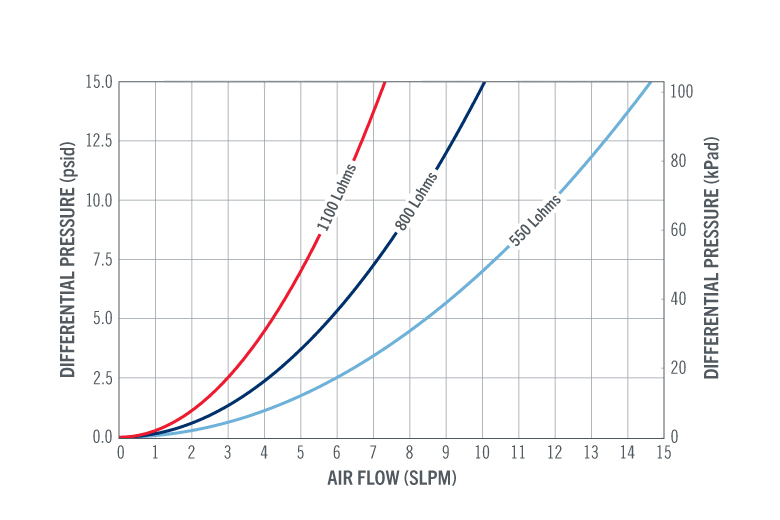

Flow Curve
Flow Characteristics on Air at 70°F (21°C)

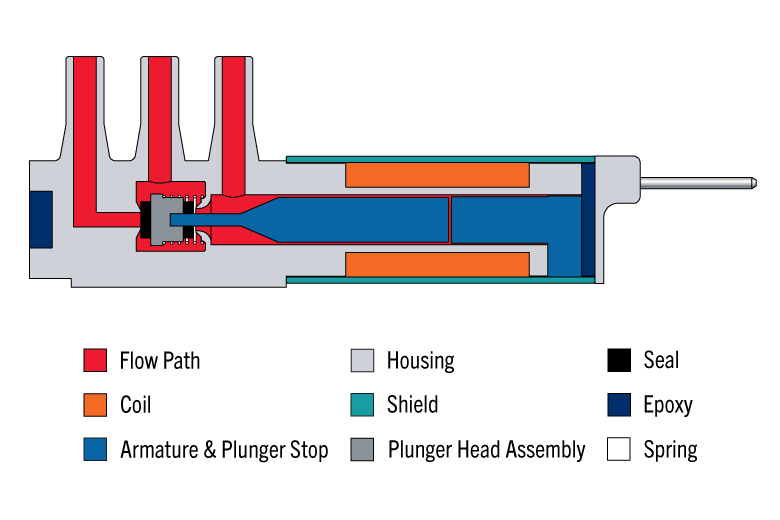

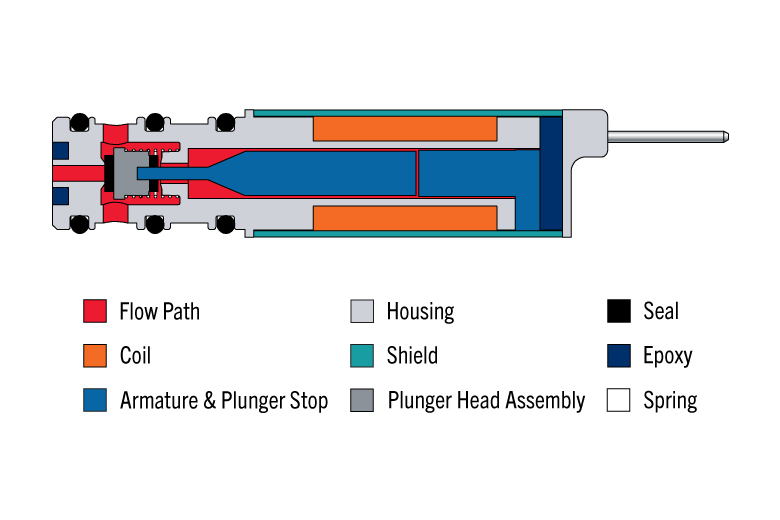

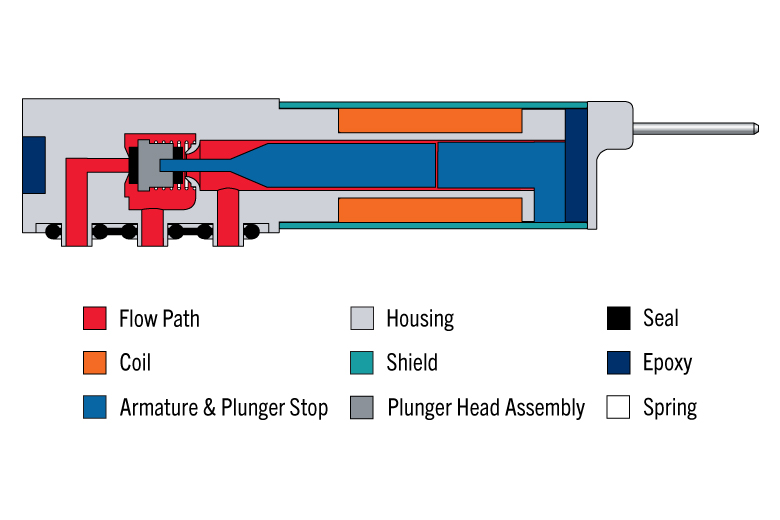

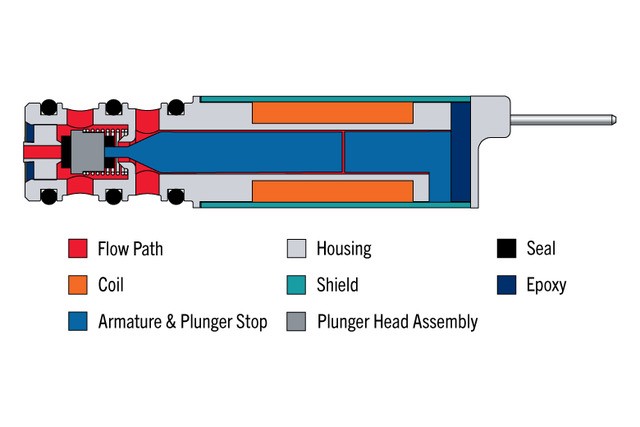

Cross Section Views
Face Mount Configuration. With the fluidic ports surface mounted via a one-piece gasket, the face mount style lends itself easily to machined or molded manifolds, enabling multiple valves to be mounted in an incredibly small package. Plug one port and the valve will also act as 2-way normally ope n or closed valve.

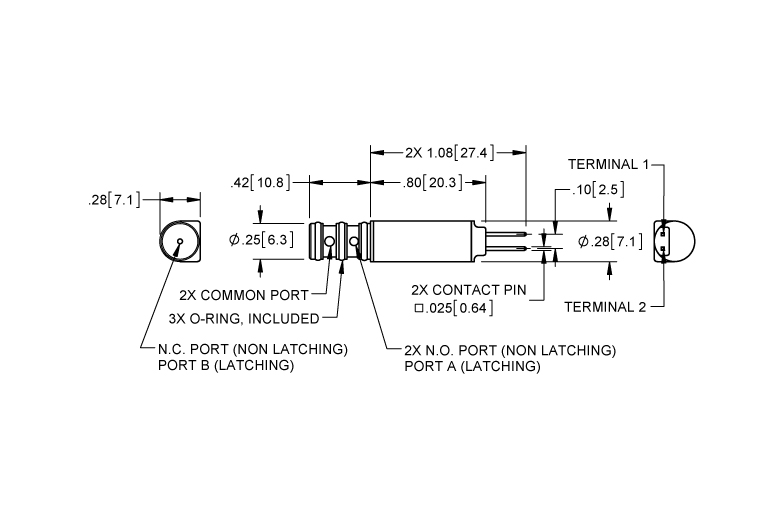

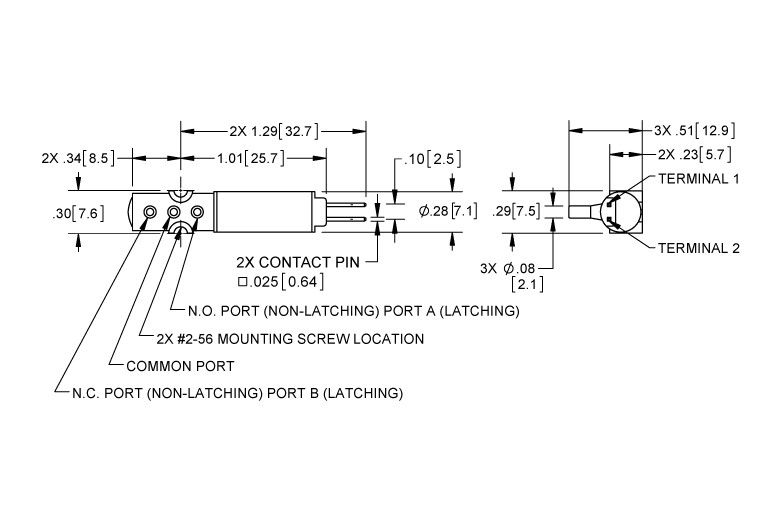

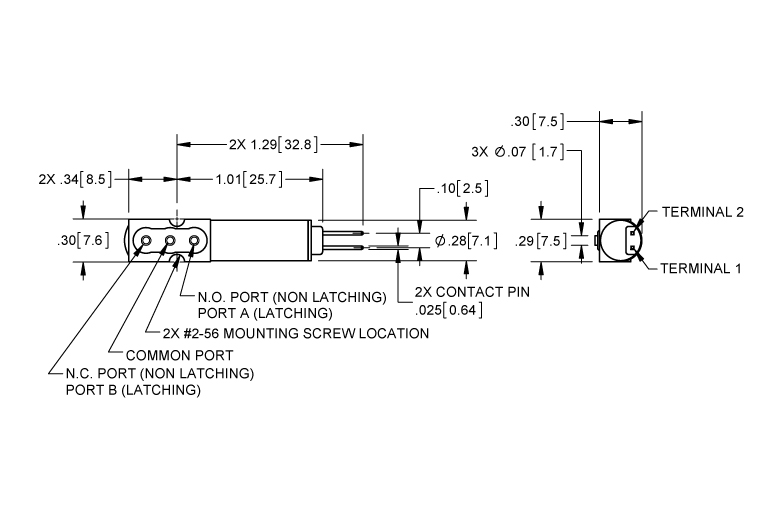

Dimensional Views
Plug-In Configuration
This image is for reference only. All dimensions are in inches [millimeters].

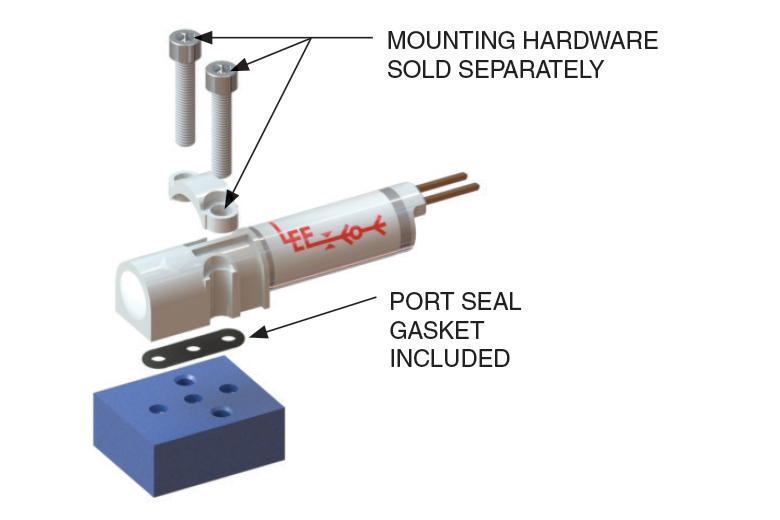

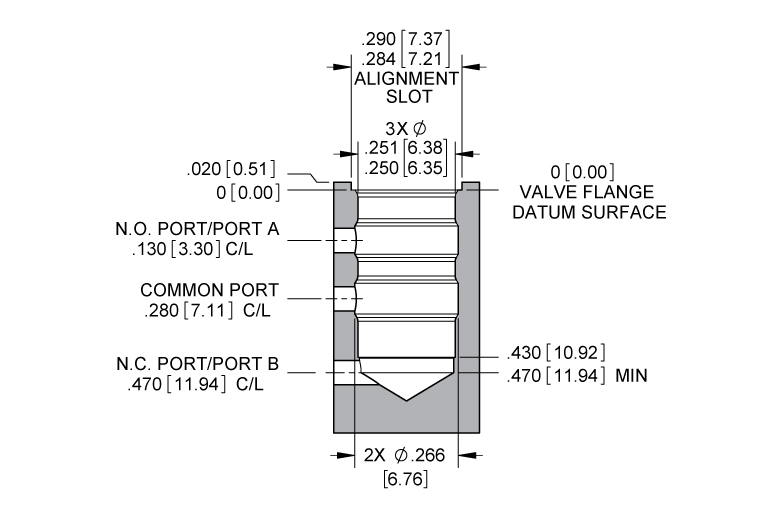

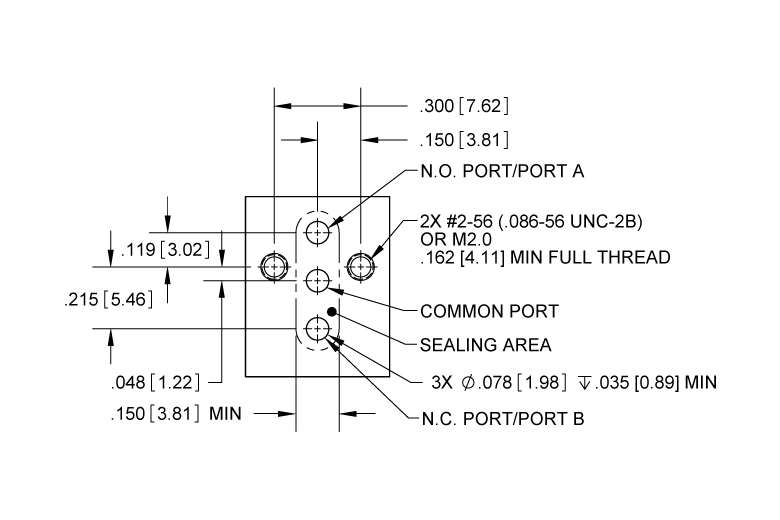

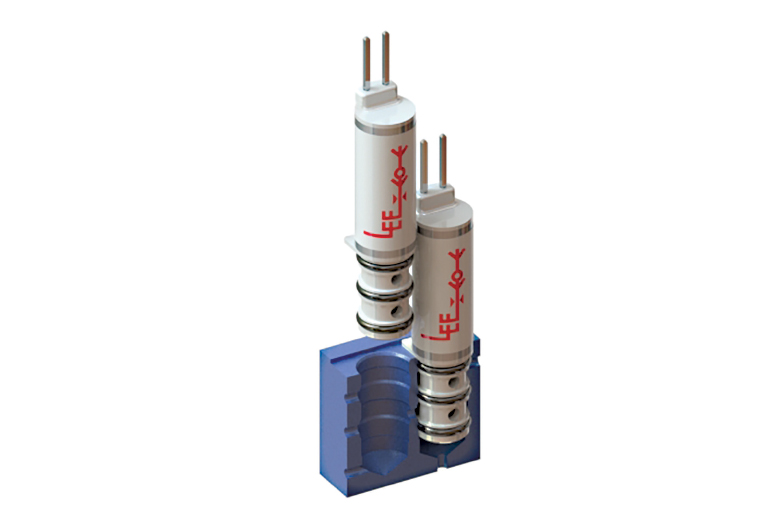

Mounting Details
Plug-In Configuration
This image is for reference only. All dimensions are in inches [millimeters].
Reference drawing number LCFX0300100B for complete specifications.
To manufacture this mating boss, we recommend using the TTTA0000180B cutting tool.

Part Numbers & Specifications

This table below contains the part numbers and technical specifications for this product. If you have specific questions, need a quote, or would like to request a handbook or drawing, click the red request button in the column on the far right.

Part Numbers & Specifications
Filter Part Numbers
CONFIGURATION
VOLTAGE1 (Vdc)
SEAL MATERIAL
PART NUMBER
CONFIGURATION
VOLTAGE1 (Vdc)
LOHM RATE2 (Cv) OPERATING PRESSURE:
SUPPLY (psig) 		OPERATING PRESSURE:
MAX DIFFERENTIAL3 (psid) 		POWER CONSUMPTION4
(mJ/Switch)
SEAL MATERIAL
PLUNGER HEAD
MATERIAL 		ARMATURE & PLUNGER
STOP MATERIAL 		Request Information
LHLA0511111H Plug In 5 1100 Lohms (0.018) Vacuum - 45 15 5.5 Silicone PPS 430 Stainless Steel Request
LHLA1211111H Plug In 12 1100 Lohms (0.018) Vacuum - 45 15 5.5 Silicone PPS 430 Stainless Steel Request
LHLA0511211H Plug In 5 1100 Lohms (0.018) Vacuum - 45 15 5.5 FKM PPA 430 Stainless Steel Request
LHLA1211211H Plug In 12 1100 Lohms (0.018) Vacuum - 45 15 5.5 FKM PPA 430 Stainless Steel Request
LHLA0511355D Plug In 5 550 Lohms (0.036) Vacuum - 45 15 28 Silicone PPS FeCr Alloy Request
LHLA1211355D Plug In 12 550 Lohms (0.036) Vacuum - 45 15 35 Silicone PPS FeCr Alloy Request
LHLA0521111H Face Mount 5 1100 Lohms (0.018) Vacuum - 45 15 5.5 Silicone PPS 430 Stainless Steel Request
LHLA1221111H Face Mount 12 1100 Lohms (0.018) Vacuum - 45 15 5.5 Silicone PPS 430 Stainless Steel Request
LHLA0521211H Face Mount 5 1100 Lohms (0.018) Vacuum - 45 15 5.5 FKM PPA 430 Stainless Steel Request
LHLA1221211H Face Mount 12 1100 Lohms (0.018) Vacuum - 45 15 5.5 FKM PPA 430 Stainless Steel Request
LHLA0521380D Face Mount 5 800 Lohms (0.025) Vacuum - 45 15 28 Silicone PPS FeCr Alloy Request
LHLA1221380D Face Mount 12 800 Lohms (0.025) Vacuum - 45 15 35 Silicone PPS FeCr Alloy Request
LHLA0531111H Ported 5 1100 Lohms (0.018) Vacuum - 45 15 5.5 Silicone PPS 430 Stainless Steel Request
LHLA1231111H Ported 12 1100 Lohms (0.018) Vacuum - 45 15 5.5 Silicone PPS 430 Stainless Steel Request
LHLA0531211H Ported 5 1100 Lohms (0.018) Vacuum - 45 15 5.5 FKM PPA 430 Stainless Steel Request
LHLA1231211H Ported 12 1100 Lohms (0.018) Vacuum - 45 15 5.5 FKM PPA 430 Stainless Steel Request
LHLA0531380D Ported 5 800 Lohms (0.025) Vacuum - 45 15 28 Silicone PPS FeCr Alloy Request
LHLA1231380D Ported 12 800 Lohms (0.025) Vacuum - 45 15 35 Silicone PPS FeCr Alloy Request
Clear Filters
Unless otherwise indicated, listed specifications are on air at 70°F (21°C).
1The valve will switch to and remain in the state indicated when a 10-30 ms electrical pulse is applied at the rated voltage and polarity. Magnetically latching valves require drive circuitry capable of reversing the polarity to their electrical pins to provide bi-directional current flow. Refer to to the Latching Valve Circuit section on our Drive Circuits page for additional information and example circuitry.
2Reference the flow curve under the product information tab for flow rate at varying pressures.
2Reference the flow curve under the product information tab for flow rate at varying pressures.

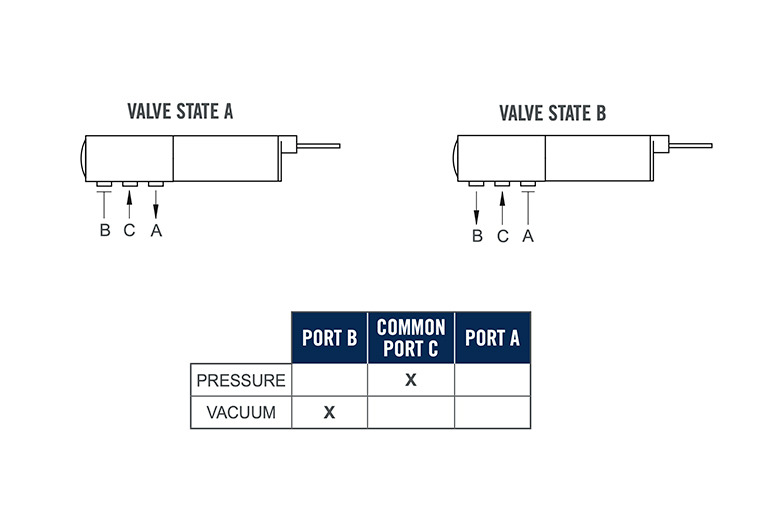

3Maximum differential across ports. Our standard 3-port valves are designed for unidirectional flow, where the highest absolute pressure should be maintained at the common port (C).
4Energy consumed per switch when actuated for 10 ms at rated voltage.

Installation & Accessories

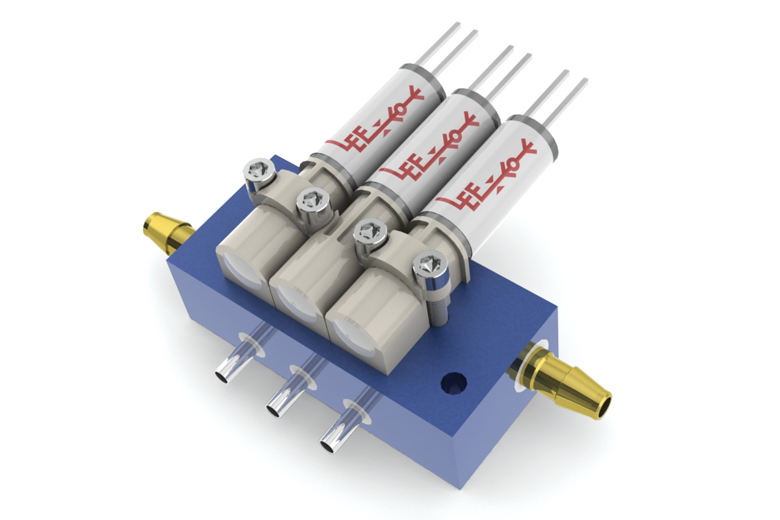

Accessories View

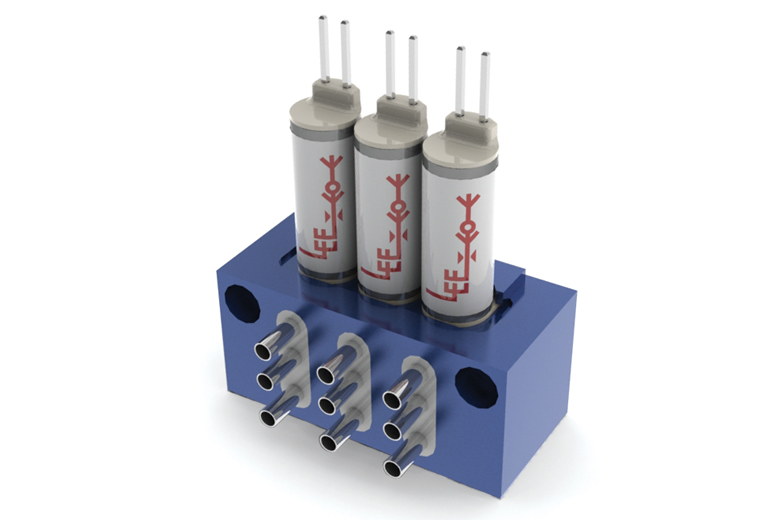

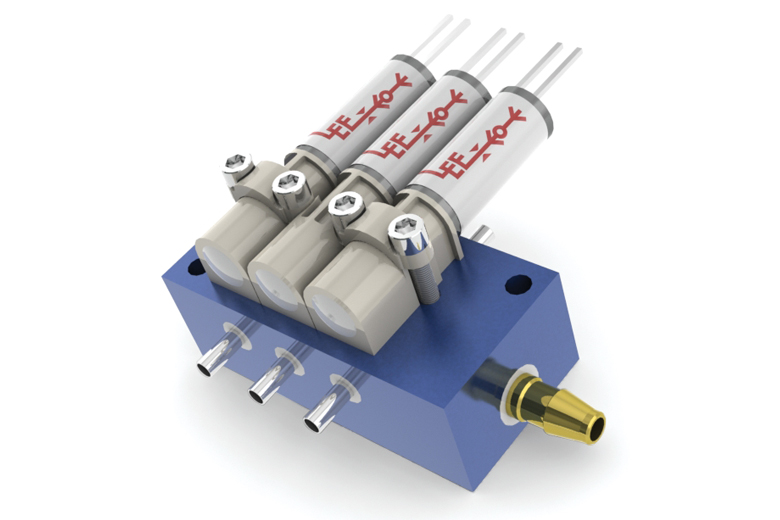

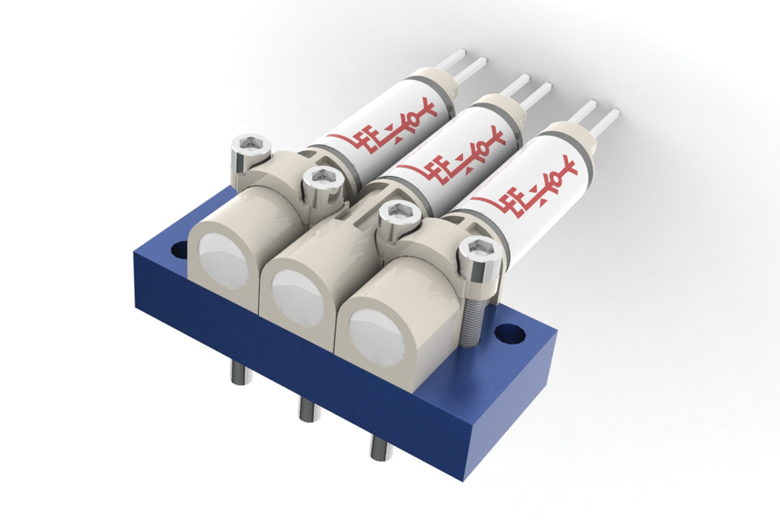

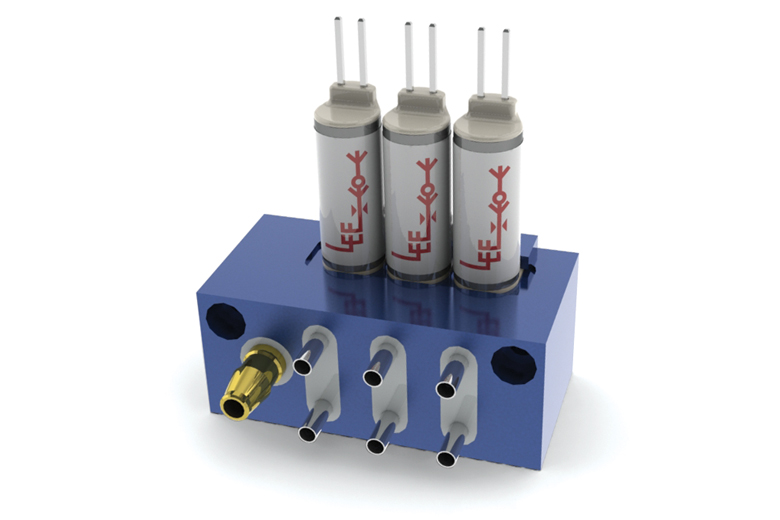

3D Rendering of LFMX0510413B with three plug-in valves installed. Please note that valves are not included with the purchase of standard manifolds.
Replacement Parts & Accessories
CONFIGURATION PART NUMBER DESCRIPTION
Plug In LHDX0526050A Boss Plug (POM with FKM O-rings)
Plug In LHWX0218030A Replacement O-ring (FKM)
Plug In LLWX0307140A Retention Bracket, 1x
Plug In LLWX0307130A Retention Bracket, 3x
Plug In LLWX0307120A Retention Bracket, 8x
Plug In LHWX0503010A Screw, Socket Head Cap, 0.086" #2-56 x 0.250" Stainless Steel
Plug In LFMX0503800A1 Manifold, 1x, Individual Outlet Ports, PMMA
Plug In LFMX0522450B1 Manifold, 1x, Individual Outlet Ports, Aluminum
Plug In LFMX0510413B1 Manifold, 3x, Individual Ports, Aluminum
Plug In LFMX0510418B1 Manifold, 8x, Individual Ports, Aluminum
Plug In LFMX0510423B1,2 Manifold, 3x, Common Port Header, Individual NC & NO Ports, Aluminum
Plug In LFMX0510428B1,2 Manifold, 8x, Common Port Header, Individual NC & NO Ports, Aluminum
Plug In LFMX0510433B1,2 Manifold, 3x, NC & NO Headers, Individual Common Ports, Aluminum
Plug In LFMX0510438B1,2 Manifold, 8x, NC & NO Headers, Individual Common Ports, Aluminum
Face Mount LHWX0218000A Gasket (SI)
Face Mount LHWX0218010A Gasket (FKM)
Face Mount LHDX0307130A Mounting Screw Support, 2x, PBT
Face Mount LHDX0307140A Mounting Screw Support, 1x, PBT
Face Mount LHWX0503100A Screw, Socket Head Cap, 0.086" #2-56 x 0.375" Stainless Steel
Face Mount LHWX0213420A1 Screw, Socket Head Cap, 0.086" #2-56 x 0.438" (7/16") Stainless Steel
Face Mount LFMX0507200A1 Manifold, 1x, Individual Outlet Ports, Aluminum
Face Mount LFMX0510513B1 Manifold, 3x, Individual Ports, Aluminum
Face Mount LFMX0510518B1 Manifold, 8x, Individual Ports, Aluminum
Face Mount LFMX0510523B1,2 Manifold, 3x, Common Port Header, Individual NC & NO Ports, Aluminum
Face Mount LFMX0510528B1,2 Manifold, 8x, Common Port Header, Individual NC & NO Ports, Aluminum
Face Mount LFMX0510533B1,2 Manifold, 3x, NC & NO Headers, Individual Common Ports, Aluminum
Face Mount LFMX0510538B1,2 Manifold, 8x, NC & NO Headers, Individual Common Ports, Aluminum
Ported LHWX0320090A Port Plug
Ported LHWX0503100A Screw, Socket Head Cap, 0.086" #2-56 x 0.375" Stainless Steel
Ported LLWX0360120A Tubing, 0.066" ID, 1/8"OD, 6' Long, Polyurethane
Universal All Styles LHWX0605450A Lead Wire Connector, 6" Long
1Several standard manifolds are available to ease prototype setup. They are available in mounting denominations of single valve (1x), three valves (3x) and eight valves (8x). Combine these denominations or plug unused ports to configure the setup for your specific application. Manifold part numbers include the manifold and secondary retention bracket only. All solenoid valves are sold separately. Alternate materials and customized manifold designs are available upon request.
2For use only with valves rated to 1100 Lohms or higher.

CAD Envelopes

Resources

Get in touch

Questions?

From plugs to solenoid valves, there’s a vast array of products that The Lee Company can offer. If you’d like to discuss the best solution for your specific application or to learn more about our capabilities, use-cases, or quality standards, contact your local Lee sales engineer.

Please provide your information to access the content.

Thank You.

Your download has started.

Request Information for Part #

We’re always ready to be your engineering partner. Fill out this form below so we can provide the solution you need.

Thank you for your inquiry.

We have received your inquiry and a member of our team will be in contact shortly to provide more information. Thank you for contacting The Lee Company!

The Lee Company has developed the Lohm Laws for defining and measuring resistance to fluid flow. The Lohm is defined such that 1 Lohm will flow 100 GPM of water with a pressure drop of 25 psi at a temperature of 80°F.

Lohms for Liquids Lohms for Gases
