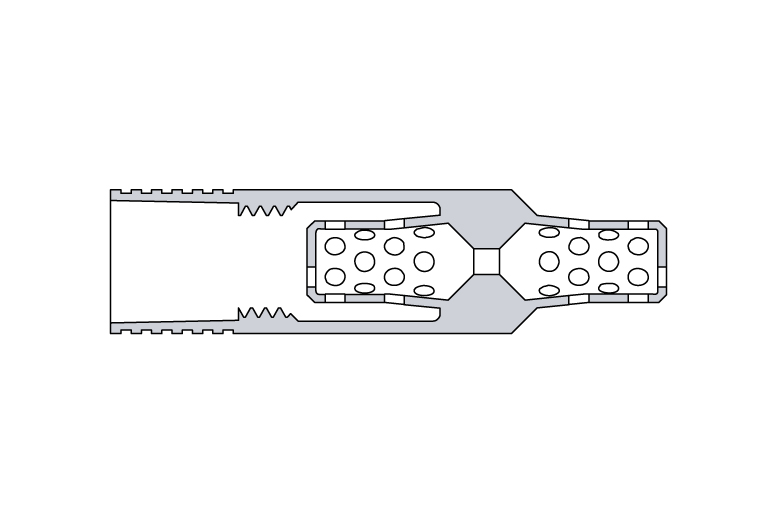

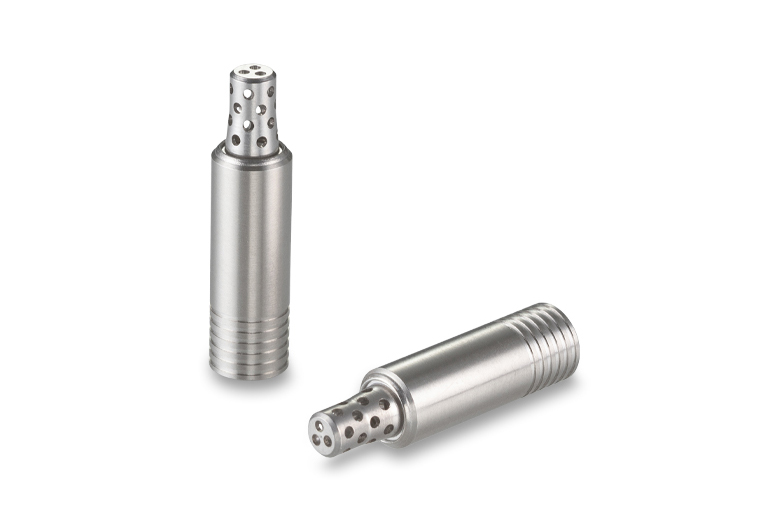

This single-orifice flow restrictor provides accurate, screened, bidirectional flow in the 90 to 200 Lohm range. The integral screens are machined and drilled from bar stock for maximum strength and erosion resistance. Due to its rugged construction, this restrictor can readily withstand the high power dissipation that is often associated with high flow, or low Lohm applications. The Lee High Watt Jet is rated for 3000 psid working pressure. This restrictor is available with a +/- 5% Lohm rate tolerance.
| Characteristic | Specification |
|---|---|
| Lohm Rate Tolerance | ± 5% |
| Maximum Working Pressure | 3000 psid |
| Nominal Weight | 4.0 grams |
| PART | MATERIAL | SPECIFICATION | HEAT TREAT |
|---|---|---|---|
| Body | 304L CRES | AMS 5647 | - |
| Pin | 15-5PH CRES | AMS 5659 | H1025 |
| Screens | 15-5PH CRES | AMS 5659 | H1025 |
| Orifice Plate | 15-5PH CRES | AMS 5659 | H1025 |
This table below contains the part numbers and technical specifications for this product. If you have specific questions, need a quote, or would like to request a handbook or drawing, click the red request button in the column on the far right.
| Part Number | Description |
|---|---|
| CUTA2810104C | Installation / Extraction Tool Set |
| JEKA2810003B | Replacement Pin |
From plugs to solenoid valves, there’s a vast array of products that The Lee Company can offer. If you’d like to discuss the best solution for your specific application or to learn more about our capabilities, use-cases, or quality standards, contact your local Lee sales engineer.
Your download has started.
We’re always ready to be your engineering partner. Fill out this form below so we can provide the solution you need.
We have received your inquiry and a member of our team will be in contact shortly to provide more information. Thank you for contacting The Lee Company!
The Lee Company has developed the Lohm Laws for defining and measuring resistance to fluid flow. The Lohm is defined such that 1 Lohm will flow 100 GPM of water with a pressure drop of 25 psi at a temperature of 80°F.
Always verify flow calculations by experiment.
