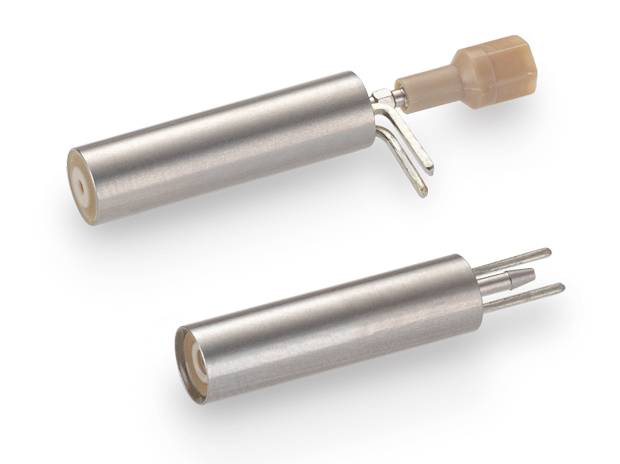

Integrated Orifice Outlet VHS® Series Solenoid Valve

This 6 mm, 2-way (2/2) solenoid valve has an integrated sapphire orifice that enables droplet dispensing in the 10 nanoliter to microliter range directly from the valve itself (no need for an additional nozzle). This outlet type is available in two different styles: the simple IO-style is easiest to flush, while the long-throw-style (LT) incorporates an internal pressure compensation bladder, allowing the droplet to retain its integrity longer and travel farther. Available with 062 MINSTAC or barbed inlets, three seal material options, and multiple orifice sizes, these valves are ideal for numerous precision dispensing applications in diagnostics and biotech, including lateral flow strip manufacturing, well plate dispensing, and bioprinting, and for dispensing coatings and sealants in industries such as semiconductor manufacturing. Each valve is customizable and 100% tested to ensure performance.

Click here to learn more about this technology

Contact a Lee Sales Engineer Find Another Product
Key Product Facts
  • Dispense Volumes:As low as 10 nL
  • High Speed:250 µs response time and up to 1 kHz operation
  • Low Internal Volume:As low as 30 µL
  • Long Cycle Life:250 M cycles min
  • Operating Pressure:Up to 120 psig

Product Information

General Performance
Characteristic Specification
Inlet Port Options1 Barb Inlet: For use with 1/32" ID flexible tubing
MINSTAC® Inlet: For use with threaded tubing assemblies and safety screens
Operating Pressure2 0 - 120 psig
Cycle Life3 250 M Cycles Min
Recommended Filtration4 12 Microns or Finer
Dispensing Frequency5 Up to 1000 Hz
Operating Temperature 40°F to 120°F (4°C to 49°C)
Max Internal Coil Temperature6 150°F (66°C)
Storage Conditions Temperature: -40°F to 175°F (-40°C to 80°C)
Relative Humidity: 85% Max, Non-Condensing
Weight < 2 grams
1Refer to our MINSTAC offerings for compatible tubing assemblies, threaded safety screens and more.
2Some models are rated for 0 - 30 psig only. Reference part number table.
3Typical cycle life on water; actual cycle life will vary depending on application conditions.
4Valve is sensitive to particles that are hard and fibrous. Larger, flexible particles, such as cells, can be qualified for applications.
5Dispensing frequency is based on water flow within the rated pressure range. Response time and dispense volume profile are drive dependent and vary depending on system parameters.
6A spike and hold drive is required for most applications. To ensure solenoid coil temperatures remain within specification, duty cycle limitations may be required. Contact The Lee Company for recommendations specific to your application.
Materials
Component Material
Seal Options EPDM, FKM, or FFKM
Armature & Plunger Stop 430 Stainless Steel or FeCR
Spring 316 Stainless Steel
Housing PEEK or PPS
Minstac Inlet Port (M) PEEK
Barb Inlet Port (P) 430 Stainless Steel or FeCR
Integrated Orifice Outlet (IO) PEEK, Sapphire
LT Integrated Orifice Outlet (LT IO) PEEK, Sapphire, & Butyl Bladder
*All inlet port types are listed above for reference but do not all apply to each valve.
Epoxy is also a wetted material on all VHS Series valves.

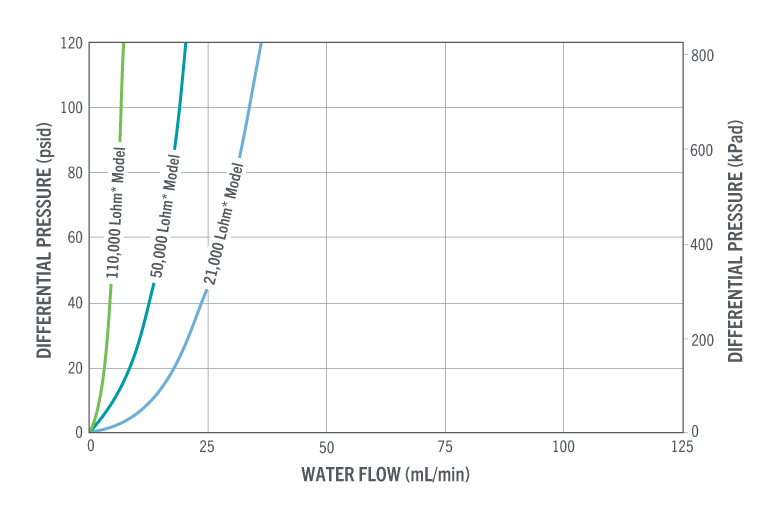

Flow Curve
* Lohm rating of each valve model is based on air performance. Curves shown above depict empirical data from actual product performance on water.

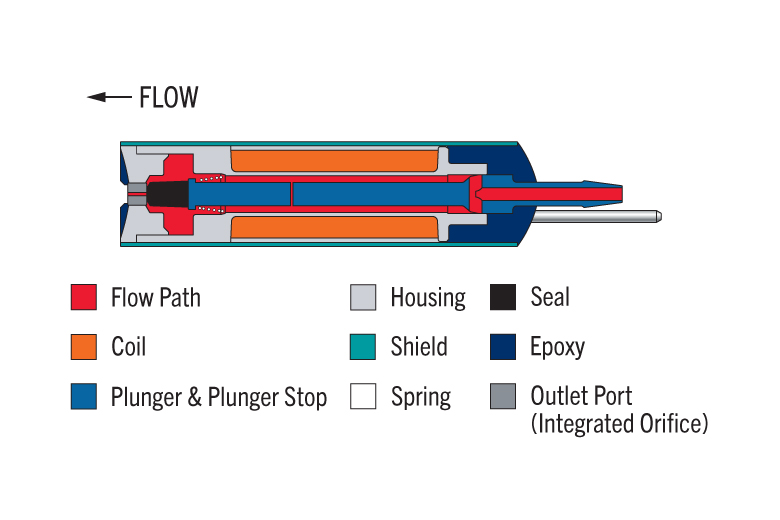

Cross Section Views

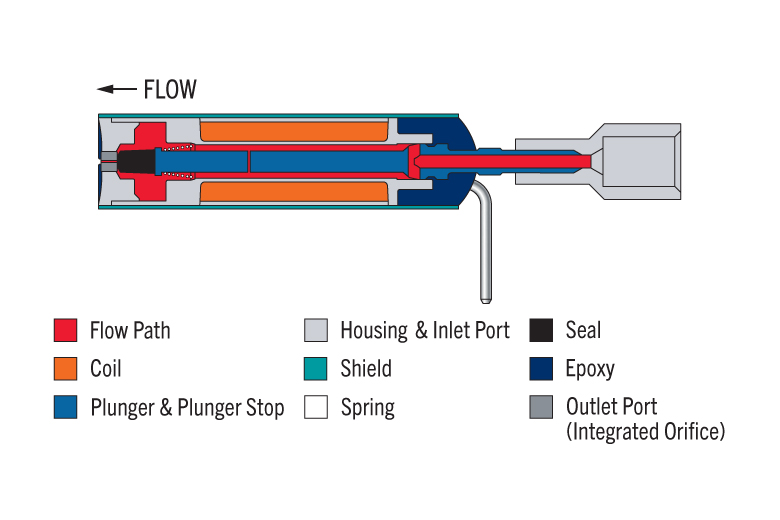

Integrated Orifice Outlet / 062 MINSTAC Inlet
Configurations M/IO, M/LT IO

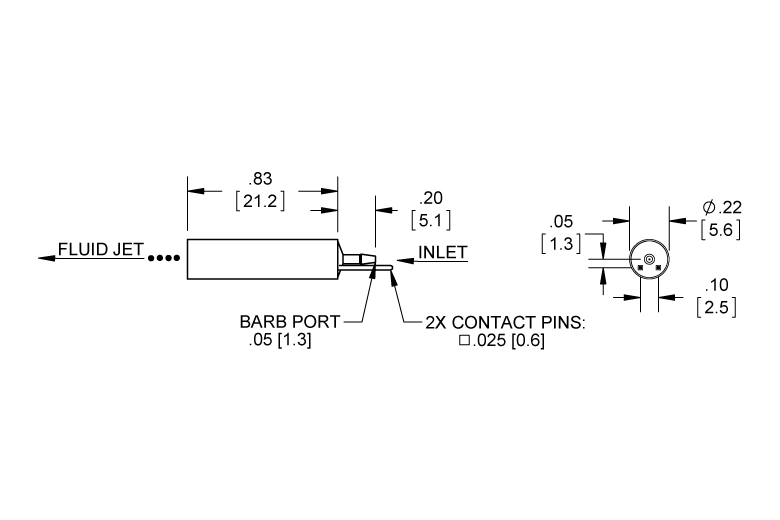

Dimensional Views

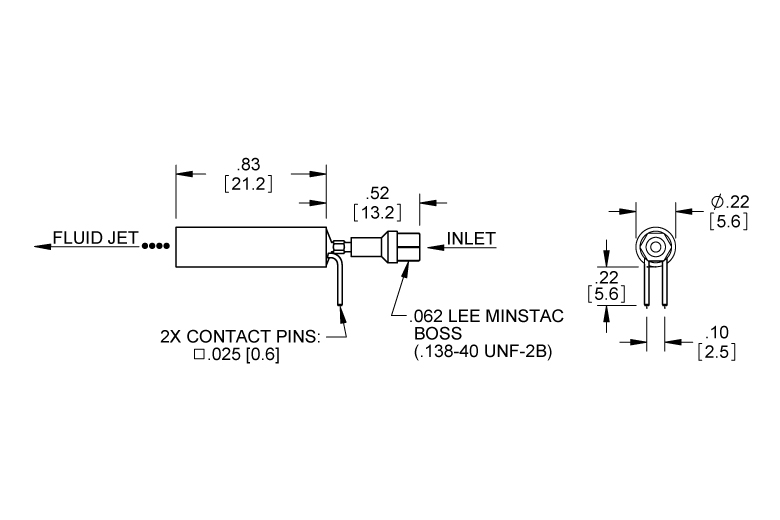

062 MINSTAC Inlet / Integrated Orifice Outlet
Configurations M/IO and M/LT IO
Integrated Orifice (IO) Outlet valves are available with either a 0.003”, a 0.005” or a 0.007” precision orifice integrated into the valve’s outlet. Each is also available in two different styles. The simple IO style is easiest to flush, while the Long Throw (LT) style incorporates an internal pressure compensation bladder. This bladder allows the droplet to retain its integrity longer, enabling it to travel farther.
This image is for reference only. All dimensions are in inches [millimeters].

Get Started

Are you ready to get started? We offer a VHS Valve Evaluation Kit (part number IKTX0322000A) for easy setup and development testing of a dispense system. All that is required is a pressurized fluid source, control signal, and a power supply.

One MINSTAC INLET/MINSTAC OUTLET VHS Series solenoid valve (24VDC, EPDM) is included, along with a spike and hold driver, nozzles, and numerous accessories. This M/M configuration allows you to quickly iterate your dispense setup with the use of various threaded 062 MINSTAC nozzles. If you’d like to test a different outlet configuration, those valves can be purchased separately from the kit and must be rated for a 24 VDC spike voltage.

What's included?
• INKX0514300A - VHS Series Valve (M/M configuration, EPDM, 24V)
• IECX0501350A - Spike and Hold Driver
• INZA4710975H - Dispense Nozzle: 062 MINSTAC, Ø .010"" Orifice
• INZA4670915K - Dispense Nozzle: 062 MINSTAC, Ø .0075"" Orifice
• INZA4650935K - Dispense Nozzle: 062 MINSTAC, Ø .005"" Orifice
• IAZA1200122K - Atomizing Nozzle: MINSTAC, 22k Lohm rate
• INMX0350000A - Safety Screen Filter: 062 MINSTAC, 12 μm
• TMDA3212950Z - Adapter: 062 MINSTAC Female to ¼-28 Flat Bottom Female
• TMDA3201950A - Adapter: 062 MINSTAC Male to Barb for 1/16"" ID Soft Tubing
• TUTC3216930L - Tubing Assembly: 062 MINSTAC, 2x Fittings, 30 cm long, 0.032"" ID
• TTTA3201243A - MINSTAC Torque Wrench
• IHWX0248120A - 24"" Lead Wire Assembly
• IHWX0290550A - Valve Mounting Clip
APPLICATION NOTES

These Application Notes provide practical guidance on how our disc pumps can be used across a variety of applications.

Part Numbers & Specifications

This table below contains the part numbers and technical specifications for this product. If you have specific questions, need a quote, or would like to request a handbook or drawing, click the red request button in the column on the far right.

Part Numbers & Specifications
Filter Part Numbers
INLET
SEAL MATERIAL
SPIKE1, HOLD
VOLTAGE* (Vdc)
CONFIGURATION3
PART NUMBER
INLET
SEAL MATERIAL
SPIKE1, HOLD
VOLTAGE* (Vdc)
MIN SPIKE DURATION (ms) OPERATING PRESSURE
(psig) 		LOHM RATE2,(Cv) INTERNAL VOLUME
(µL) 		INTEGRATED ORIFICE DIAMETER
CONFIGURATION3
Request Information
INKA2435210H 062 MINSTAC EPDM 24, 5 0.35 0-30 110,000 Lohms 35 0.003 in (0.076 mm) M/LT IO Request
INKA2455210H 062 MINSTAC EPDM 24, 5 0.35 0-30 50,000 Lohms 35 0.005 in (0.127 mm) M/LT IO Request
INKA2475210H 062 MINSTAC EPDM 24, 5 0.35 0-30 21,000 Lohms 35 0.007 in (0.178 mm) M/LT IO Request
INKA2435110H 062 MINSTAC FKM 24, 5 0.5 0-30 110,000 Lohms 35 0.003 in (0.076 mm) M/LT IO Request
INKA2455110H 062 MINSTAC FKM 24, 5 0.5 0-30 50,000 Lohms 35 0.005 in (0.127 mm) M/LT IO Request
INKA2475110H 062 MINSTAC FKM 24, 5 0.5 0-30 21,000 Lohms 35 0.007 in (0.178 mm) M/LT IO Request
INKA2435510H 062 MINSTAC FFKM 24, 5 0.5 0-30 110,000 Lohms 35 0.003 in (0.076 mm) M/LT IO Request
INKA2455510H 062 MINSTAC FFKM 24, 5 0.5 0-30 50,000 Lohms 35 0.005 in (0.127 mm) M/LT IO Request
INKA2475510H 062 MINSTAC FFKM 24, 5 0.5 0-30 21,000 Lohms 35 0.007 in (0.178 mm) M/LT IO Request
INKA2436210H 062 MINSTAC EPDM 24, 5 0.35 0-120 110,000 Lohms 60 0.003 in (0.076 mm) M/IO Request
INKA2456210H 062 MINSTAC EPDM 24, 5 0.35 0-120 50,000 Lohms 60 0.005 in (0.127 mm) M/IO Request
INKA2476210H 062 MINSTAC EPDM 24, 5 0.35 0-120 21,000 Lohms 60 0.007 in (0.178 mm) M/IO Request
INKA2436110H 062 MINSTAC FKM 24, 5 0.5 0-120 110,000 Lohms 60 0.003 in (0.076 mm) M/IO Request
INKA2456110H 062 MINSTAC FKM 24, 5 0.5 0-120 50,000 Lohms 60 0.005 in (0.127 mm) M/IO Request
INKA2476110H 062 MINSTAC FKM 24, 5 0.5 0-120 21,000 Lohms 60 0.007 in (0.178 mm) M/IO Request
INKA2436510H 062 MINSTAC FFKM 24, 5 0.5 0-120 110,000 Lohms 60 0.003 in (0.076 mm) M/IO Request
INKA2456510H 062 MINSTAC FFKM 24, 5 0.5 0-120 50,000 Lohms 60 0.005 in (0.127 mm) M/IO Request
INKA2476510H 062 MINSTAC FFKM 24, 5 0.5 0-120 21,000 Lohms 60 0.007 in(0.178 mm) M/IO Request
INKA2437210H Barb EPDM 24, 5 0.35 0-30 110,000 Lohms 30 0.003 in (0.076 mm) P/LT IO Request
INKA2457210H Barb EPDM 24, 5 0.35 0-30 50,000 Lohms 30 0.005 in (0.127 mm) P/LT IO Request
INKA2477210H Barb EPDM 24, 5 0.35 0-30 21,000 Lohms 30 0.007 in (0.178 mm) P/LT IO Request
INKA2437110H Barb FKM 24, 5 0.5 0-30 110,000 Lohms 30 0.003 in (0.076 mm) P/LT IO Request
INKA2457110H Barb FKM 24, 5 0.5 0-30 50,000 Lohms 30 0.005 in (0.127 mm) P/LT IO Request
INKA2477110H Barb FKM 24, 5 0.5 0-30 21,000 Lohms 30 0.007 in (0.178 mm) P/LT IO Request
INKA2437510H Barb FFKM 24, 5 0.5 0-30 110,000 Lohms 30 0.003 in (0.076 mm) P/LT IO Request
INKA2457510H Barb FFKM 24, 5 0.5 0-30 50,000 Lohms 30 0.005 in (0.127 mm) P/LT IO Request
INKA2477510H Barb FFKM 24, 5 0.5 0-30 21,000 Lohms 30 0.007 in (0.178 mm) P/LT IO Request
INKA2438210H Barb EPDM 24, 5 0.35 0-30 110,000 Lohms 55 0.003 in (0.076 mm) P/IO Request
INKA2458210H Barb EPDM 24, 5 0.35 0-30 50,000 Lohms 55 0.005 in (0.127 mm) P/IO Request
INKA2478210H Barb EPDM 24, 5 0.35 0-30 21,000 Lohms 55 0.007 in (0.178 mm) P/IO Request
INKA2438110H Barb FKM 24, 5 0.5 0-30 110,000 Lohms 55 0.003 in (0.076 mm) P/IO Request
INKA2458110H Barb FKM 24, 5 0.5 0-30 50,000 Lohms 55 0.005 in (0.127 mm) P/IO Request
INKA2478110H Barb FKM 24, 5 0.5 0-30 21,000 Lohms 55 0.007 in (0.178 mm) P/IO Request
INKA2438510H Barb FFKM 24, 5 0.5 0-30 110,000 Lohms 55 0.003 in (0.076 mm) P/IO Request
INKA2458510H Barb FFKM 24, 5 0.5 0-30 50,000 Lohms 55 0.005 in (0.127 mm) P/IO Request
INKA2478510H Barb FFKM 24, 5 0.5 0-30 21,000 Lohms 55 0.007 in (0.178 mm) P/IO Request
Clear Filters
1A spike and hold electrical drive is required for most applications. To ensure solenoid coil temperatures remain within specification, duty cycle limitations may be required. Contact The Lee Company for recommendations specific to your application.
2 Lohm rating of each valve model is based on air performance. Reference the flow curve under the product information tab for typical flow characteristics on water.
3Integrated Orifice (IO) Outlet valves are available with either a 0.003”, a 0.005” or a 0.007” precision orifice integrated into the valve’s outlet. Each is also available in two different styles. The simple IO style is easiest to flush, while the Long Throw (LT) style incorporates an internal pressure compensation bladder. This bladder allows the droplet to retain its integrity longer, enabling it to travel farther.
