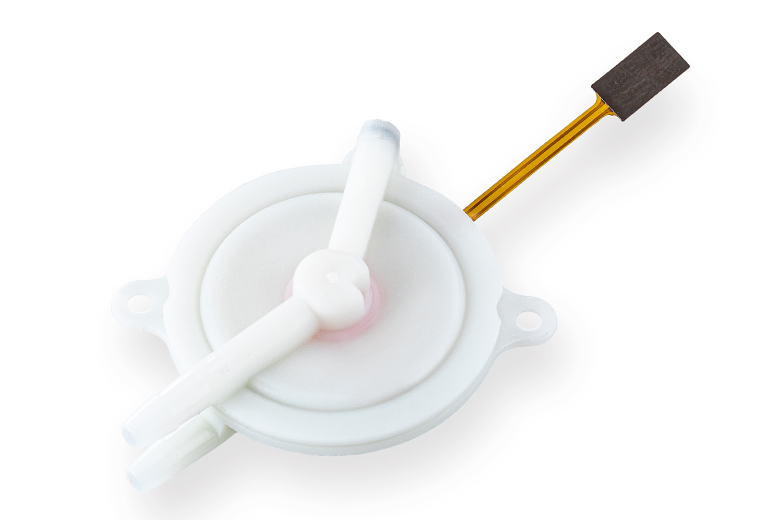

The Disc Pump is a revolutionary, ultrasonic, pneumatic piezoelectric micropump that generates pressure or vacuum in a small, silent, vibration-free form factor and delivers highly accurate, ultra-smooth flow control. The HP Series offers the ability to generate high pressures from a small, controllable, and non-pulsatile pump – opening up exciting opportunities in microfluidics through pressure driven flow. It can also be mounted as a Smart Pump Module that includes integrated drive electronics and pressure sensing, acting as a pump and pressure regulator solution all-in-one. These pumps are ideal for applications in medical devices, life sciences, and environmental monitoring, including microfluidics, pipetting, wearable devices, and portable sensing technologies.
Click here to learn more about the technology

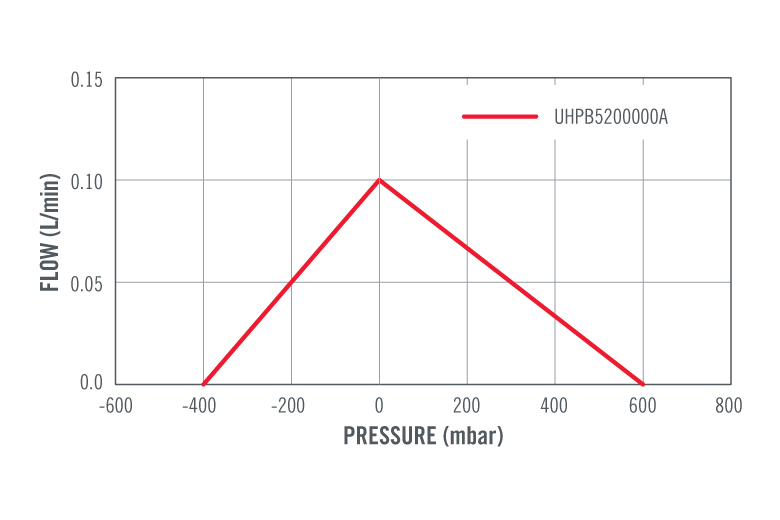

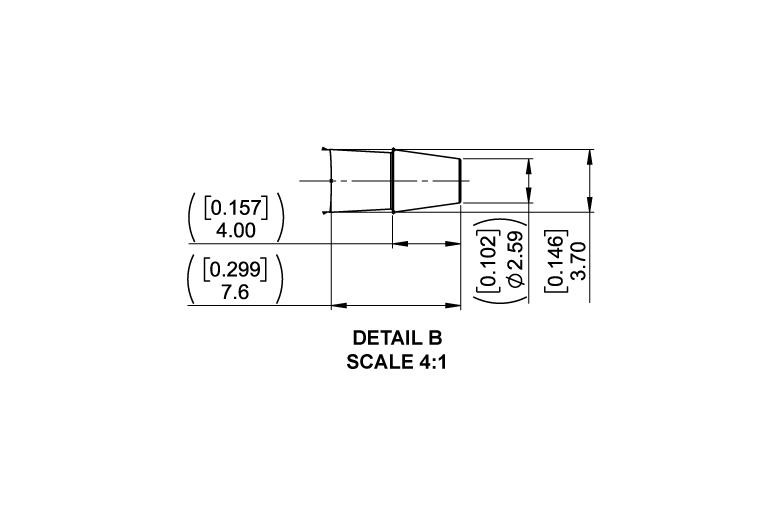

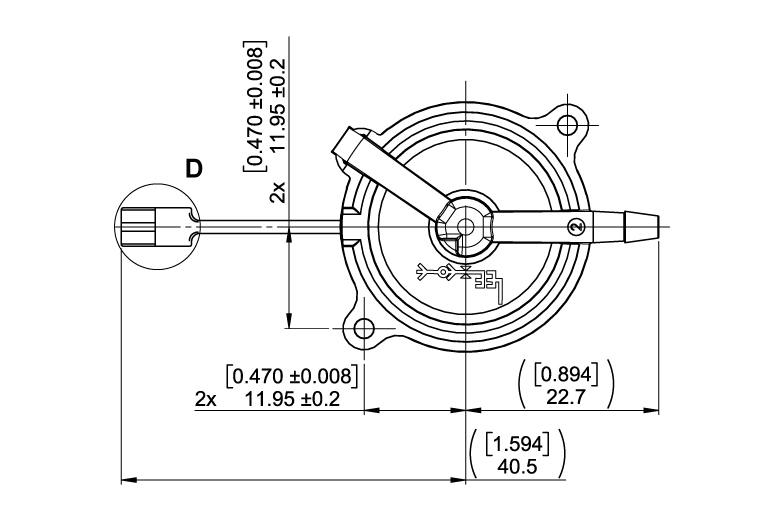

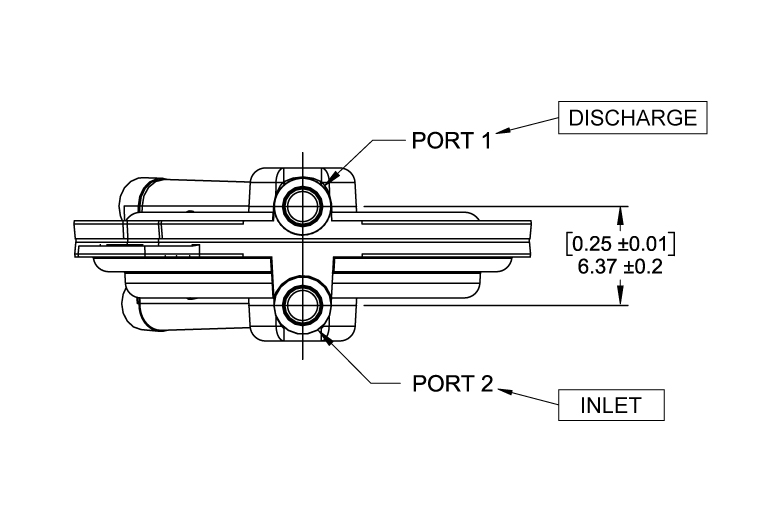

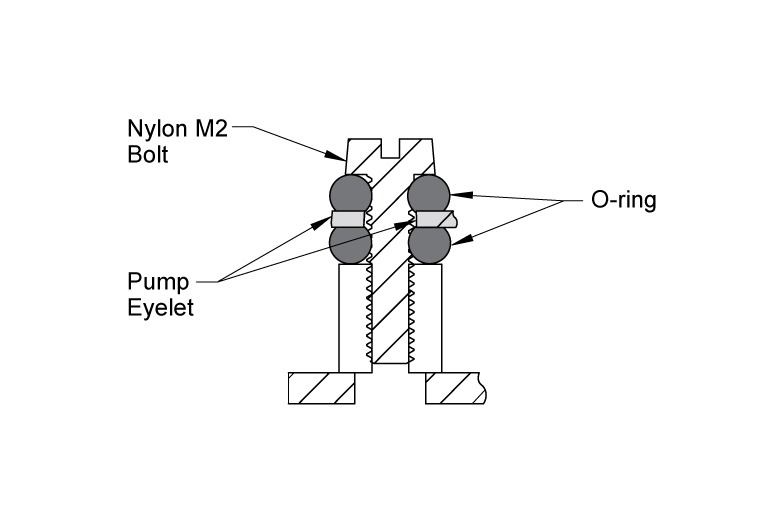

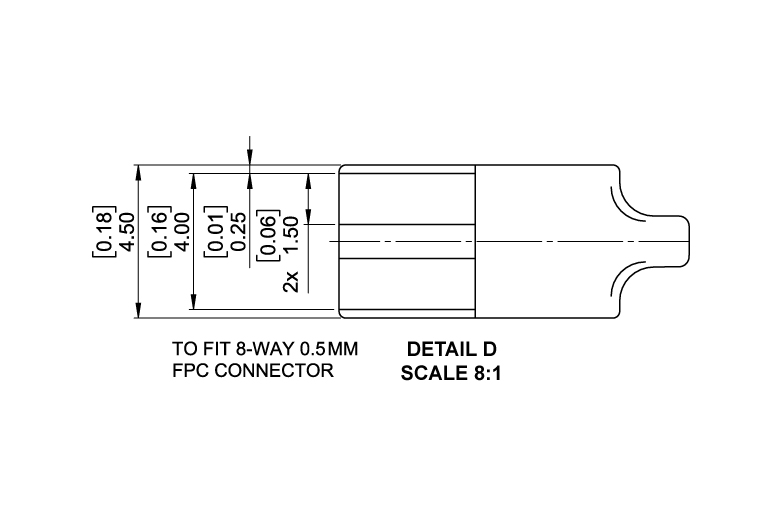

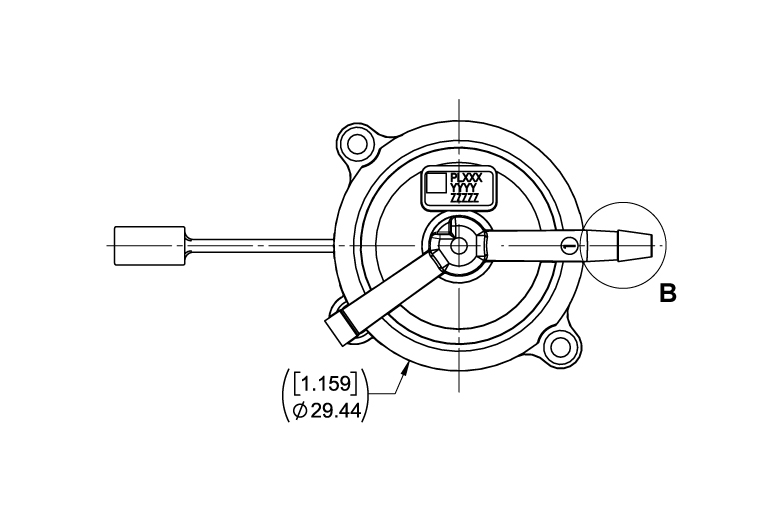

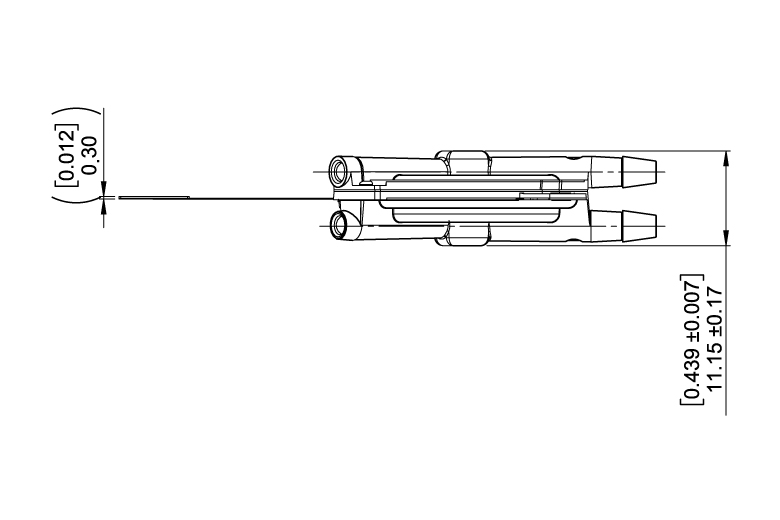

| Characteristic | Specification |
|---|---|
| Free Flow Rate | 0.10 L/min |
| Pressure Range | -400 mbar to 600 mbar |
| Silent1 | <10 dB |
| Operating Temperature | 41°F to 104°F (5°C to 40°C) |
| Control Precision2 | Less Than 0.1% |
| Response Time | Ultra-fast Millisecond Response |
| Turn-down Ratio3 | Infinite |
| Recommended Filtration4 | Less Than 3 μm |
| Compact Size | 29 mm Diameter |
| Lightweight | 5 g |
| Humidity Range5 | 0 to 95% RH |
| Pumping Medium6 | Air. Liquids can be controlled indirectly. |
| Materials | |
| Polyarylamide | Stainless steel |
| PET | Acrylated urethane |
| Polyimide | Gold |
| Nickel | Lead zirconium titanium oxide |
| Aluminium | Titanium |
| Silver | Copper-Tungsten |
| Epoxy | Nitrile |
All disc pumps are RoHS compliant.
Are you ready to get started? You can be up and running one of our disc pumps in a matter of minutes with the ‘plug and play’ functionality of our Development Kit. We make it easy for you to test this new technology and see it’s advanced functionality.
Make sure to check out our extensive resources and literature – User Manuals, How-To Videos, and Application Notes – to guide you from initial set-up, to using the disc pumps for in-situ applications. Our Frequently Asked Questions covers any further information you may need.
Our Disc Pump Development Kit enables the rapid evaluation of one or multiple pumps, together with solenoid valves, making it easy to test system-level prototypes and evaluate the unique features of the piezoelectric disc pump technology.
Watch this video of our Business Development Manager, John Watson, as he unboxes a Disc Pump Development Kit and explains everything that comes with it:
Note that Disc Pumps and valves must be purchased separately. This enables customers to select the exact model(s) that they wish to test. For help selecting the right model for your application, please speak to a Lee Sales Engineer.
These Getting Started Resources act as a primary resource for those starting out with the disc pumps. The resources include safety information, signposting to other resources, and guidance for running and controlling the disc pumps.
These Application Notes provide practical guidance on how our disc pumps can be used across a variety of applications.
This table below contains the part numbers and technical specifications for this product. If you have specific questions, need a quote, or would like to request a handbook or drawing, click the red request button in the column on the far right.
These Technical Guides provide non-application specific instructions and advice on the disc pumps.
Software includes PC-based interface and code snippets for running and controlling the disc pumps. The Electronics Reference Design package contains PCB and firmware reference designs together with supporting technical guides. This provides everything necessary for customers to design their own drive electronics.

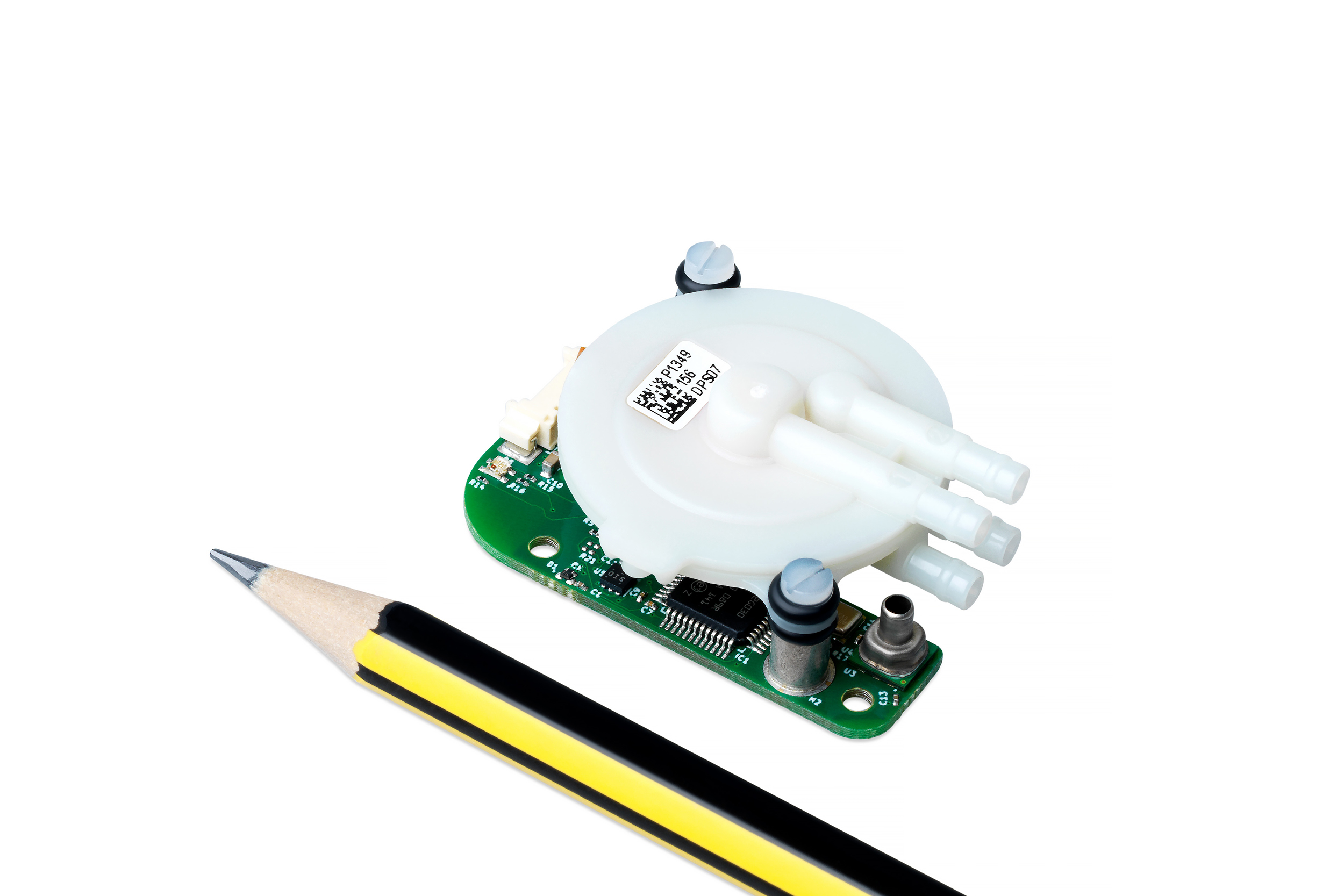

The Smart Pump Module combines our piezoelectric disc pumps with drive electronics and pressure sensing in a tightly-integrated package.
These Application Notes provide practical guidance on how our disc pumps can be used across a variety of applications.
