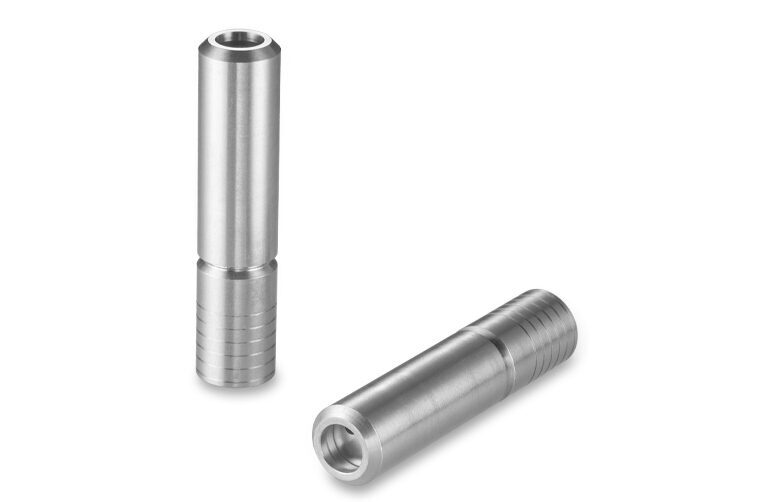

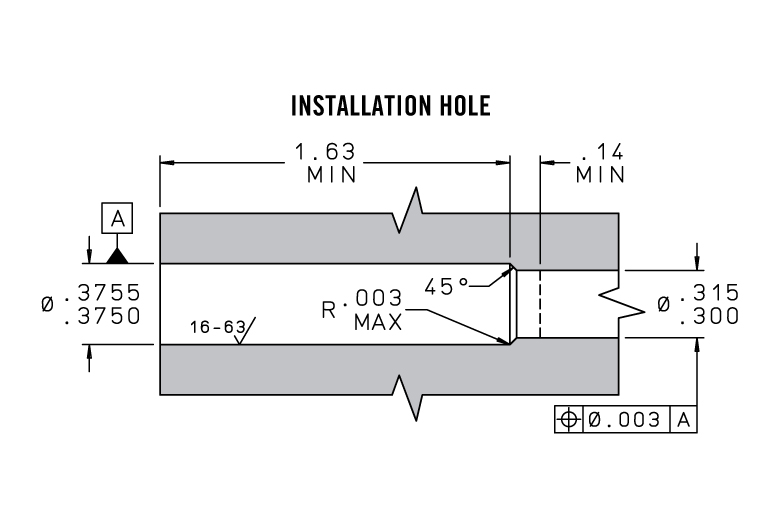

This high pressure jet flow restrictor incorporates multiple orifices in series, with successive orifices on the centerline and displaced from it. This forces fluid to “bend” as it passes through the unit. The combined effect is an increase in the passage size for a given Lohm rate, making the restrictor more resistant to clogging due to contamination. Additionally, having the orifices in series make the restrictor less susceptible to cavitation. The restrictor is protected with two integral safety screens for bidirectional flow.
| Characteristic | Specification |
|---|---|
| Lohm Rate Tolerance | ± 5% |
| Maximum Working Pressure | 5000 psid |
| Nominal Weight | 12 grams |
| PART | MATERIAL | SPECIFICATION |
|---|---|---|
| Body | 304L CRES | AMS 5647 |
| Pin | 17-4PH CRES | AMS 5643 |
| Metering Element | 15-5PH CRES | AMS 5659 |
| Spacers | 15-5PH CRES | AMS 5659 |
This table below contains the part numbers and technical specifications for this product. If you have specific questions, need a quote, or would like to request a handbook or drawing, click the red request button in the column on the far right.
| Part Number | Description |
|---|---|
| CUTA3750306C | Installation / Extraction Tool Set |
| PHRA3750003A | Replacement Pin |
From plugs to solenoid valves, there’s a vast array of products that The Lee Company can offer. If you’d like to discuss the best solution for your specific application or to learn more about our capabilities, use-cases, or quality standards, contact your local Lee sales engineer.
Your download has started.
We’re always ready to be your engineering partner. Fill out this form below so we can provide the solution you need.
We have received your inquiry and a member of our team will be in contact shortly to provide more information. Thank you for contacting The Lee Company!
The Lee Company has developed the Lohm Laws for defining and measuring resistance to fluid flow. The Lohm is defined such that 1 Lohm will flow 100 GPM of water with a pressure drop of 25 psi at a temperature of 80°F.
Always verify flow calculations by experiment.
*There are many parameters to consider when determining V-Factor. Click here for more information.
