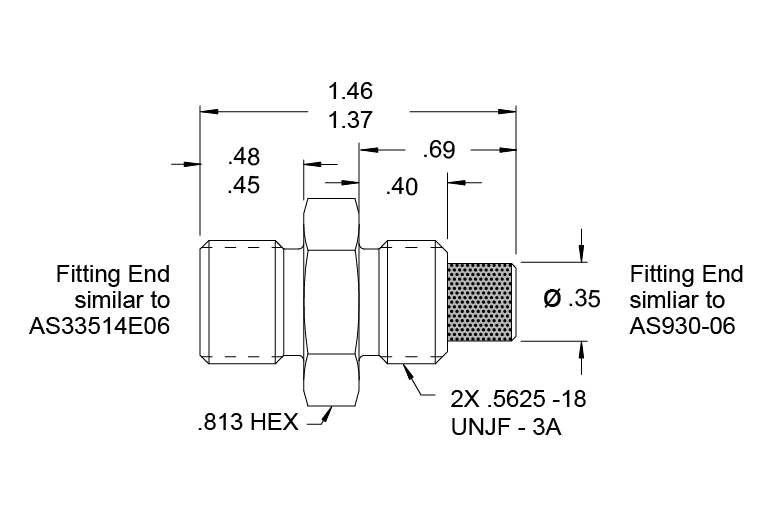

Individually laser drilled and deburred by proprietary manufacturing processes, this last chance filter features an extremely robust, one-piece design without joints or seams. This filter helps to save space and weight by incorporating the inlet screen directly into the boss fitting end (rather than installed in the manifold directly below the fitting). This unique design offers greater flow and contamination carrying capacity when compared to a design that completely encapsulates the filter in the fitting.
| PART | MATERIAL | SPECIFICATION | FINISH |
|---|---|---|---|
| Adapter | 15-5PH CRES | AMS 5659 | Passivate |
| Screen | 15-5PH CRES | AMS 5659 | Passivate |
| Braze | Silver Alloy | AMS 4774 | - |
This table below contains the part numbers and technical specifications for this product. If you have specific questions, need a quote, or would like to request a handbook or drawing, click the red request button in the column on the far right.
From plugs to solenoid valves, there’s a vast array of products that The Lee Company can offer. If you’d like to discuss the best solution for your specific application or to learn more about our capabilities, use-cases, or quality standards, contact your local Lee sales engineer.
Your download has started.
We’re always ready to be your engineering partner. Fill out this form below so we can provide the solution you need.
We have received your inquiry and a member of our team will be in contact shortly to provide more information. Thank you for contacting The Lee Company!

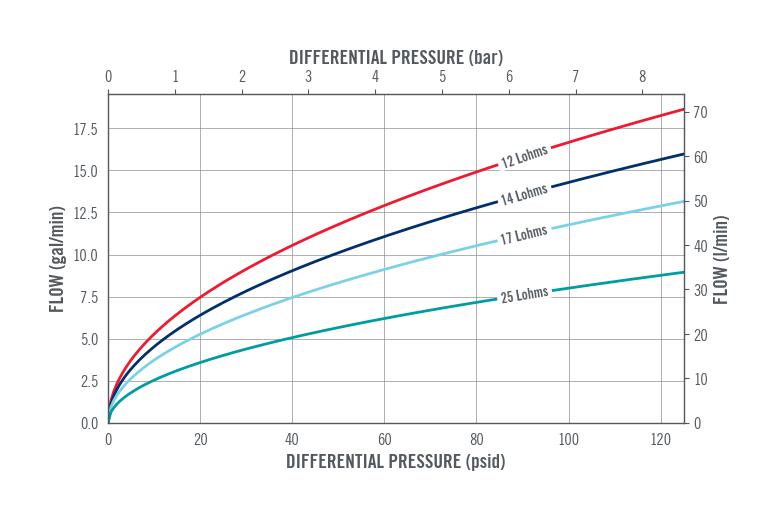

The Lee Company has developed the Lohm Laws for defining and measuring resistance to fluid flow. The Lohm is defined such that 1 Lohm will flow 100 GPM of water with a pressure drop of 25 psi at a temperature of 80°F.
Always verify flow calculations by experiment.
*There are many parameters to consider when determining V-Factor. Click here for more information.
