This etched last chance filter features a seamless, one-piece screen element formed with pleats to greatly increase contamination carrying capacity. The result is a robust screen design with an optimum amount of protection in a small package. It is offered with several standard hole size options ranging from 75 to 500 microns. This version incorporates a 0.312 of an inch thread for retention.
| PART | MATERIAL | SPECIFICATION |
|---|---|---|
| Threaded Adaptor | 304L CRES | AMS QQ-S-763 or AMS 5647 |
| Screen | 304L CRES | ASTM A 666 |
| Base Washer | 304L CRES | ASTM A 666 |
| Braze | Silver Alloy | AMS 4774 |
This table below contains the part numbers and technical specifications for this product. If you have specific questions, need a quote, or would like to request a handbook or drawing, click the red request button in the column on the far right.
From plugs to solenoid valves, there’s a vast array of products that The Lee Company can offer. If you’d like to discuss the best solution for your specific application or to learn more about our capabilities, use-cases, or quality standards, contact your local Lee sales engineer.
Your download has started.
We’re always ready to be your engineering partner. Fill out this form below so we can provide the solution you need.
We have received your inquiry and a member of our team will be in contact shortly to provide more information. Thank you for contacting The Lee Company!

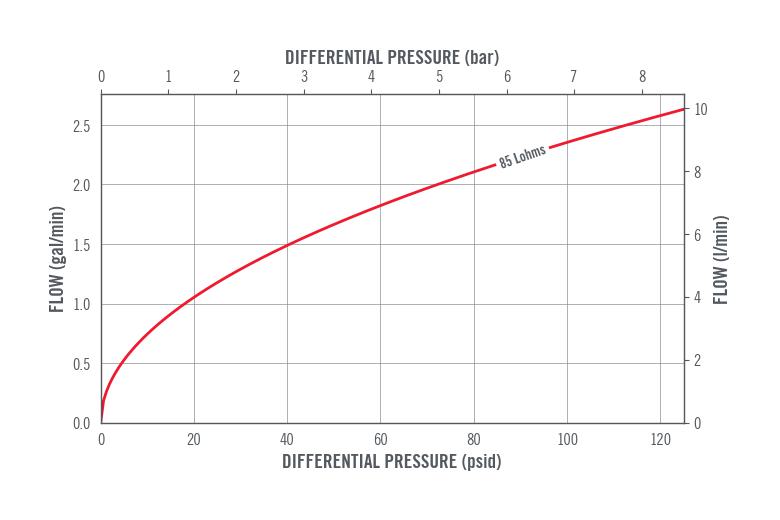

The Lee Company has developed the Lohm Laws for defining and measuring resistance to fluid flow. The Lohm is defined such that 1 Lohm will flow 100 GPM of water with a pressure drop of 25 psi at a temperature of 80°F.
Always verify flow calculations by experiment.
*There are many parameters to consider when determining V-Factor. Click here for more information.
