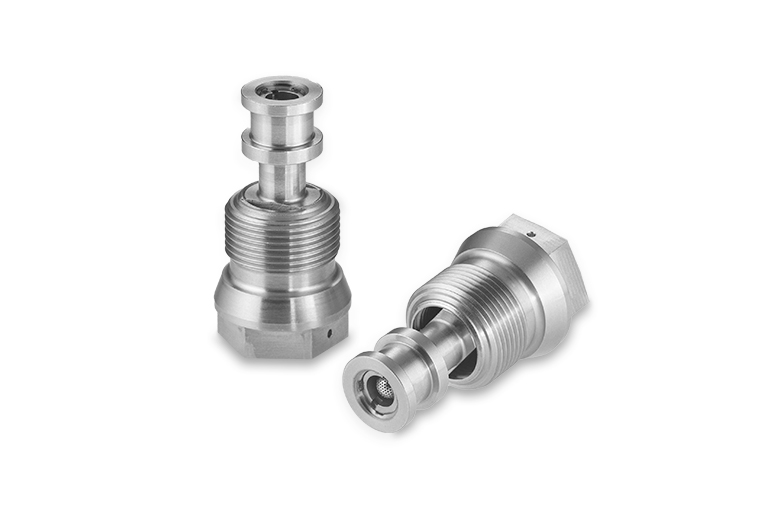

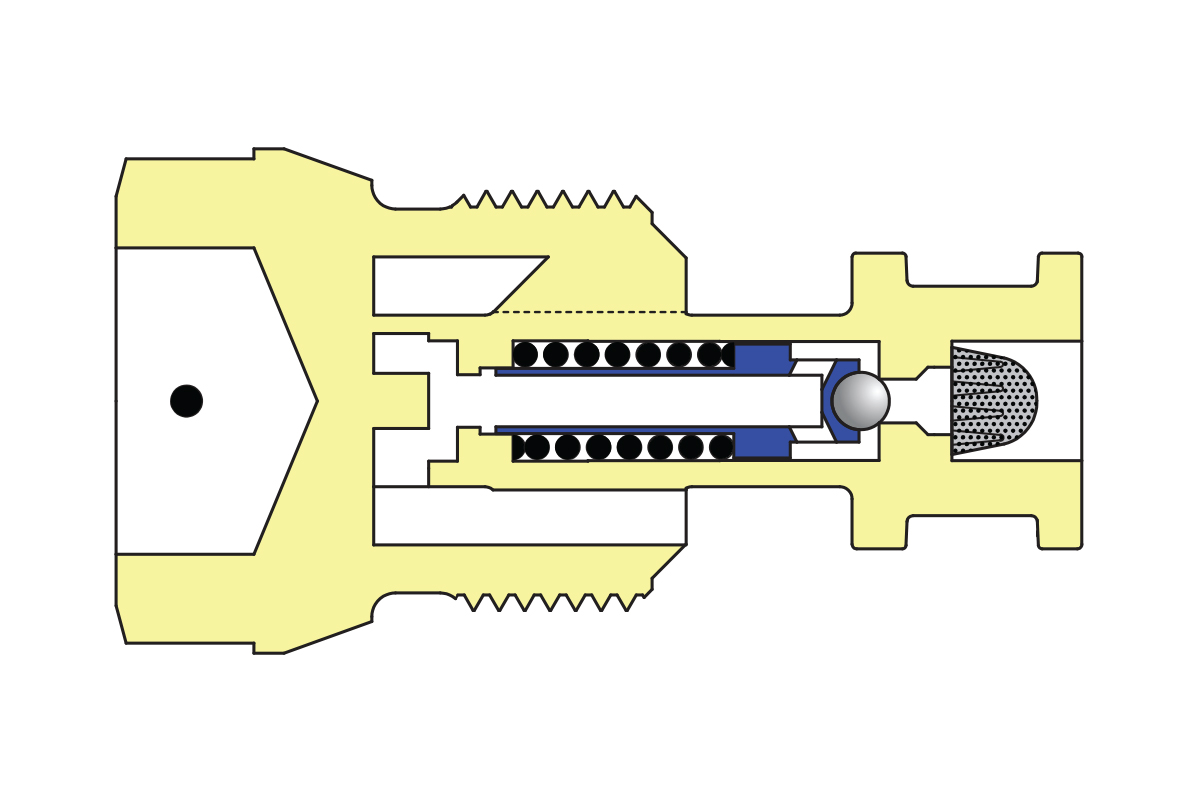

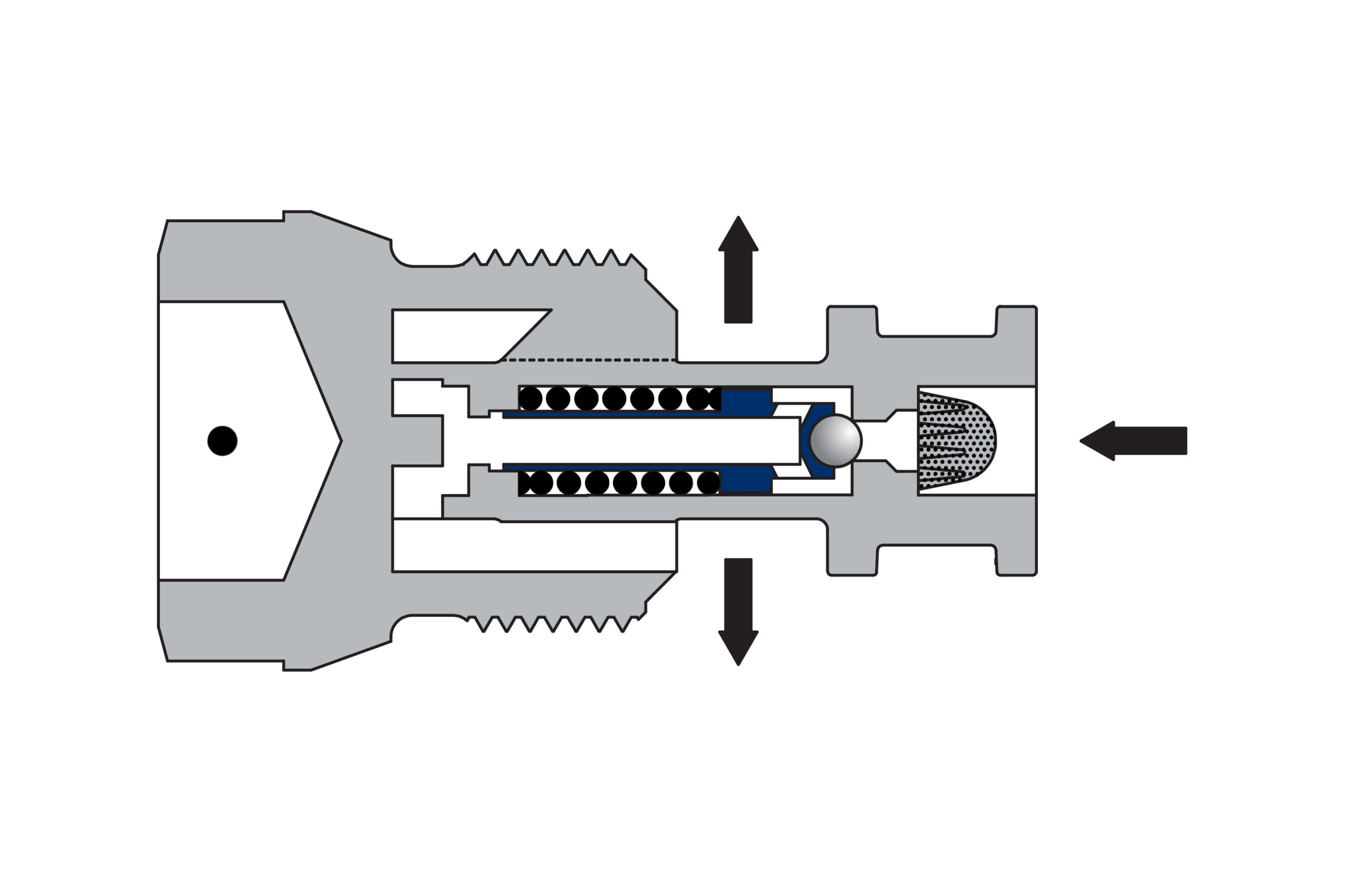

This direct-acting valve is ideally suited for hydraulic applications where a fast-opening safety relief valve is needed to prevent system damage from pressure spikes. This pressure relief valve is packaged in a Line Removable Unit (LRU) for ease of installation and extraction. Minimum cracking pressures are available from 400-3600 psid. An integral safety screen is available for added protection.

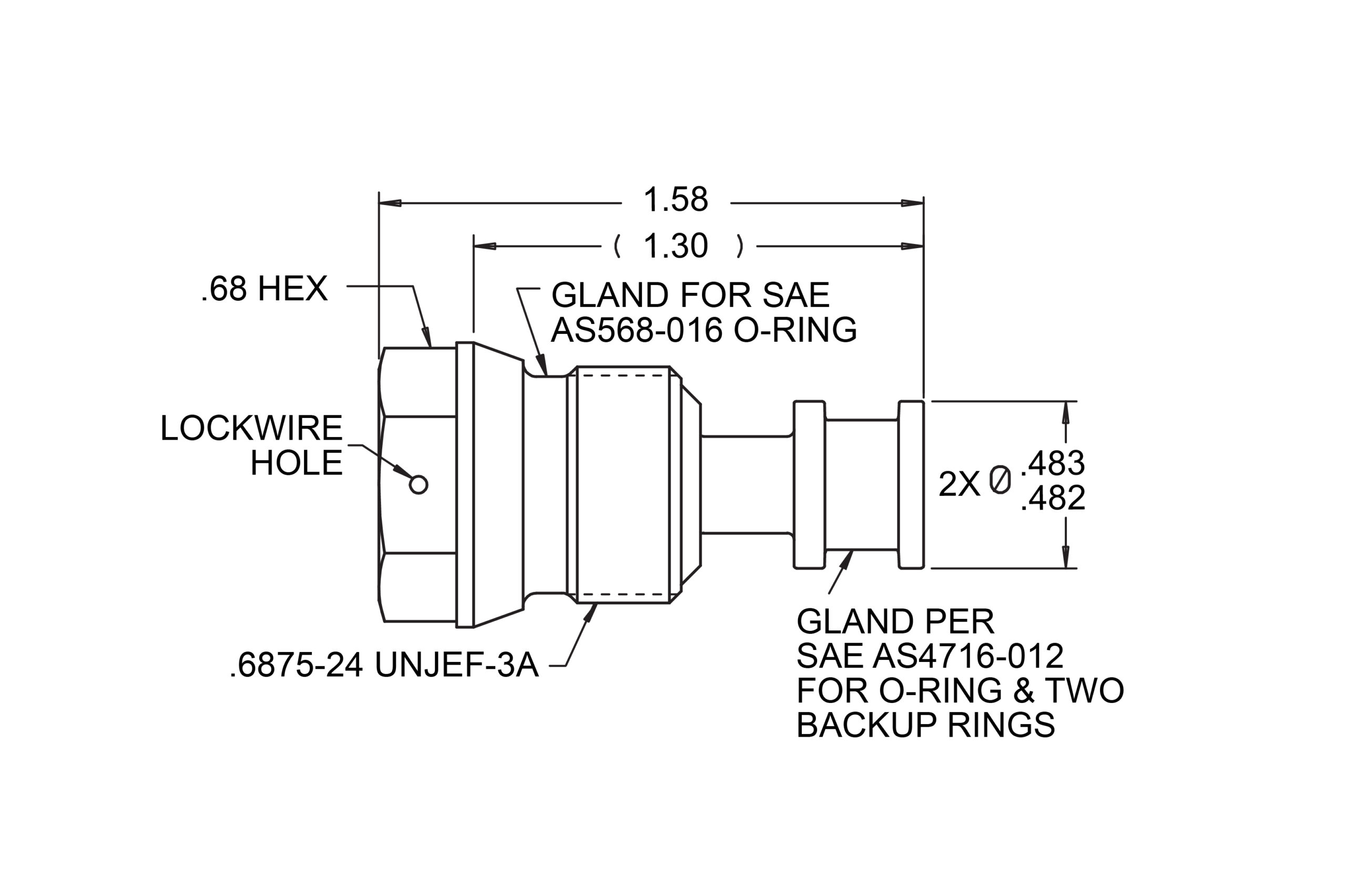

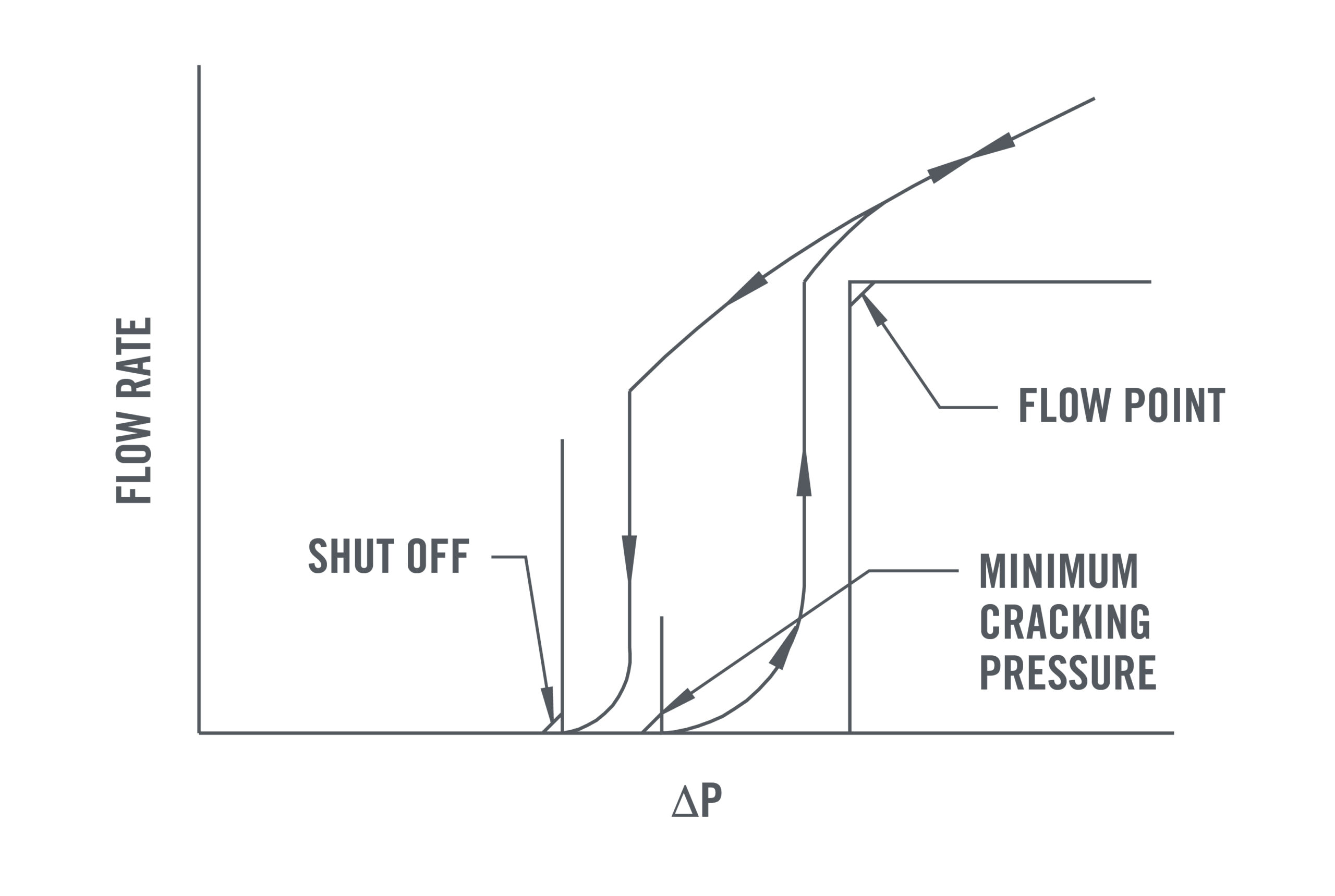

| Characteristic | Specification |
|---|---|
| Leakage at Minimum Cracking Pressure | 1 mL / Minute Maximum |
| Leakage at Minimum Shutoff Pressure | 1 mL / Minute Maximum |
| Restriction at Minimum Recommended Valve Lift | 1500 Lohms |
| Nominal System Pressure | up to 3000 psi |
| System Proof Pressure | 4500 psi Maximum |
| Screen Hole Size | 0.008 inches Nominal |
| Nominal Weight | Unscreened: 38 grams Screened: 39 grams |
| Test Fluid | MIL-PRF-83282 at 85°F |
| PART | MATERIAL | SPECIFICATION |
|---|---|---|
| Body | 303 CRES | QQ-S-763C |
| Spring Seat | 303 CRES | QQ-S-763C |
| Seat | 303 CRES | QQ-S-763C |
| Retainer | 303 CRES | QQ-S-763C |
| Ball Follower | 303 CRES | QQ-S-763C |
| Spring | 17-7PH CRES | AMS 5678 |
| Tube | 304 CRES | AMS 5639 |
| Ball | 440C CRES | AMS 5630 |
| Screen (Screened Version Only) | 304L CRES | ASTM A 666 |
| Braze (Screened Version Only) | - | AMS 4774 |
This table below contains the part numbers and technical specifications for this product. If you have specific questions, need a quote, or would like to request a handbook or drawing, click the red request button in the column on the far right.
From plugs to solenoid valves, there’s a vast array of products that The Lee Company can offer. If you’d like to discuss the best solution for your specific application or to learn more about our capabilities, use-cases, or quality standards, contact your local Lee sales engineer.
Your download has started.
We’re always ready to be your engineering partner. Fill out this form below so we can provide the solution you need.
We have received your inquiry and a member of our team will be in contact shortly to provide more information. Thank you for contacting The Lee Company!
The Lee Company has developed the Lohm Laws for defining and measuring resistance to fluid flow. The Lohm is defined such that 1 Lohm will flow 100 GPM of water with a pressure drop of 25 psi at a temperature of 80°F.
Always verify flow calculations by experiment.
*There are many parameters to consider when determining V-Factor. Click here for more information.
