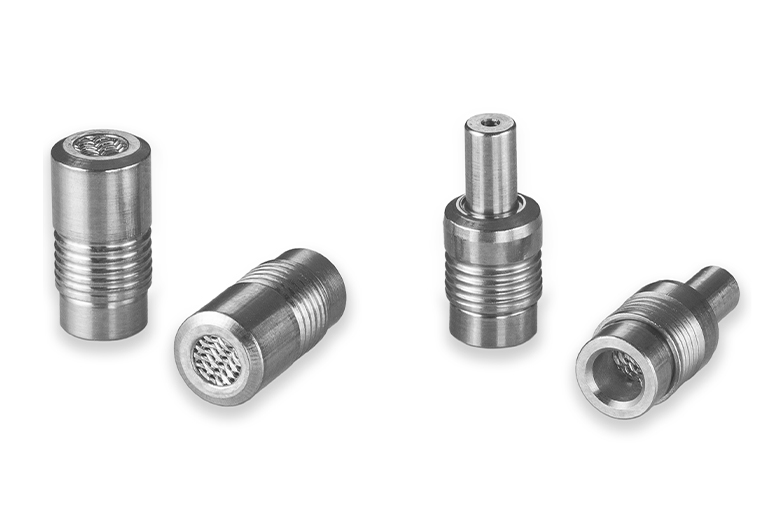

This threadless, cartridge-style valve (also known as a bleeder valve) provides an innovative solution to removing trapped air within a pressurized system to increase system efficiencies while minimizing hydraulic losses. The valve is designed for installation into metal manifolds and uses the field-proven Lee Controlled Expansion Principle to deliver secure retention without the need for threads, O-rings, or sealants. Normally closed, the valve can be customized to allow air admittance if required for thermal management.
| Characteristic | Specification |
|---|---|
| Lohm Rate | 1100 Lohms |

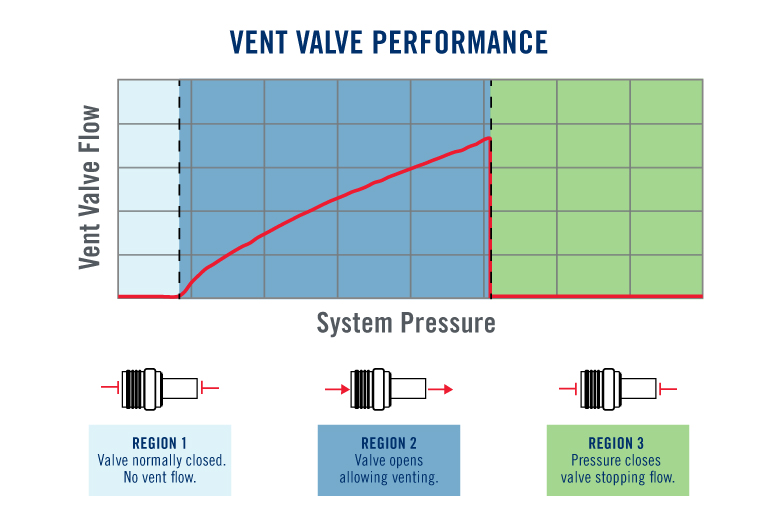

| Cracking / Opening Pressure | Uprun pressure at which the valve will flow more than 50 SCCM of air |
| Shut-Off Pressure | Uprun pressure at which the valve will flow less than 20 SCCM of air |
| Leakage | Vent valves are normally closed. Specials available as normally open versions for air admittance. |
| Maximum Working Pressure, Checked Direction | 280 Bar |
| Maximum Working Pressure Differential, Flow Direction | 40 Bar |
| Installation Force | 625 kgf (max) |
| Saftey Screen Filter | 125 microns |

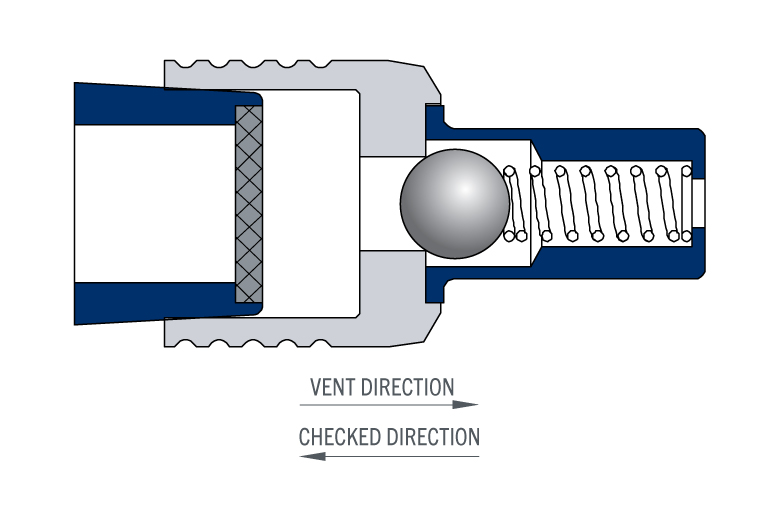

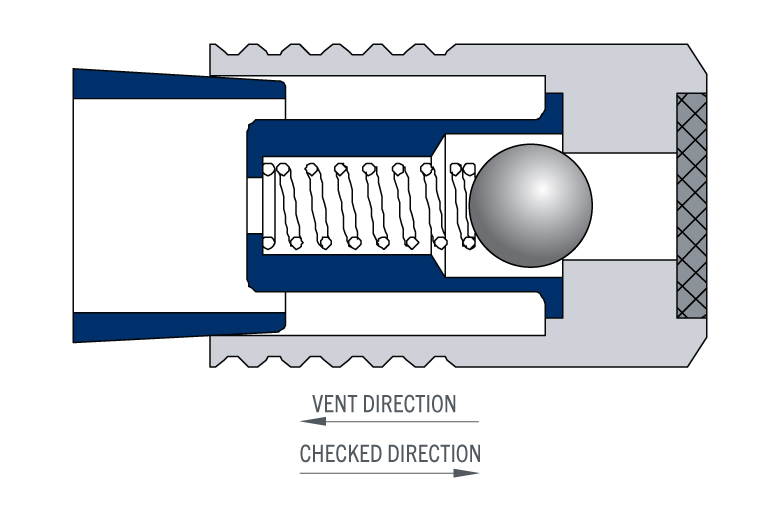

| COMPONENT | MATERIAL |
|---|---|
| Body | 303 Stainless Steel |
| Cage | 303 Stainless Steel |
| Pin | 416 or 303 Stainless Steel |
| Spring | 302 Stainless Steel |
| Ball | 440C Stainless Steel |
| Screen | 316 Stainless Steel |
This table below contains the part numbers and technical specifications for this product. If you have specific questions, need a quote, or would like to request a handbook or drawing, click the red request button in the column on the far right.
| PART NUMBER | DESCRIPTION |
|---|---|
| CCRT0900120S | 558 Series Installation Tool |
From plugs to solenoid valves, there’s a vast array of products that The Lee Company can offer. If you’d like to discuss the best solution for your specific application or to learn more about our capabilities, use-cases, or quality standards, contact your local Lee sales engineer.
Your download has started.
We’re always ready to be your engineering partner. Fill out this form below so we can provide the solution you need.
We have received your inquiry and a member of our team will be in contact shortly to provide more information. Thank you for contacting The Lee Company!
The Lee Company has developed the Lohm Laws for defining and measuring resistance to fluid flow. The Lohm is defined such that 1 Lohm will flow 100 GPM of water with a pressure drop of 25 psi at a temperature of 80°F.
Always verify flow calculations by experiment.
*There are many parameters to consider when determining V-Factor. Click here for more information.
