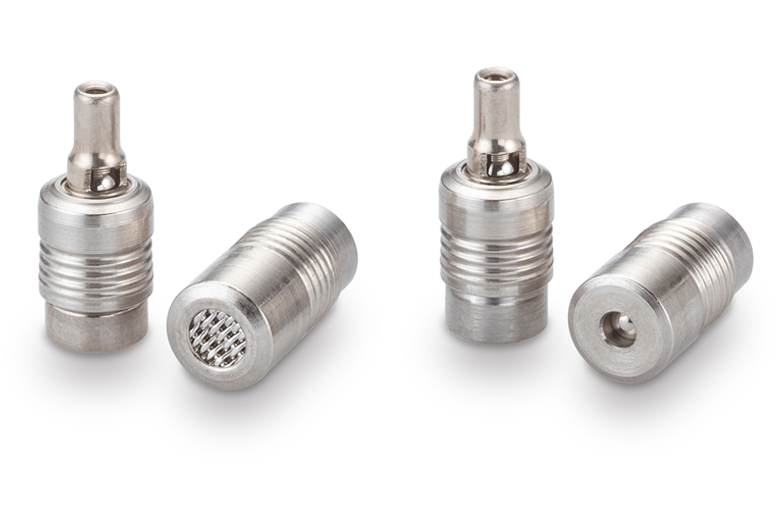

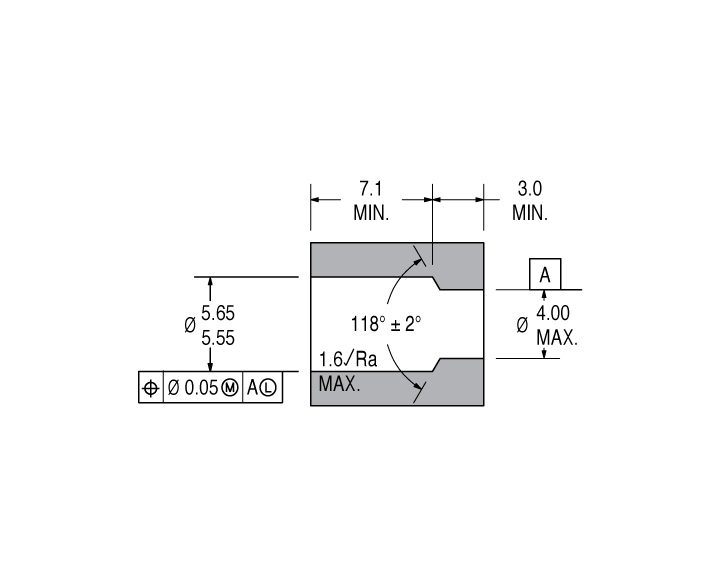

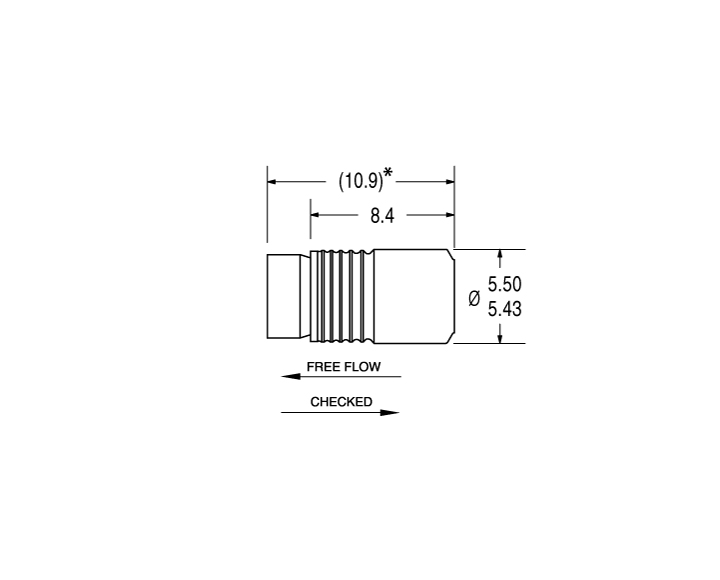

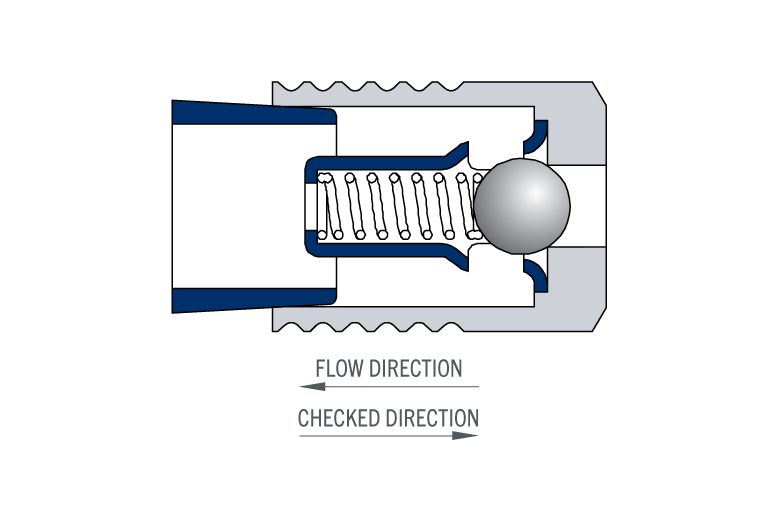

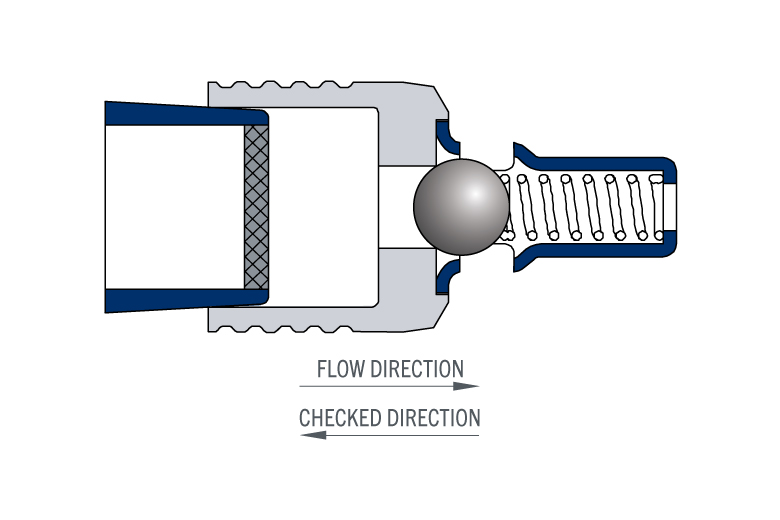

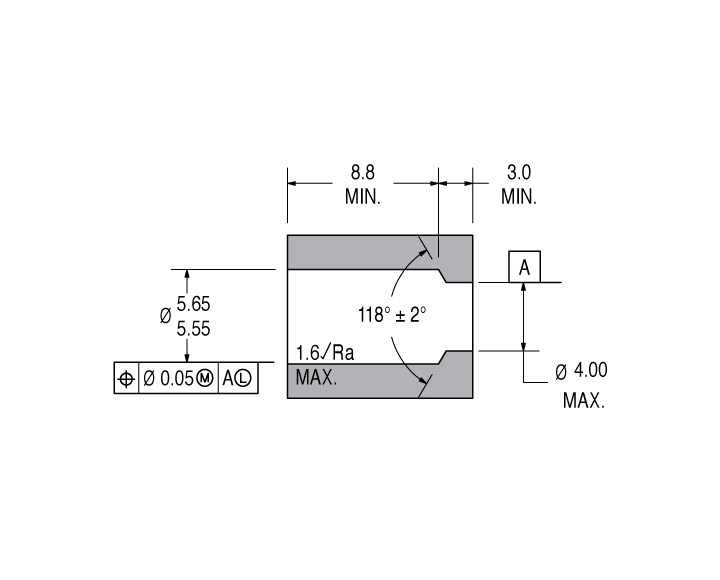

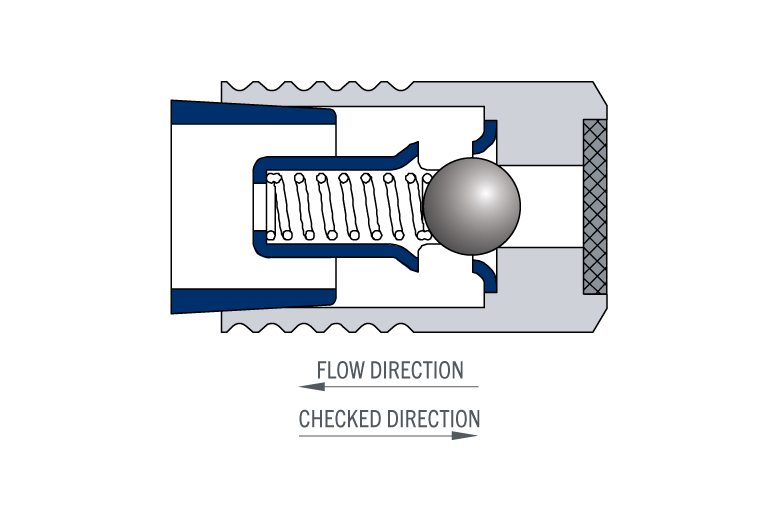

This threadless, cartridge-style, one-way valve is designed for installation into metal manifolds. The valve features The Lee Company’s field-proven locking end which provides secure retention without the need for threads, O-rings or sealants. Featuring an all-stainless steel design with a high-quality metal seat, the valve offers low leakage, repeatable cracking pressures, and long life. Models are available with an integral safety screen for increased protection against contamination and a ceramic ball. The valve is 100% performance tested.
| Characteristic | UNSCREENED | SCREENED |
|---|---|---|
| Lohm Rate | 250 Lohms | 400 Lohms |
| Leakage at 172 kPa (25 psid) on Air | 10 SCCM (max) | 10 SCCM (max) |
| Maximum Working Pressure, Checked Direction | 280 Bar | 280 Bar |
| Maximum Working Pressure Differential, Flow Direction | 40 Bar | 40 Bar |
| Screen Size | N/A | 125 micron |
| Installation Force | 625 kgf (max) | 625 kgf (max) |
| COMPONENT | MATERIAL |
|---|---|
| Body | 303 Stainless Steel |
| Cage | 305 Stainless Steel |
| Pin | 416 or 303 Stainless Steel |
| Spring | 302 Stainless Steel |
| Ball | 440C Stainless Steel or Ceramic |
| Screen | 316 Stainless Steel |
This table below contains the part numbers and technical specifications for this product. If you have specific questions, need a quote, or would like to request a handbook or drawing, click the red request button in the column on the far right.
| PART NUMBER | DESCRIPTION |
|---|---|
| CCRT0900120S | 558 Series Installation Tool |
From plugs to solenoid valves, there’s a vast array of products that The Lee Company can offer. If you’d like to discuss the best solution for your specific application or to learn more about our capabilities, use-cases, or quality standards, contact your local Lee sales engineer.
Your download has started.
We’re always ready to be your engineering partner. Fill out this form below so we can provide the solution you need.
We have received your inquiry and a member of our team will be in contact shortly to provide more information. Thank you for contacting The Lee Company!

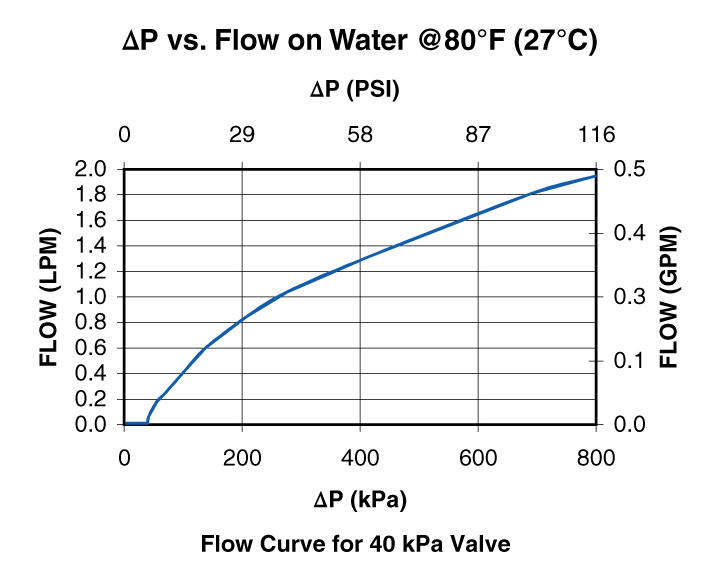

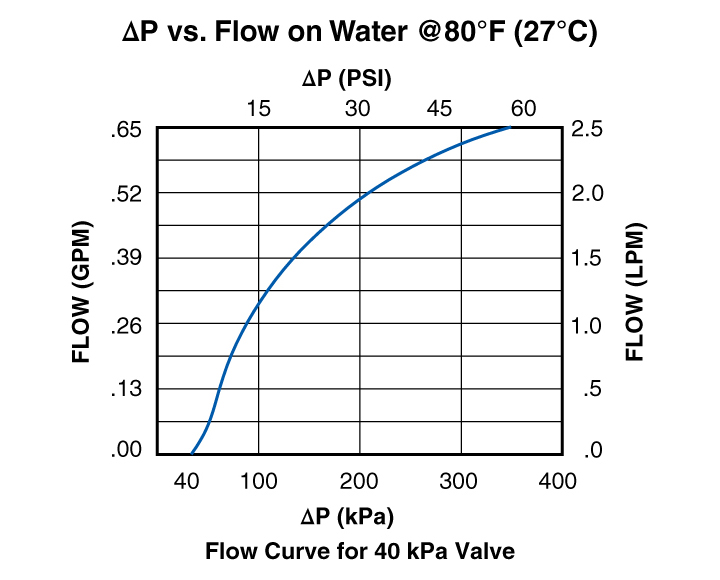

The Lee Company has developed the Lohm Laws for defining and measuring resistance to fluid flow. The Lohm is defined such that 1 Lohm will flow 100 GPM of water with a pressure drop of 25 psi at a temperature of 80°F.
Always verify flow calculations by experiment.
*There are many parameters to consider when determining V-Factor. Click here for more information.
