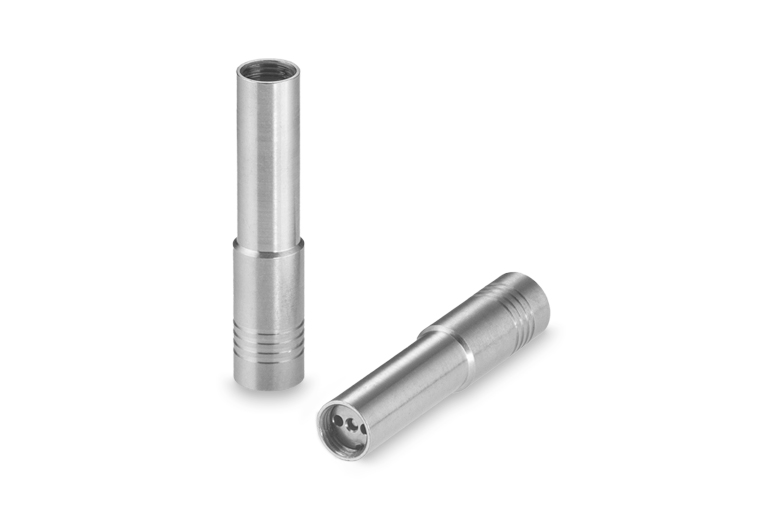

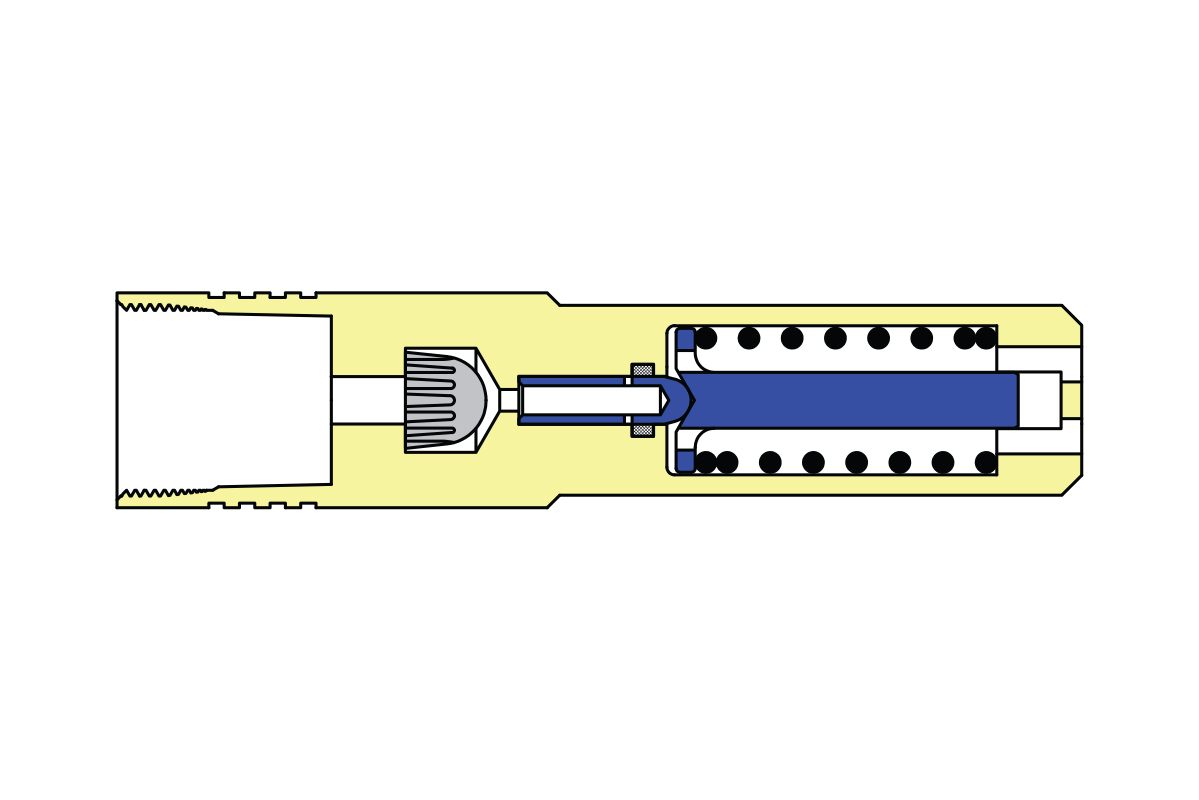

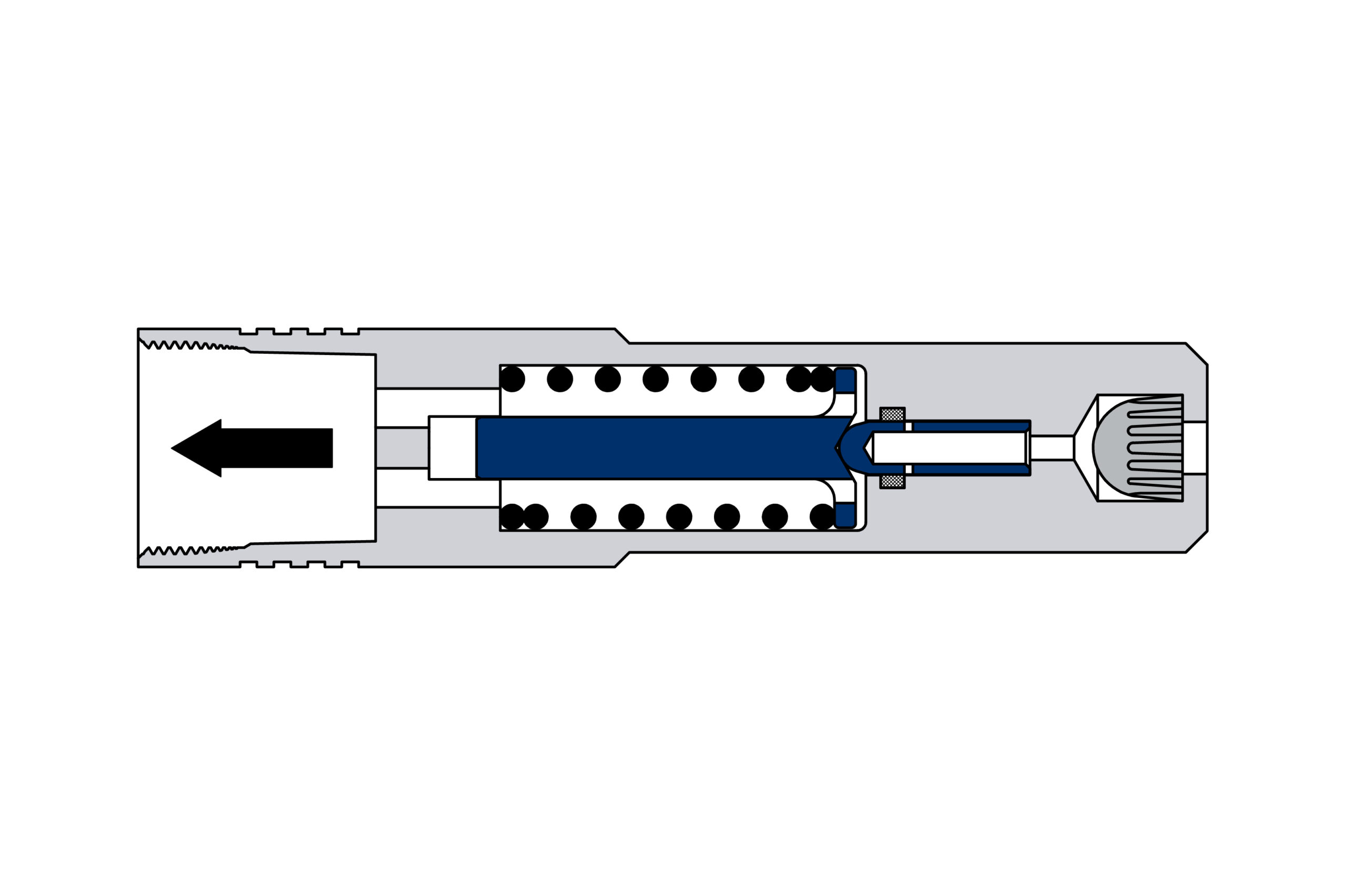

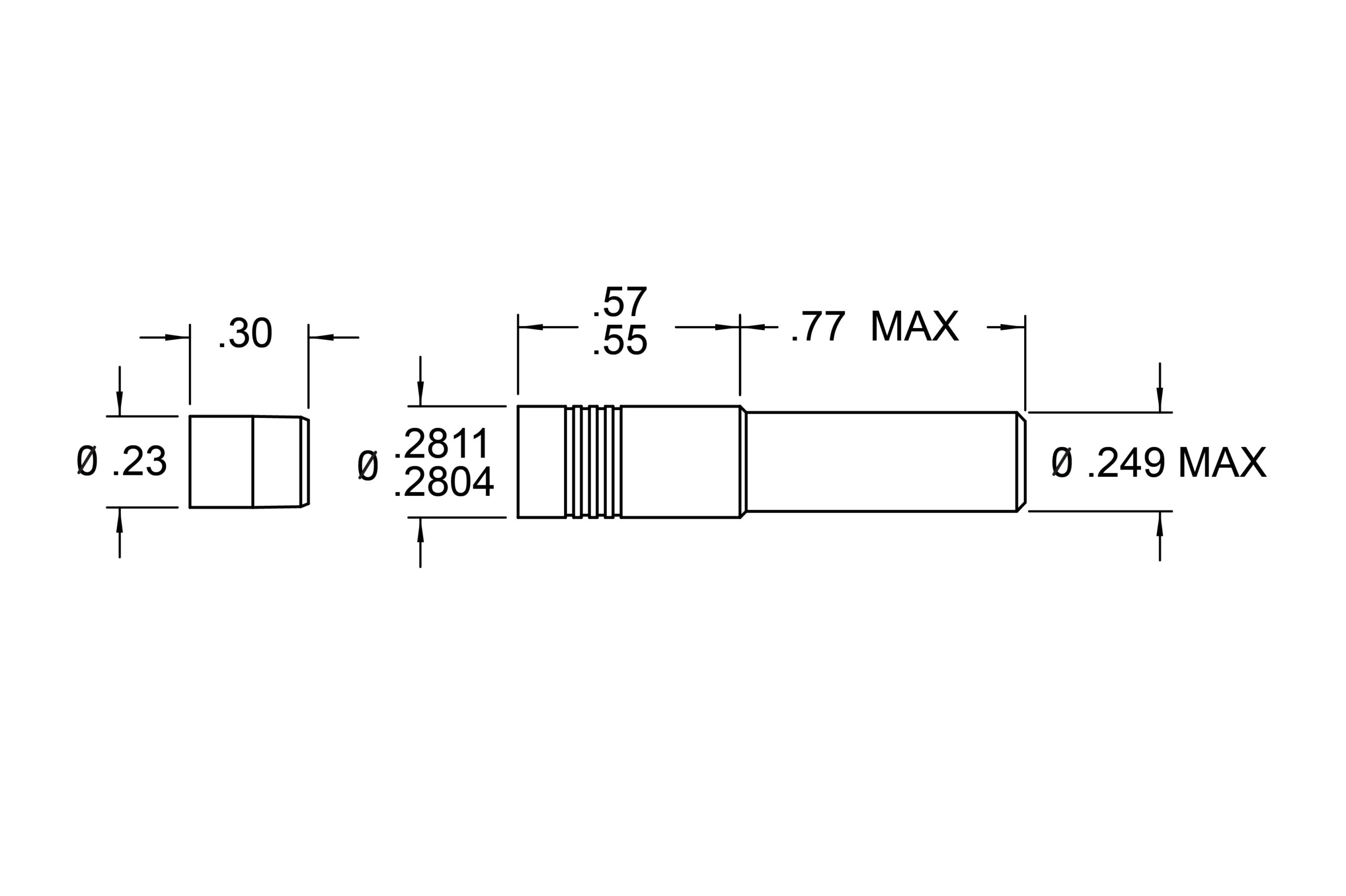

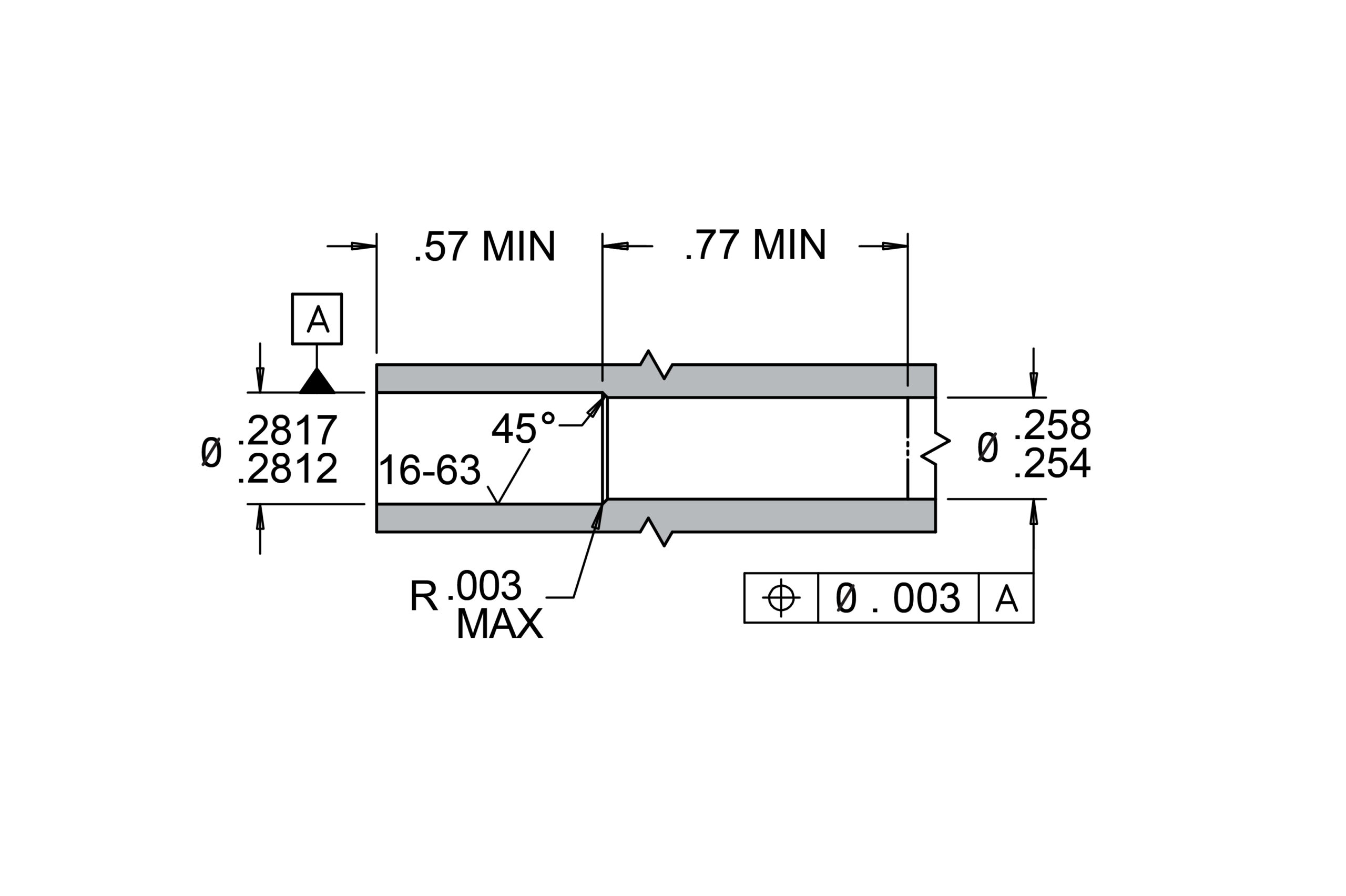

This direct-acting valve is ideally suited for hydraulic applications where a safety relief valve with extremely low leakage is needed to seal the system when closed. The fast opening response helps the valve prevent system damage from pressure spikes. Minimum cracking pressures are available from 800-4700 psid.
| Characteristic | Specification |
|---|---|
| Leakage at Minimum Cracking Pressure: | 0 Drops in a 1 Minute Test; 1 Drop / Hour Maximum |
| Leakage at Minimum Shutoff Pressure | 0 Drops in a 1 Minute Test; 1 Drop / Hour Maximum |
| Nominal System Pressure | 4000 psi Maximum |
| System Peak Pressure | 5400 psi Maximum |
| Screen Hole Size | 0.004 inches Nominal |
| Test Fluid | MIL-PRF-83282 at 85°F |
| PART | MATERIAL | SPECIFICATION |
|---|---|---|
| Body | 15-5PH CRES | AMS 5659 |
| Pin | 15-5PH CRES | AMS 5659 |
| Poppet | 440C CRES | AMS 5630 |
| Seal | POLYMER | - |
| Poppet Guide | 303 CRES | QQ-S-763C |
| Retainers | 303 CRES | QQ-S-763C |
| Spring Guide | 303 CRES | QQ-S-763C |
| Spring Seat | 303 CRES | QQ-S-763C |
| Spring | 17-7PH CRES | AMS 5678 |
| Screen | 304L CRES | ASTM A 666 |
| Braze | - | AMS 4774 |
This table below contains the part numbers and technical specifications for this product. If you have specific questions, need a quote, or would like to request a handbook or drawing, click the red request button in the column on the far right.
| PART NUMBER | DESCRIPTION |
|---|---|
| CUTA2810114C | Installation / Extraction Tool Set |
| SHBA2810003A | Replacement Pin |
