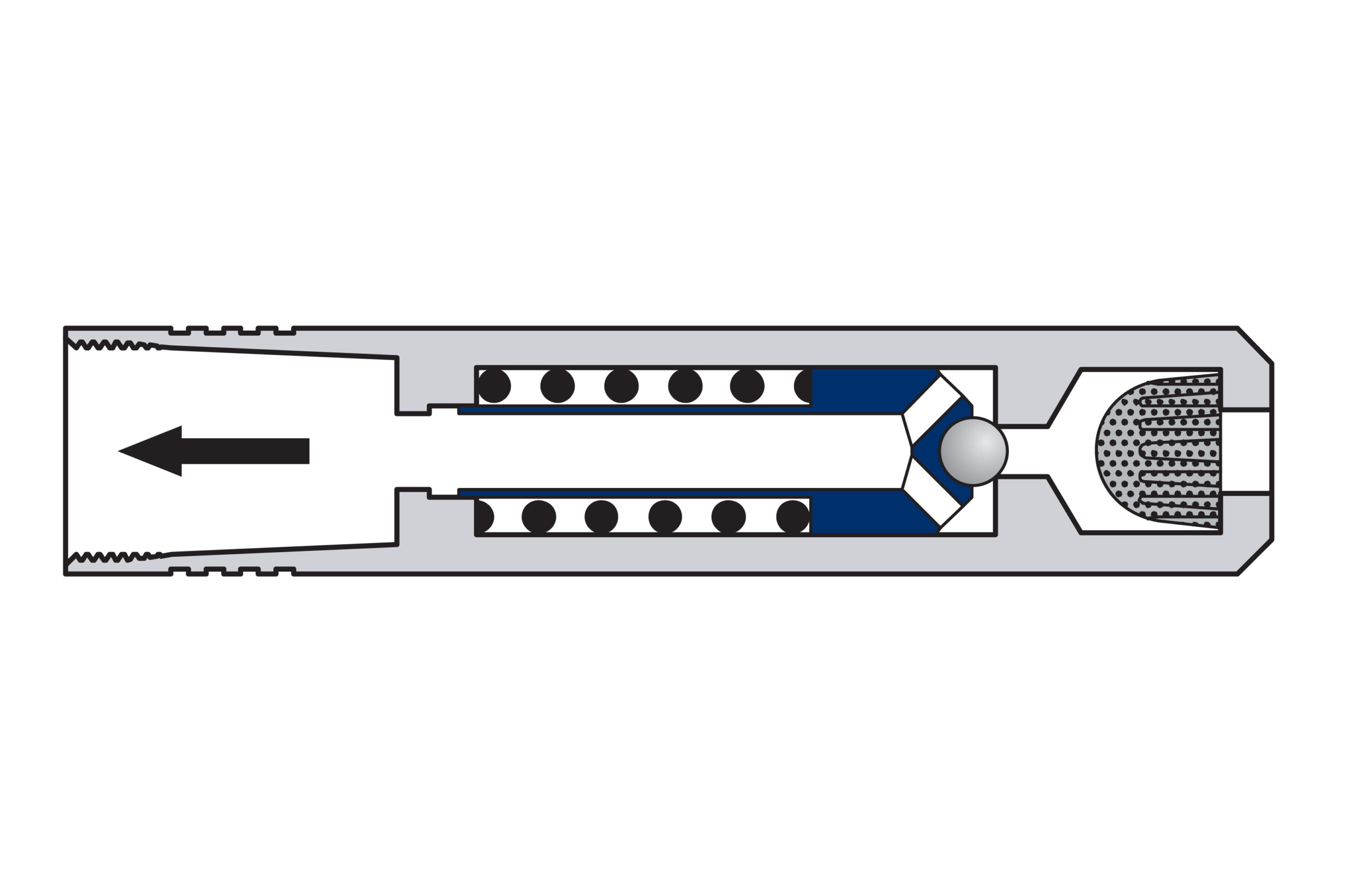

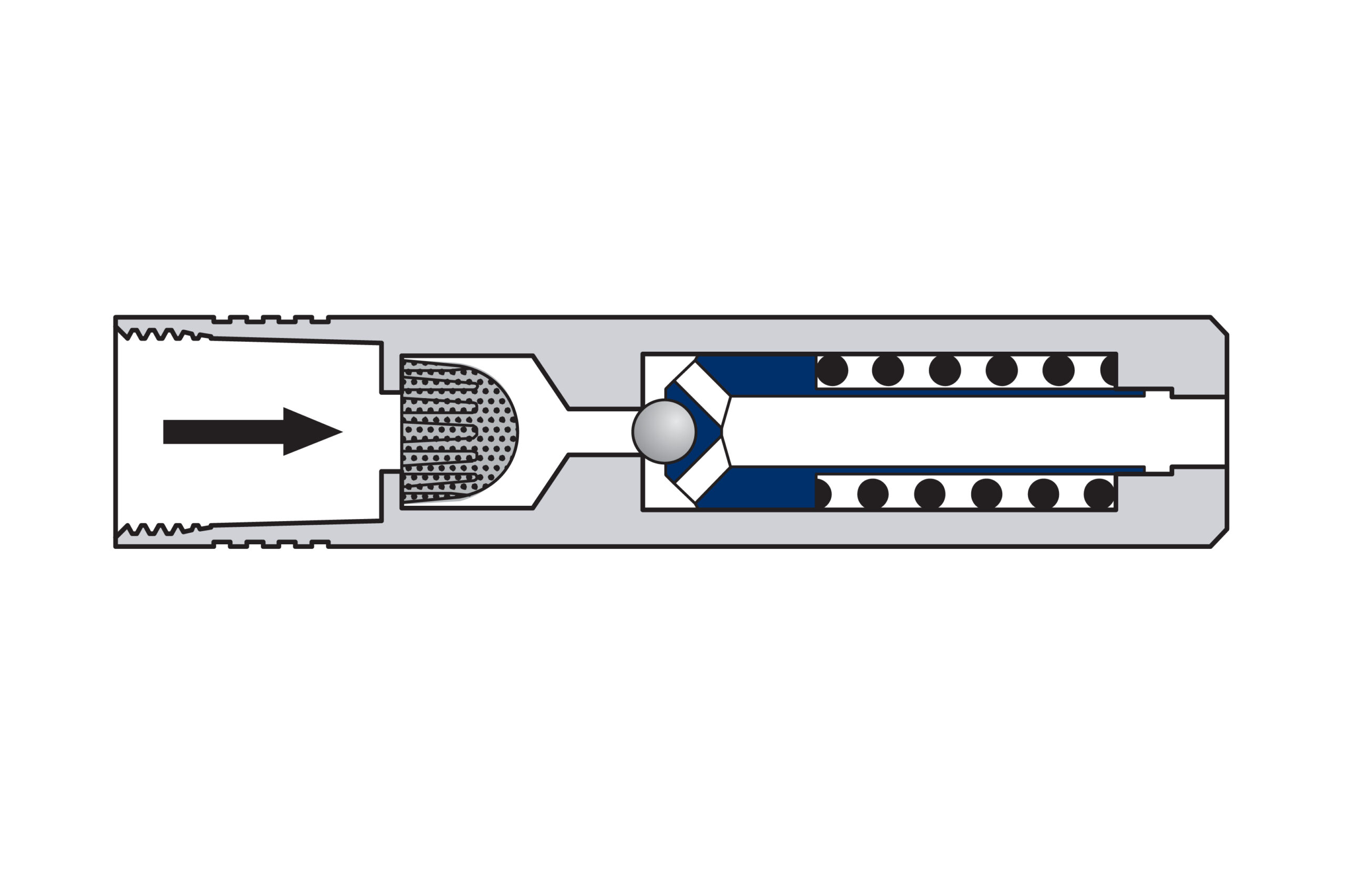

This high speed, high pressure, and direct-acting valve is constructed entirely of corrosion-resistant materials that are compliant with NACE specification MR0175/ISO 15156. Minimum cracking pressures are available from 3000-5900 psid. An integral safety screen is available for added protection.
| Characteristic | Specification |
|---|---|
| Leakage at Minimum Cracking Pressure | 1 mL / Minute Maximum |
| Leakage at Shutoff | 1 mL / Minute Maximum |
| Nominal System Pressure | up to 5000 psi |
| System Peak Pressure | 7500 psi Maximum |
| Screen Hole Size | 0.004 inches Nominal |
| Test Fluid | MIL-PRF-83282 at 85°F |
| PART | MATERIAL |
|---|---|
| Body | MP35N |
| Tube | MP35N |
| Spring Seat | MP35N |
| Pin | MP35N |
| Ball | MP35N |
| Ball Follower | MP35N |
| Spring | MP35N or Elgiloy® |
| Screen Assembly (Screened Version Only) | 316L CRES |
| Braze (Screened Version Only) | - |
This table below contains the part numbers and technical specifications for this product. If you have specific questions, need a quote, or would like to request a handbook or drawing, click the red request button in the column on the far right.
| PART NUMBER | DESCRIPTION |
|---|---|
| CUTA2810114C | Installation / Extraction Tool Set |
| PRRX0549720B | Replacement Pin |
