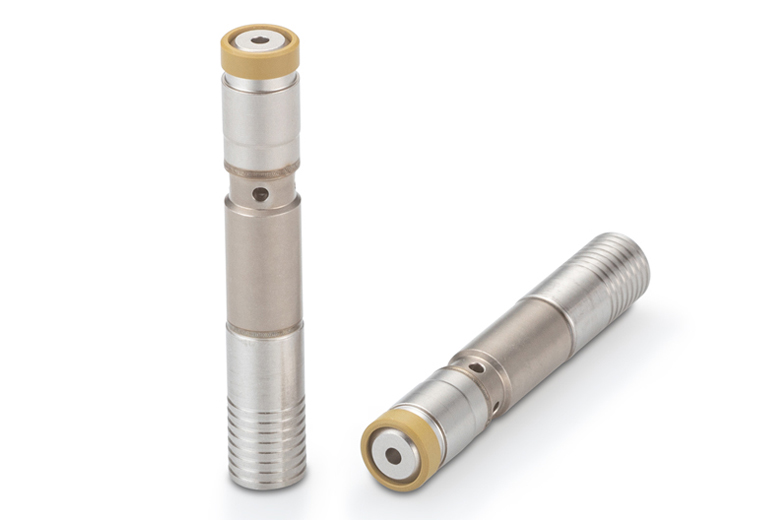

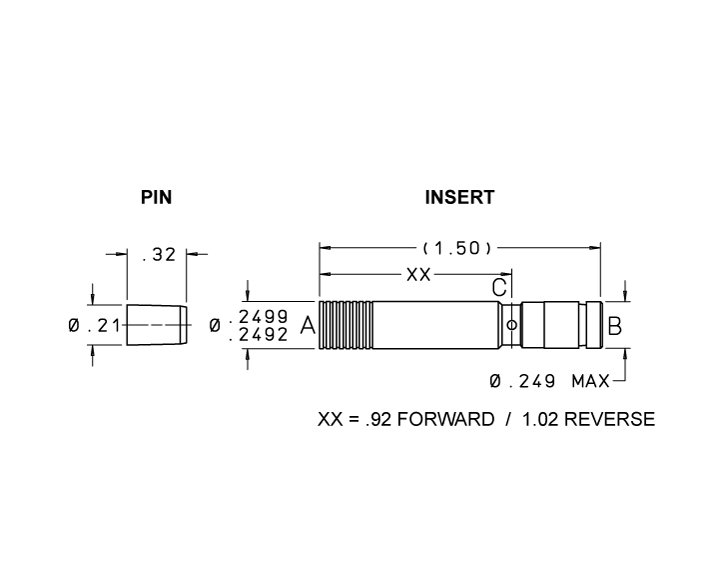

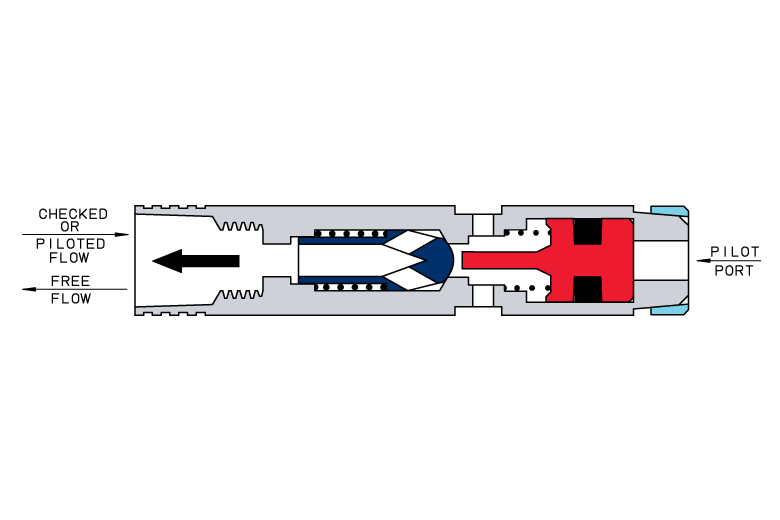

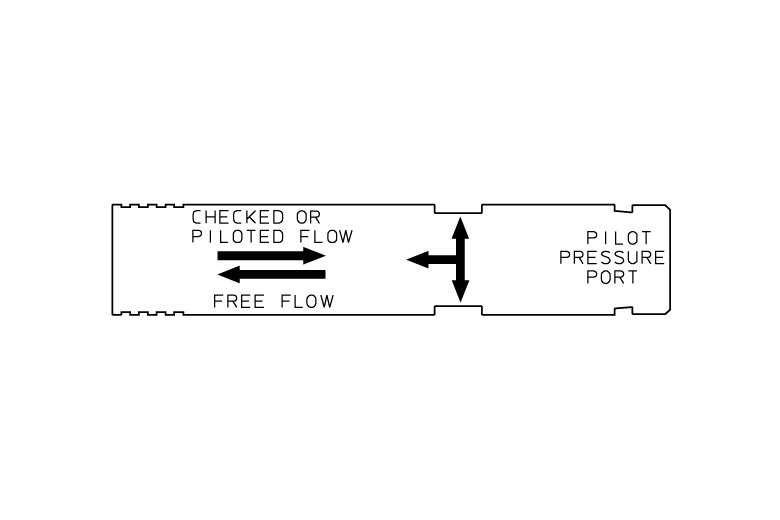

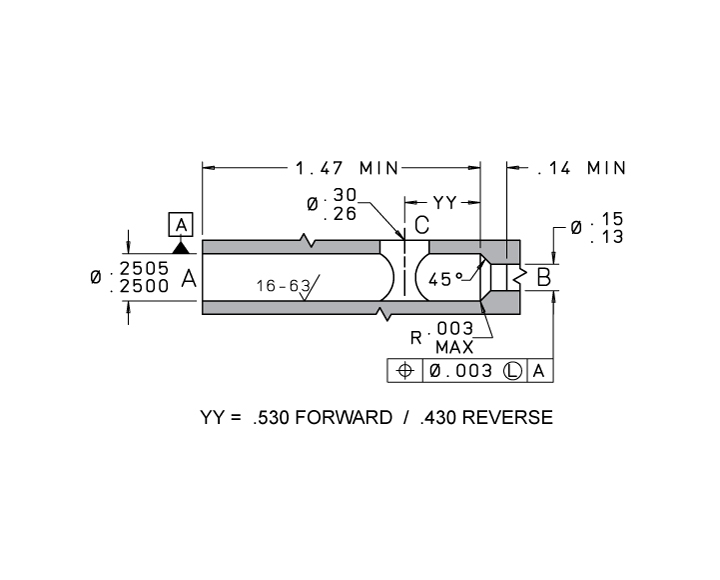

This high pressure, pilot-operated check valve is only 0.25 inches in diameter and 1.5 inches in length. The valve acts like a normal check valve until pressure is applied to the pilot port, at which point the valve allows flow in the direction that would normally be blocked.
| Characteristic | Specification |
|---|---|
| Cracking Pressure | 5 ± 3 psid |
| Minimum Pilot Ratio | 3:1 |
| Maximum Leakage in Checked Direction at 5 psid | 1 Drop / Minute |
| Maximum Leakage in Checked Direction at 1000-5000 psid | 1 Drop / Hour |
| Pilot Piston Leakage | 1 Drop / Minute Maximum at 5000 psid |

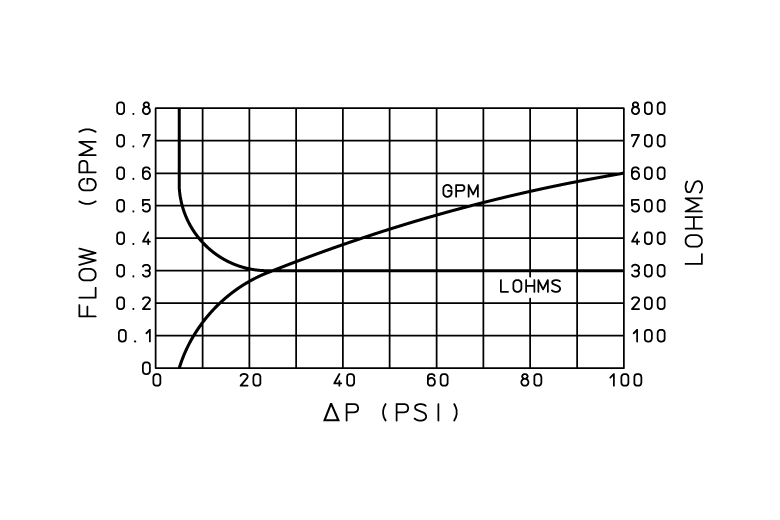

| Lohm Rate at 15 psid and Greater | 300 Lohms Maximum |
| Nominal System Pressure | Up to 5000 psi |
| Nominal Weight | 7 grams |
| Test Fluid | MIL-PRF-83282 at 85°F |
| PART | MATERIAL | SPECIFICATION |
|---|---|---|
| Body | 304 CRES | AMS 5639 |
| Poppet | 15-5PH CRES | AMS 5659 |
| Springs | 17-7PH CRES | AMS 5678 |
| Pilot Piston | 13-8 MO CRES | AMS 5629 |
| Pin | 17-4PH CRES | AMS 5643 |
| Compression Seal | Polyimide or Polyamide-Imide | - |
This table below contains the part numbers and technical specifications for this product. If you have specific questions, need a quote, or would like to request a handbook or drawing, click the red request button in the column on the far right.
| PART NUMBER | DESCRIPTION |
|---|---|
| CUTX0503050B | Installation / Extraction Tool Set |
| CHFA2500003A | Replacement Pin |
| CPRA2500009A | Replacement Polyamide-imide Compression Seal Part Number |
| CPRA2500109A | Replacement Polyimide Compression Seal Part Number |
From plugs to solenoid valves, there’s a vast array of products that The Lee Company can offer. If you’d like to discuss the best solution for your specific application or to learn more about our capabilities, use-cases, or quality standards, contact your local Lee sales engineer.
Your download has started.
We’re always ready to be your engineering partner. Fill out this form below so we can provide the solution you need.
We have received your inquiry and a member of our team will be in contact shortly to provide more information. Thank you for contacting The Lee Company!
The Lee Company has developed the Lohm Laws for defining and measuring resistance to fluid flow. The Lohm is defined such that 1 Lohm will flow 100 GPM of water with a pressure drop of 25 psi at a temperature of 80°F.
Always verify flow calculations by experiment.
