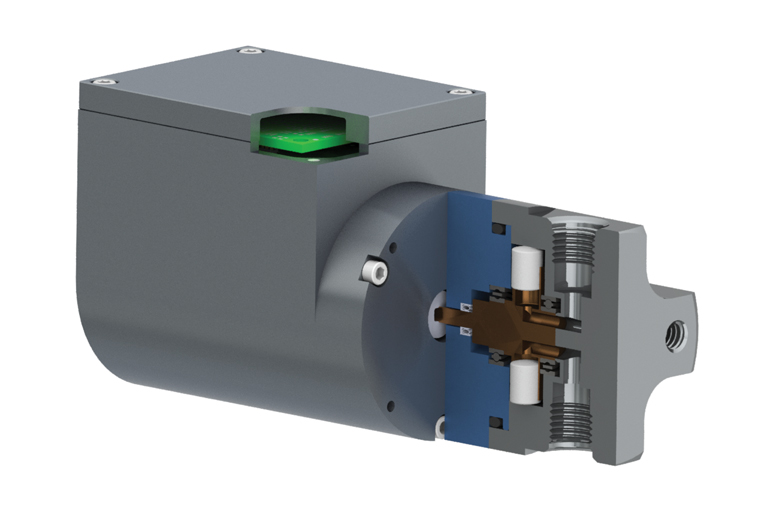

This radial piston design aids in self-priming at altitude and reduces cavitation. It includes integrated control electronics that allow full variable speed control for unparalleled flexibility. In addition, intelligence is built into the pump module to provide operational feedback such as pump speed, motor current, and fault monitoring.
| CHARACTERISTIC | SPECIFICATION |
|---|---|
| Speed Command Voltage (SCV) | 820 RPM/Volt Nominal |
| Maximum Speed | 8.0 V SCV (6560 RPM) |
| Minimum Speed | 2.5 V SCV (2050 RPM) |
| Rated Operation | 0.519 GPM Minimum MIL-PRF-7024, 7.5 V SCV Maximum, 100 psid Minimum (200 PPH) |
| Maximum Pressure Rise | 100 psid Inlet to Outlet |
| Proof Pressure | 150 psig Case to Environment |
| Temperature | -40°F to 212°F |
| Supply Voltage | 12-36 VDC, 28 VDC Nominal (28 VDC Minimum Required to Achieve Rated Operation) |
| Power Consumption | 75 Watts Maximum at Rated Operation |
| Maximum Allowable Current (Continuous) | 5 amps |
| Maximum Allowable Current (Peak) | 10 amps for 2 Seconds Nominal |
| Weight | 2 lbs Nominal |
| Category | Materials |
|---|---|
| Wetted Surfaces | 7075 Anodized Aluminum 400 Series CRES 15-5PH CRES 17-7PH CRES 300 Series CRES Flourosilicone PTFE Phenolic Nickel-Aluminum-Bronze |
| Wiring | M27500 Cables Braided Shield ETFE Jacket AS22759/18 Conductors ETFE Insulation |
