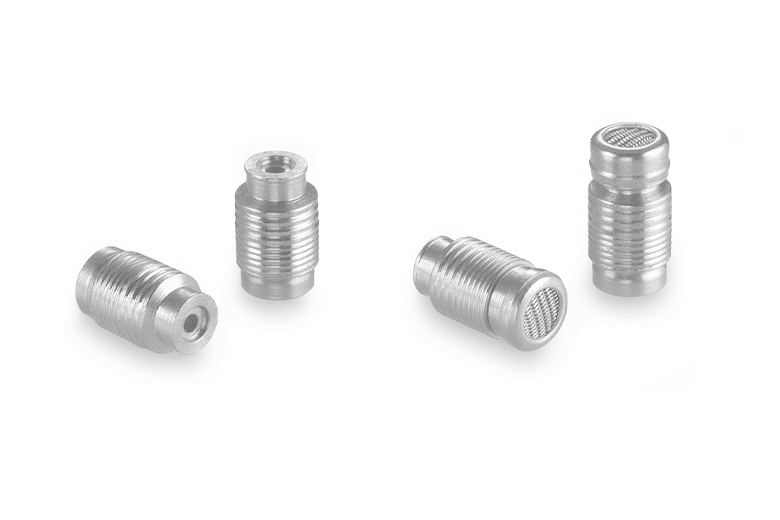

Photo 1 - 2.5mm-Insert--Orifice Liquid-Scrn-Unscrn

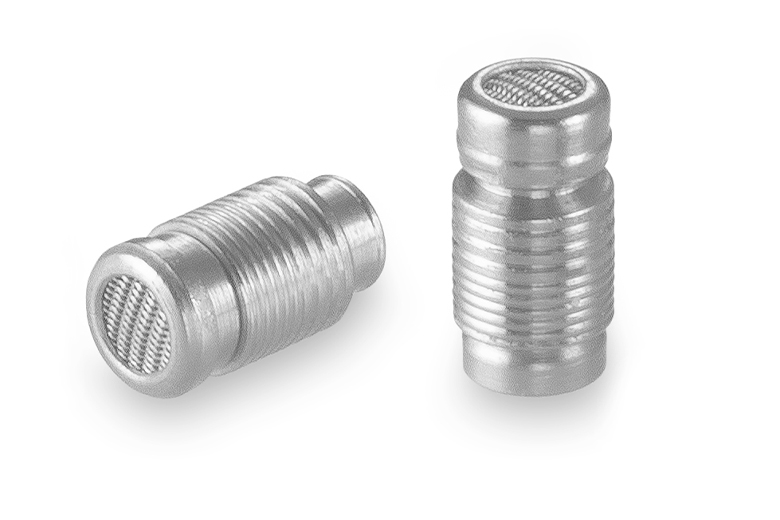

Photo 2 - 2.5mm-Insert-Orifice-Liquids-Scrn
Flow Restrictors

2.5 mm Insert Single-Orifice Restrictor for Liquids

Photo 1 - 2.5mm-Insert--Orifice Liquid-Scrn-Unscrn
Photo 2 - 2.5mm-Insert-Orifice-Liquids-Scrn
Photo 1 - 2.5mm-Insert--Orifice Liquid-Scrn-Unscrn
Photo 2 - 2.5mm-Insert-Orifice-Liquids-Scrn

This self-retained, threadless flow restrictor is the smallest available, allowing designers to save space and weight in metal housings. The orifice is 100% flow tested on distilled water to ensure that every part is within ± 5% of its nominal flow rate. Tighter tolerances are available as specials. To increase accuracy, the orifice is tested in the direction of use. An integral safety screen is incorporated for configurations with an orifice diameter of 0.5 mm (0.020 of an inch) or below. This restrictor is constructed entirely of stainless steel.

Contact a Lee Sales Engineer Find Another Product
Key Product Facts
  • Mounting Configuration:Insert - Into Metal
  • Diameter:2.54 mm
  • Metered Flow Range:1200 - 45,000 Lohms
  • Test Fluid:Distilled Water
  • Maximum Working Pressure:21 MPa (In Aluminum)
For More Information

Product Information

General Performance
Characteristic Specification
Lohm Rate Tolerance ± 5%
Test Fluid Distilled Water
Maximum Working Pressure 21 MPa (In Aluminum)
Designed for Installation Into Metals, Such as Aluminum, Brass, Cast Iron, Stainless Steel, and Steel
Materials
COMPONENT MATERIAL
Body 303 Stainless Steel
Pin, Unscreened 416 Stainless Steel
Pin, Screened 303 Stainless Steel
Screen 316 Stainless Steel
Screen Body 303 Stainless Steel
Cross Section Views

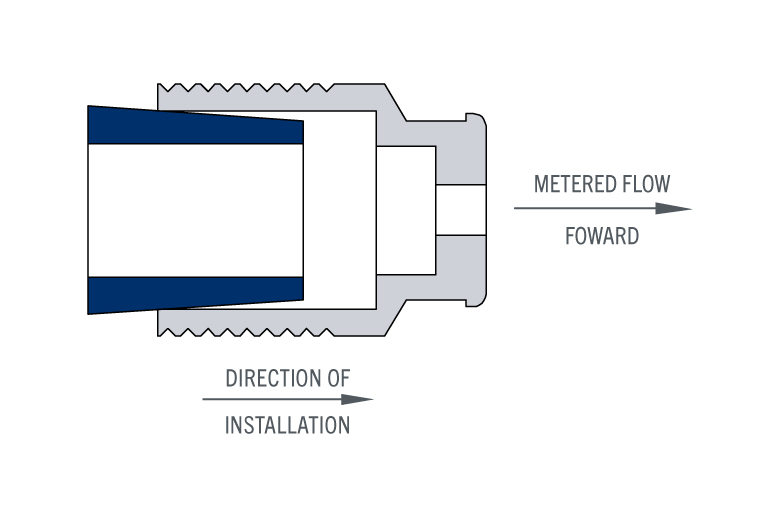

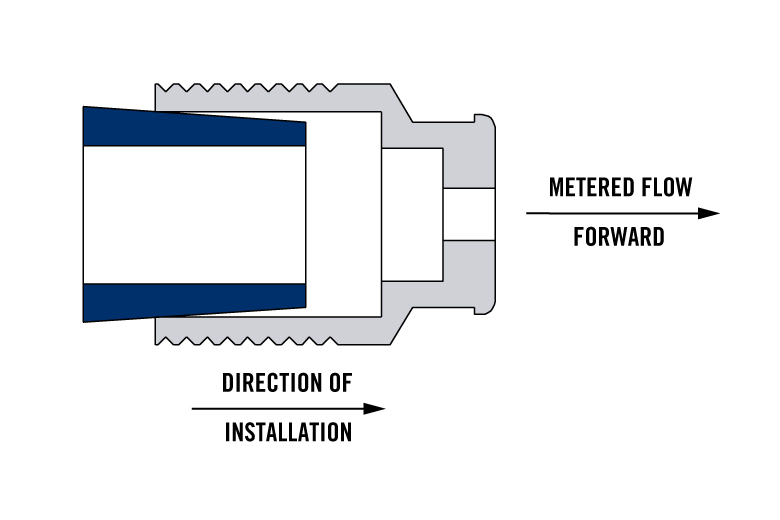

Cross Section 1, 2.5 mm Insert Orifice For Liquids
Unscreened Metered Flow Forward Configuration

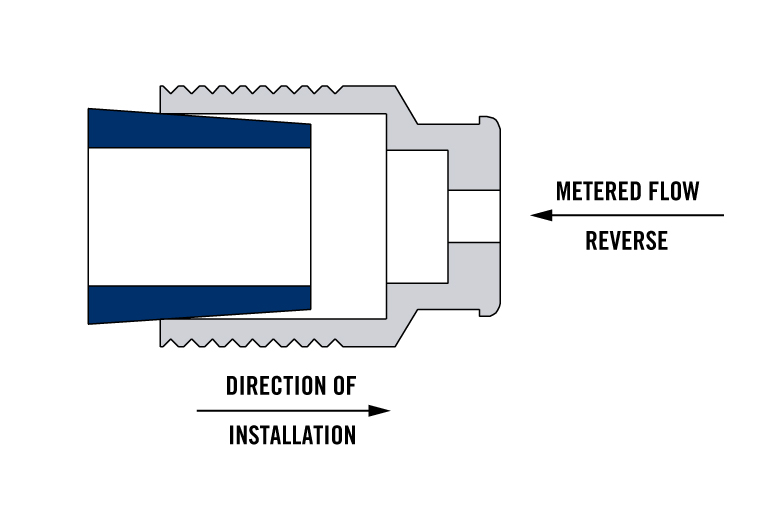

Cross Section 2, 2.5 mm Insert Orifice For Liquids

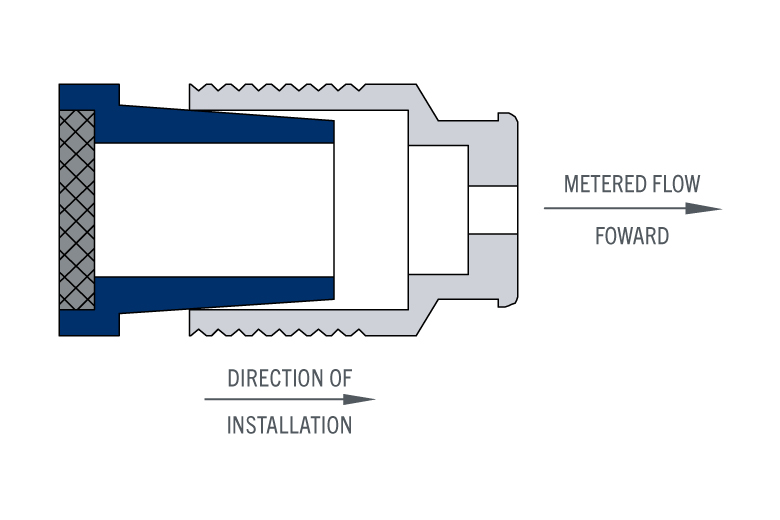

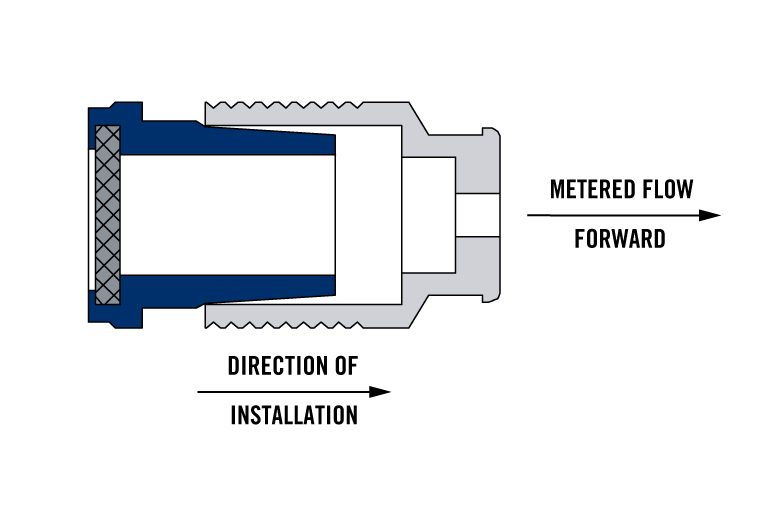

Cross Section 3, 2.5 mm Insert Orifice For Liquids
Dimensional Views

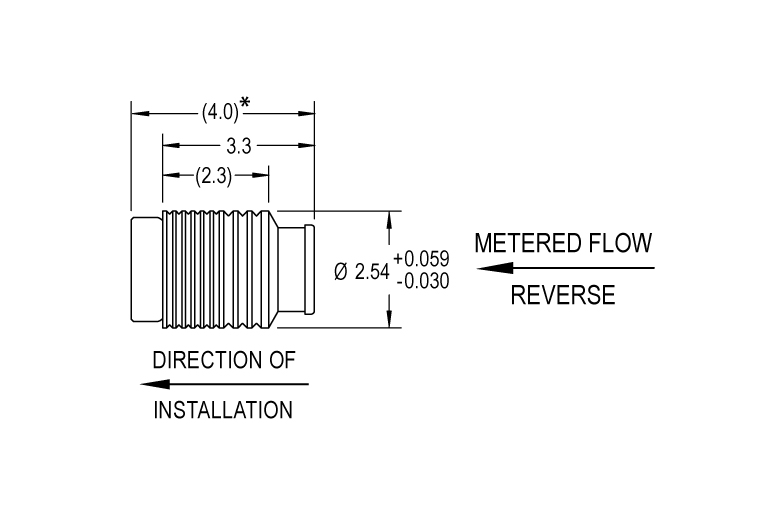

2D 1, 2.5 mm Insert Orifice For Liquids
Unscreened Metered Flow Forward Configuration
This image is for reference only. All dimensions are in millimeters.
*Overall length before installation.

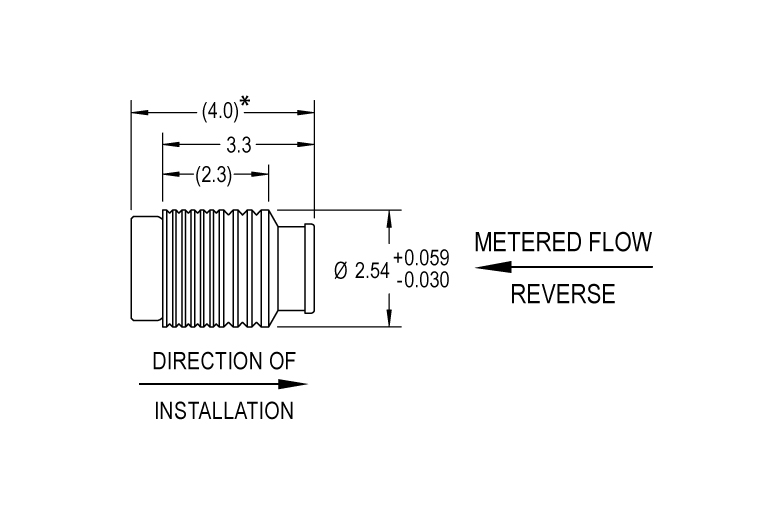

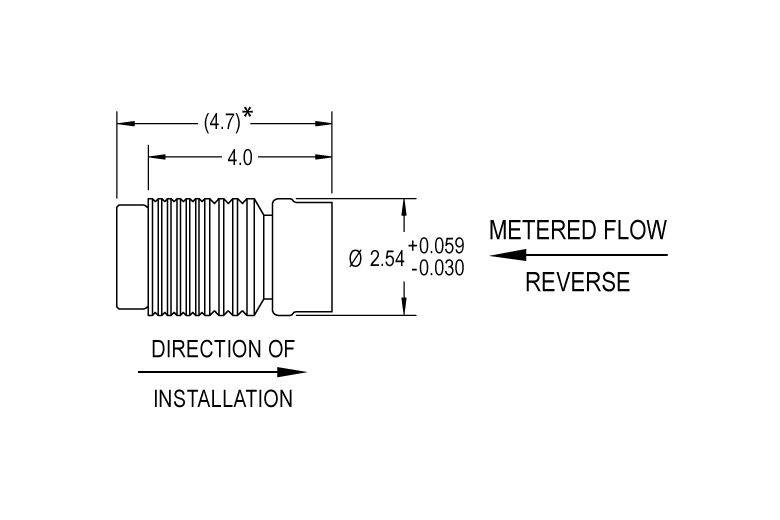

2D 2, 2.5 mm Insert Orifice For Liquids

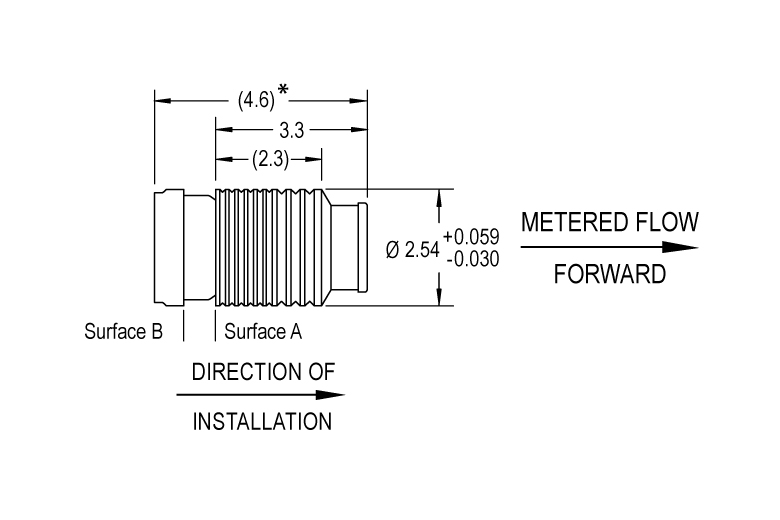

2D 3, 2.5 mm Insert Orifice For Liquids
2D 4, 2.5 mm Insert Orifice For Liquids
Installation Hole Details

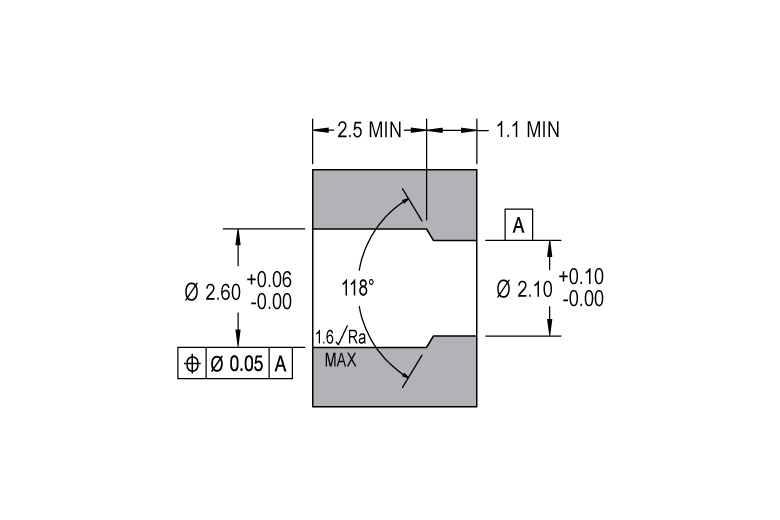

Installation Hole 1, 2.5 mm Insert Orifice For Liquids
Unscreened Metered Flow Forward and Reverse Configurations
Installation Hole Drawing Number: 1INST025565S
This image is for reference only. All dimensions are in millimeters.

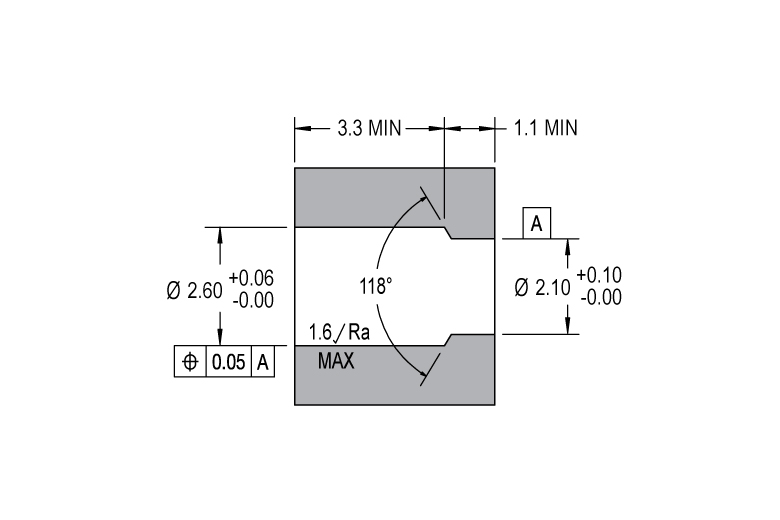

Installation Hole 2, 2.5 mm Insert Orifice For Liquids
Installation Hole 3, 2.5 mm Insert Orifice For Liquids

Part Numbers & Specifications

This table below contains the part numbers and technical specifications for this product. If you have specific questions, need a quote, or would like to request a handbook or drawing, click the red request button in the column on the far right.

Part Numbers & Specifications
PART NUMBER FLOW DIRECTION LOHM RATE SCREEN MICRON RATING APPROXIMATE WEIGHT (g) INSTALLATION HOLE DRAWING NUMBER Request Information
RILF2551012S Forward 1200 Lohms N/A 0.08 1INST025565S Request
RILF2551015S Forward 1500 Lohms N/A 0.08 1INST025565S Request
RILF2551020S Forward 2000 Lohms N/A 0.08 1INST025565S Request
RILF2551025S Forward 2500 Lohms N/A 0.08 1INST025565S Request
RILF2551030S Forward 3000 Lohms N/A 0.08 1INST025565S Request
RILF2551040S Forward 4000 Lohms N/A 0.08 1INST025565S Request
RILF2551050S Forward 5000 Lohms N/A 0.08 1INST025565S Request
RILF2551060S Forward 6000 Lohms N/A 0.08 1INST025565S Request
RILF2553080S Forward 8000 Lohms 40 microns 0.1 1INST038333S Request
RILF2553100S Forward 10,000 Lohms 40 microns 0.1 1INST038333S Request
RILF2553120S Forward 12,000 Lohms 40 microns 0.1 1INST038333S Request
RILF2553150S Forward 15,000 Lohms 40 microns 0.1 1INST038333S Request
RILF2553200S Forward 20,000 Lohms 40 microns 0.1 1INST038333S Request
RILF2553250S Forward 25,000 Lohms 40 microns 0.1 1INST038333S Request
RILF2553300S Forward 30,000 Lohms 40 microns 0.1 1INST038333S Request
RILF2553400S Forward 40,000 Lohms 40 microns 0.1 1INST038333S Request
RILF2553450S Forward 45,000 Lohms 40 microns 0.1 1INST038333S Request
RILR2551012S Reverse 1200 Lohms N/A 0.08 1INST025565S Request
RILR2551015S Reverse 1500 Lohms N/A 0.08 1INST025565S Request
RILR2551020S Reverse 2000 Lohms N/A 0.08 1INST025565S Request
RILR2551025S Reverse 2500 Lohms N/A 0.08 1INST025565S Request
RILR2551030S Reverse 3000 Lohms N/A 0.08 1INST025565S Request
RILR2551040S Reverse 4000 Lohms N/A 0.08 1INST025565S Request
RILR2551050S Reverse 5000 Lohms N/A 0.08 1INST025565S Request
RILR2551060S Reverse 6000 Lohms N/A 0.08 1INST025565S Request
RILR2553080S Reverse 8000 Lohms 40 microns 0.1 1INST038336S Request
RILR2553100S Reverse 10,000 Lohms 40 microns 0.1 1INST038336S Request
RILR2553120S Reverse 12,000 Lohms 40 microns 0.1 1INST038336S Request
RILR2553150S Reverse 15,000 Lohms 40 microns 0.1 1INST038336S Request
RILR2553200S Reverse 20,000 Lohms 40 microns 0.1 1INST038336S Request
RILR2553250S Reverse 25,000 Lohms 40 microns 0.1 1INST038336S Request
RILR2553300S Reverse 30,000 Lohms 40 microns 0.1 1INST038336S Request
RILR2553400S Reverse 40,000 Lohms 40 microns 0.1 1INST038336S Request
RILR2553450S Reverse 45,000 Lohms 40 microns 0.1 1INST038336S Request

Installation & Accessories

Installation & Manufacturing Tools
Replacement Parts & Accessories
PART NUMBER DESCRIPTION
CCRT0029354S 2.5 mm Restrictor Installation Tool

CAD Envelopes

Resources

Get in touch

Questions?

From plugs to solenoid valves, there’s a vast array of products that The Lee Company can offer. If you’d like to discuss the best solution for your specific application or to learn more about our capabilities, use-cases, or quality standards, contact your local Lee sales engineer.

Please provide your information to access the content.

Thank You.

Your download has started.

Request Information for Part #

We’re always ready to be your engineering partner. Fill out this form below so we can provide the solution you need.

Thank you for your inquiry.

We have received your inquiry and a member of our team will be in contact shortly to provide more information. Thank you for contacting The Lee Company!

The Lee Company has developed the Lohm Laws for defining and measuring resistance to fluid flow. The Lohm is defined such that 1 Lohm will flow 100 GPM of water with a pressure drop of 25 psi at a temperature of 80°F.

Lohms for Liquids Lohms for Gases
