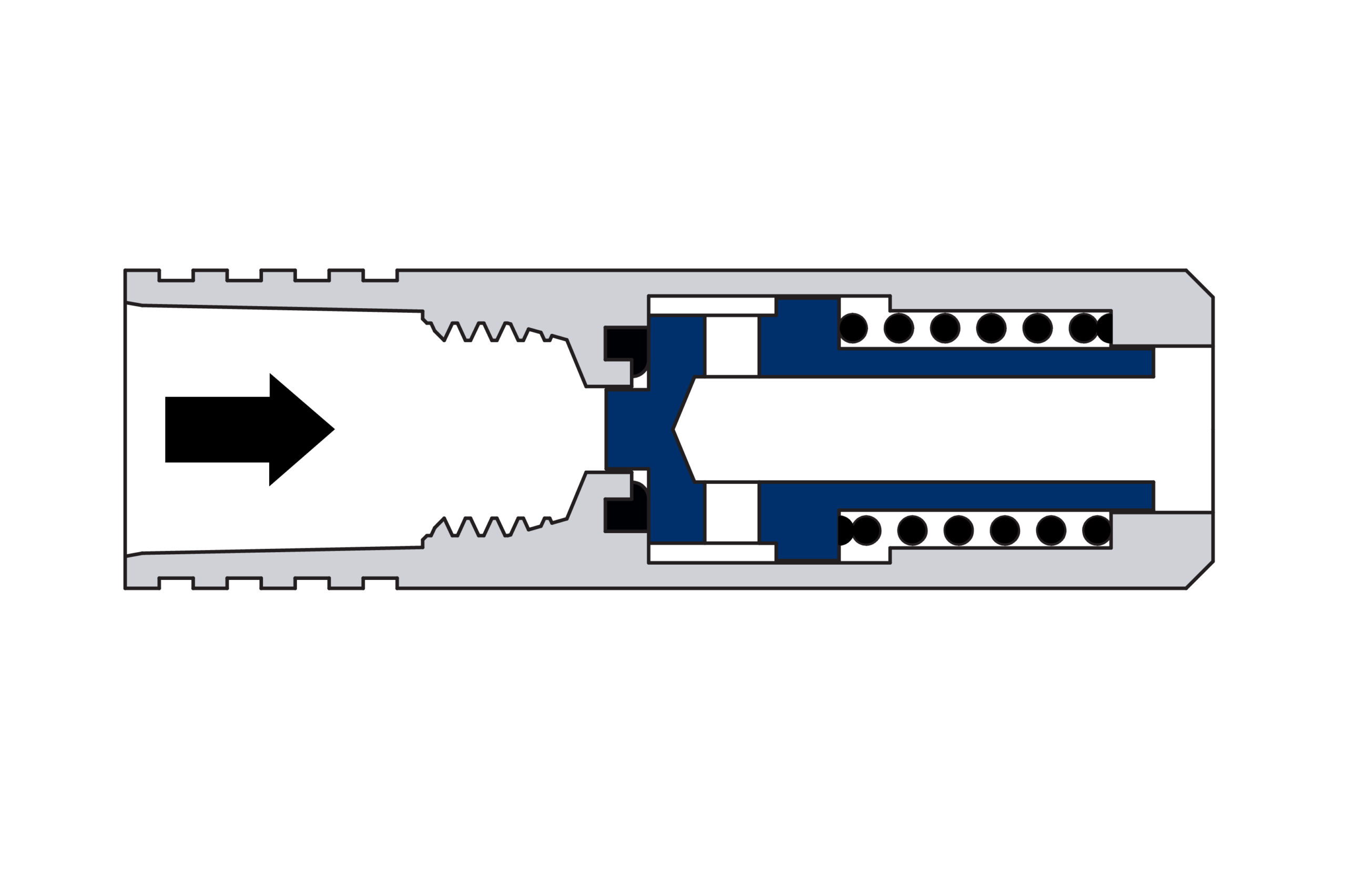

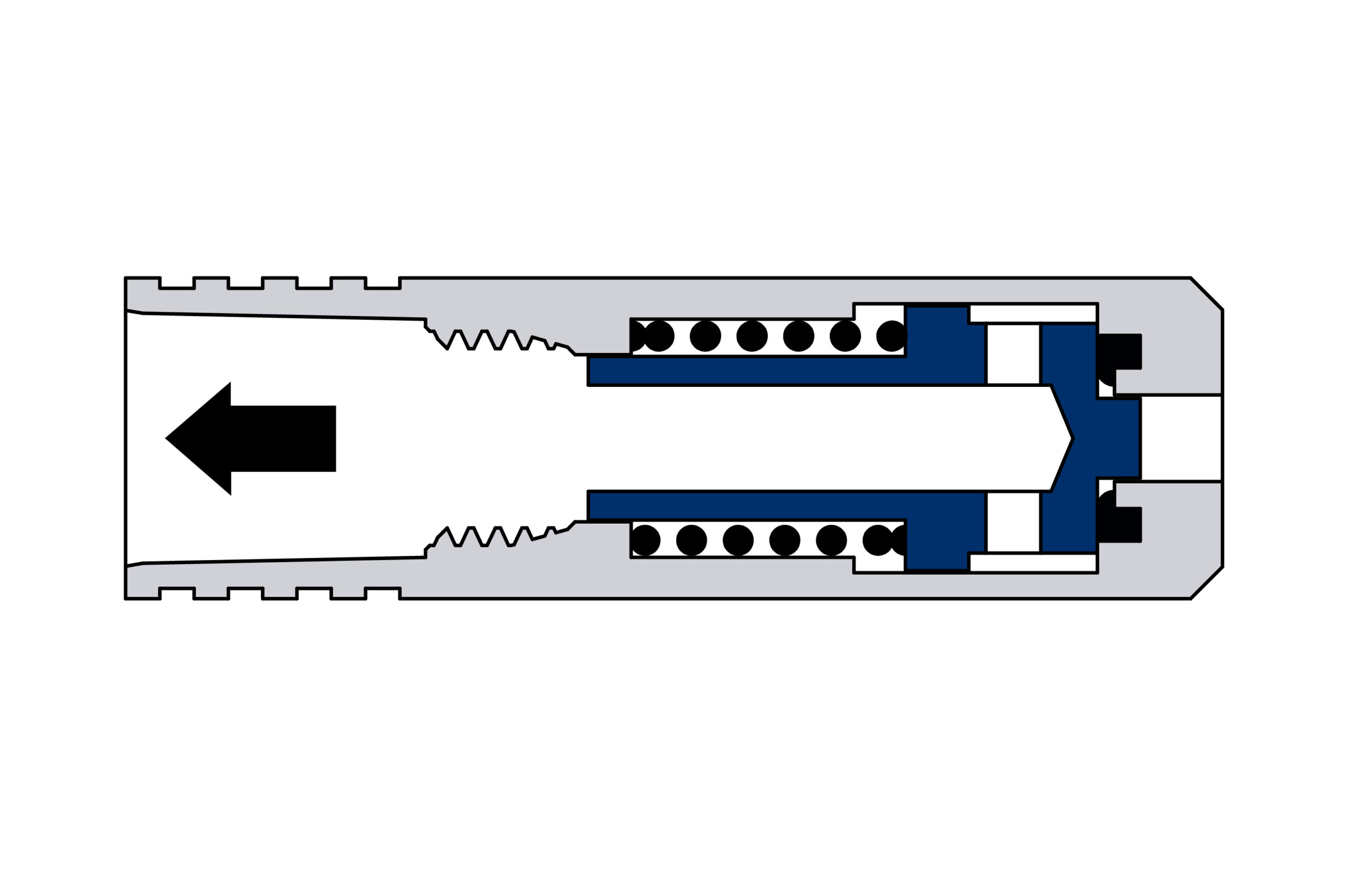

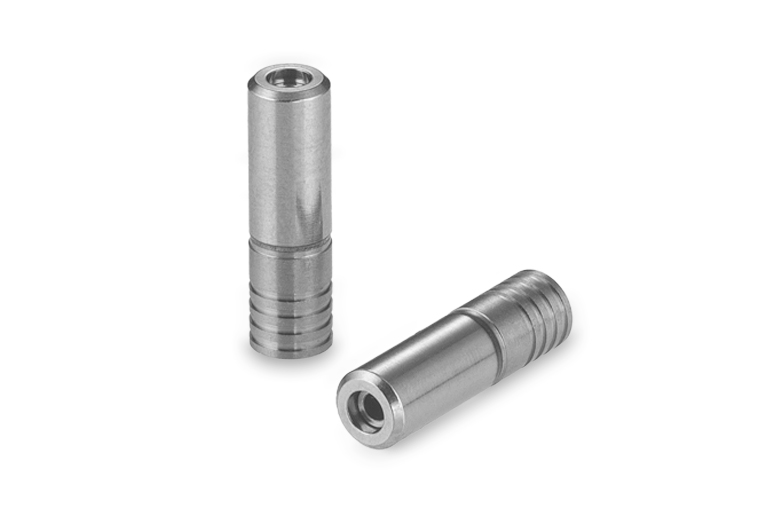

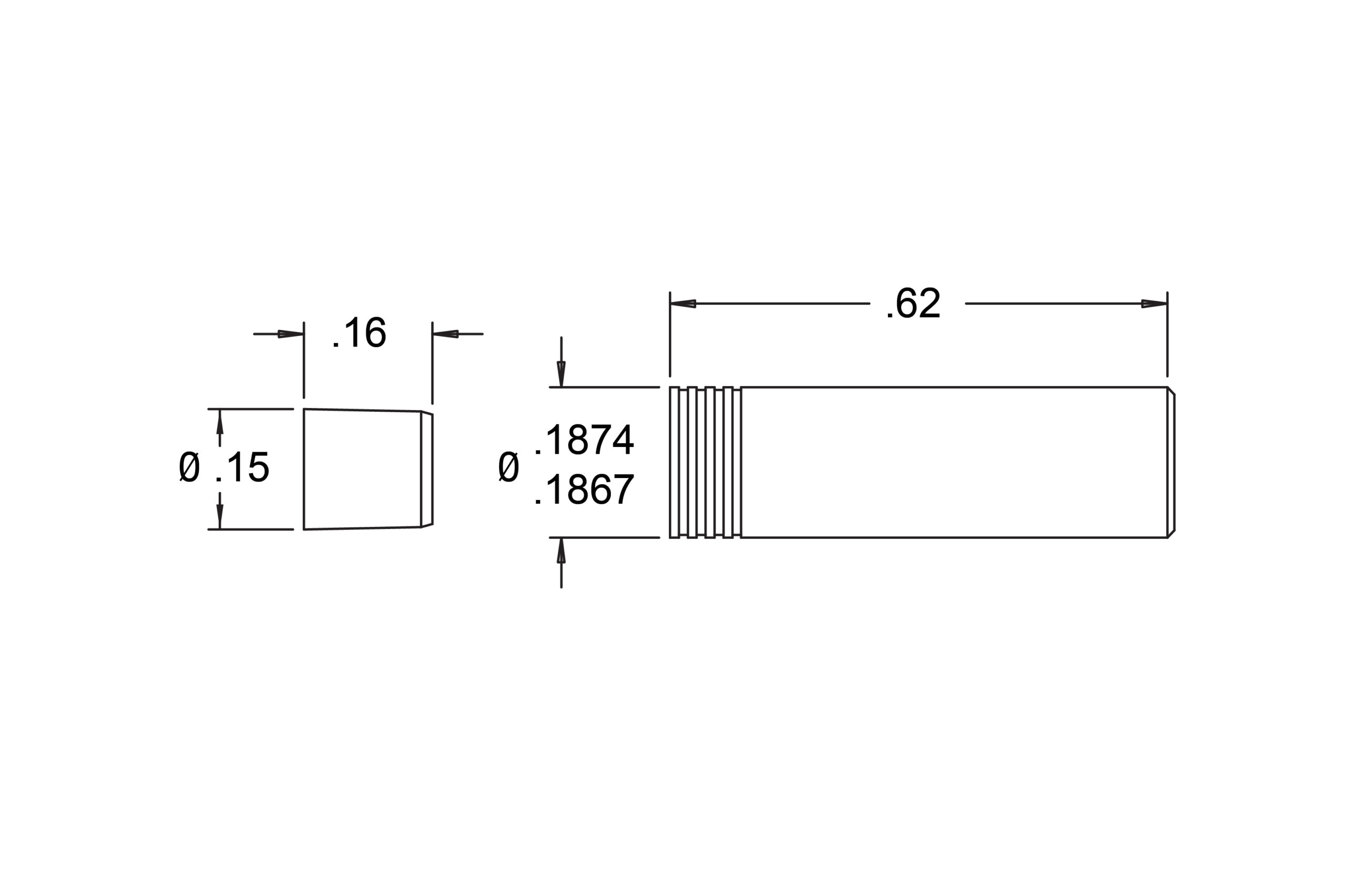

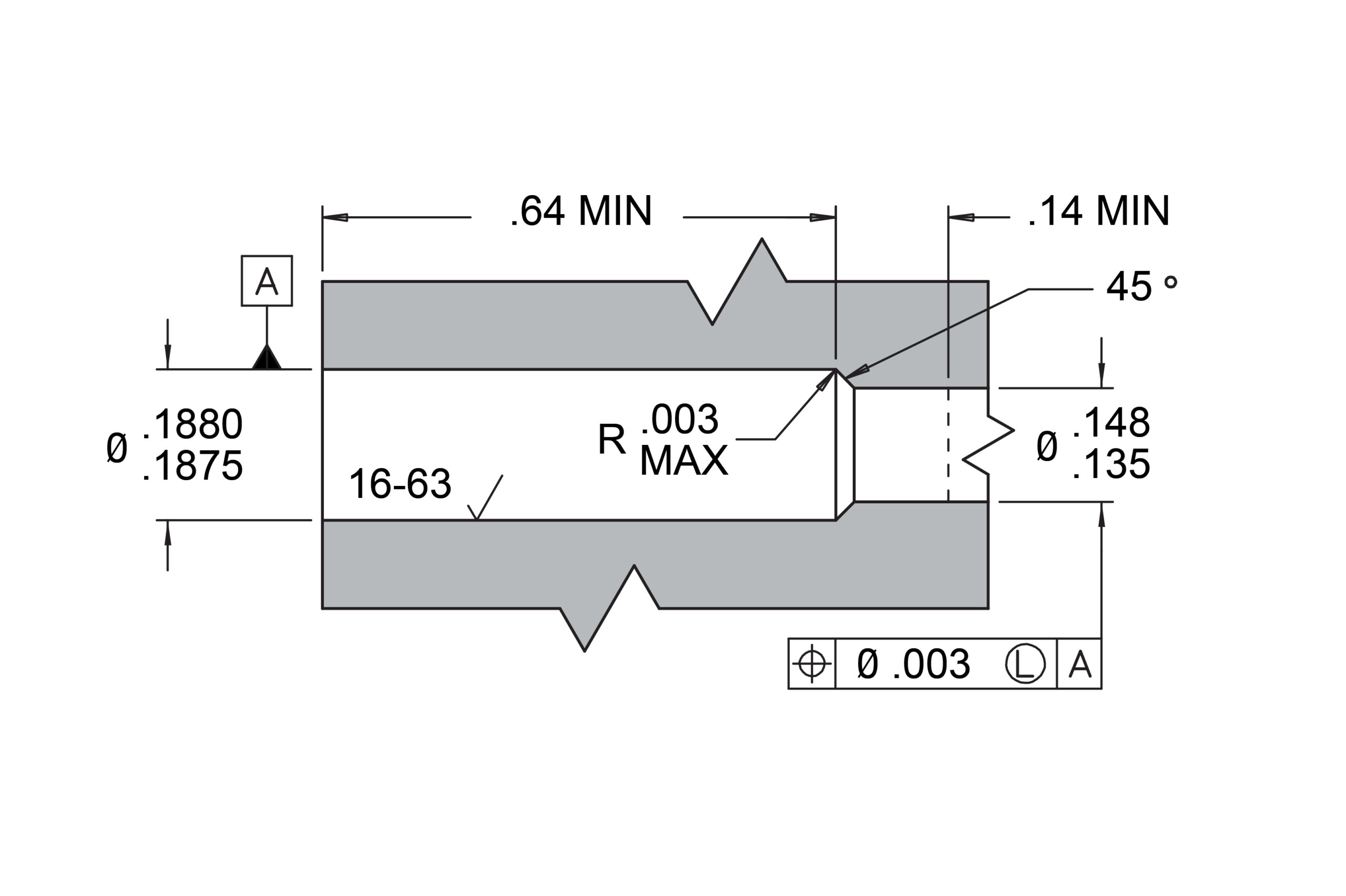

This direct-acting valve is ideally suited for low pressure hydraulic applications where a safety relief valve with extremely low leakage is needed to seal the system when closed. The valve’s fast opening response helps to prevent system damage from pressure spikes. Minimum cracking pressures are available from 20-100 psid.
| Characteristic | Specification |
|---|---|
| Leakage at Minimum Cracking Pressure | 0 Drops in a 1 Minute Test |
| Leakage at Minimum Shutoff Pressure | 0 Drops in a 1 Minute Test |
| Nominal Weight | 1.5 grams |
| Test Fluid | MIL-PRF-83282 at 85°F |
| PART | MATERIAL | SPECIFICATION |
|---|---|---|
| Body | 15-5PH CRES | AMS 5659 |
| Poppet | 303 CRES | QQ-S-763C |
| Spring | 17-7PH CRES | AMS 5678 |
| Optional Shims | 300 Series CRES | ASTM A 666 |
| Pin | 17-4PH CRES | AMS 5643 |
| Elastomeric Seat (Option 1) | Flourocarbon | AMS-R-83485 or AMS-R-83248 |
| Elastomeric Seat (Option 2) | EPDM | AMS-R-83285 |
This table below contains the part numbers and technical specifications for this product. If you have specific questions, need a quote, or would like to request a handbook or drawing, click the red request button in the column on the far right.
| PART NUMBER | DESCRIPTION |
|---|---|
| CUTA1870110C | Installation / Extraction Tool Set |
| CSFA1870003A | Replacement Pin |
From plugs to solenoid valves, there’s a vast array of products that The Lee Company can offer. If you’d like to discuss the best solution for your specific application or to learn more about our capabilities, use-cases, or quality standards, contact your local Lee sales engineer.
Your download has started.
We’re always ready to be your engineering partner. Fill out this form below so we can provide the solution you need.
We have received your inquiry and a member of our team will be in contact shortly to provide more information. Thank you for contacting The Lee Company!
The Lee Company has developed the Lohm Laws for defining and measuring resistance to fluid flow. The Lohm is defined such that 1 Lohm will flow 100 GPM of water with a pressure drop of 25 psi at a temperature of 80°F.
Always verify flow calculations by experiment.
