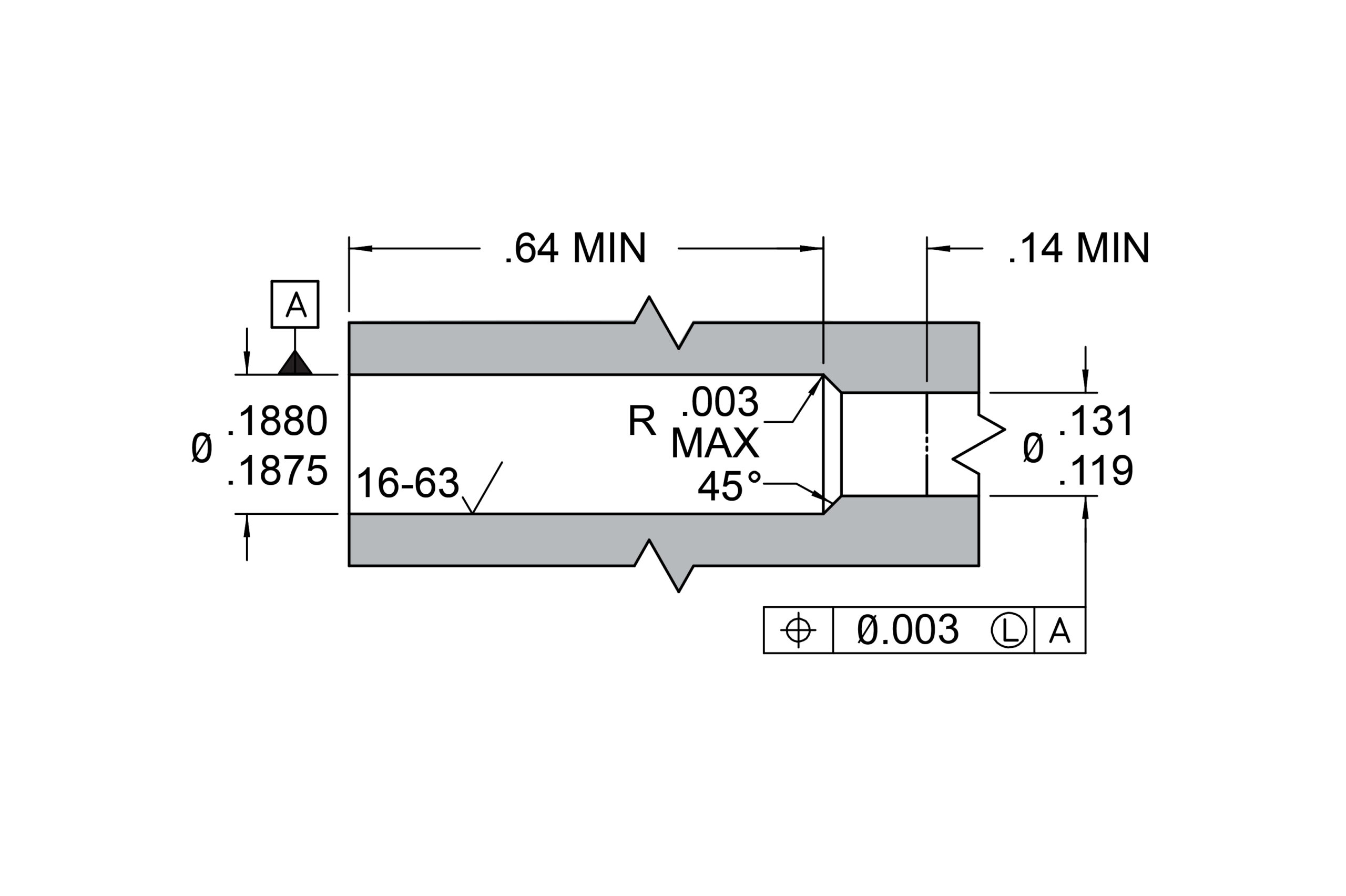

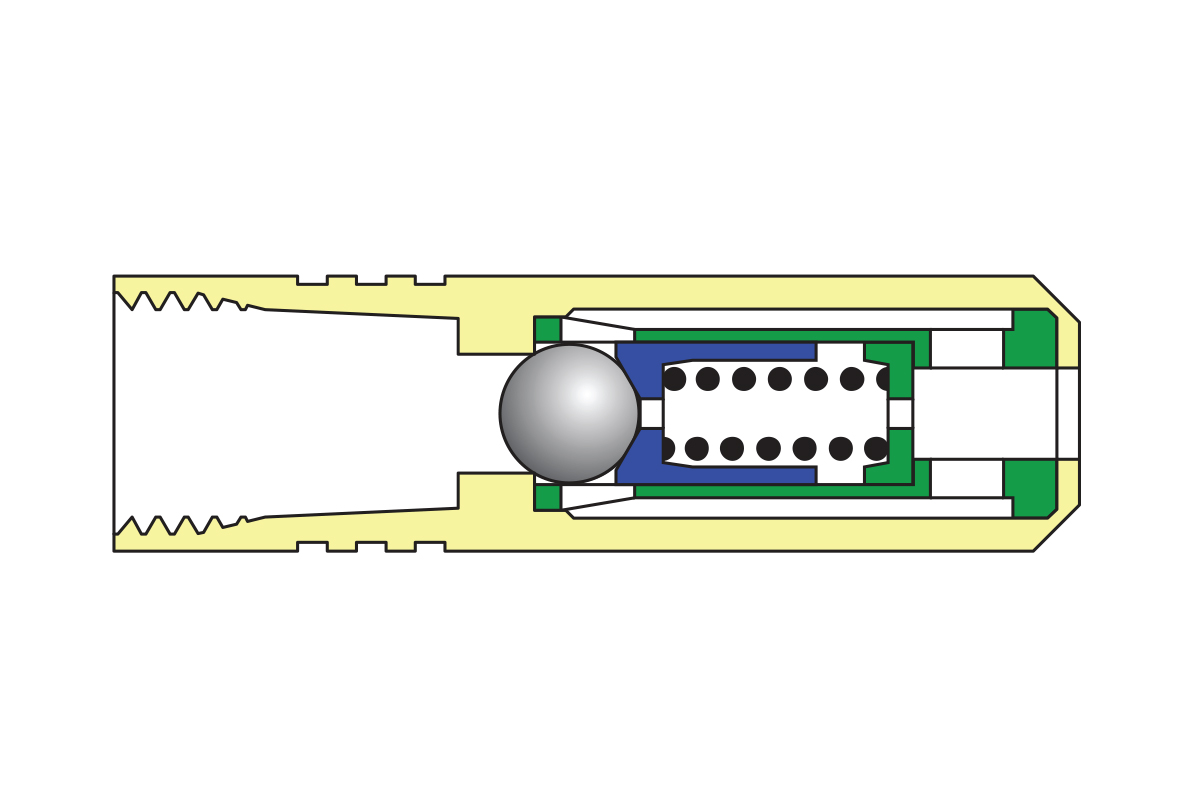

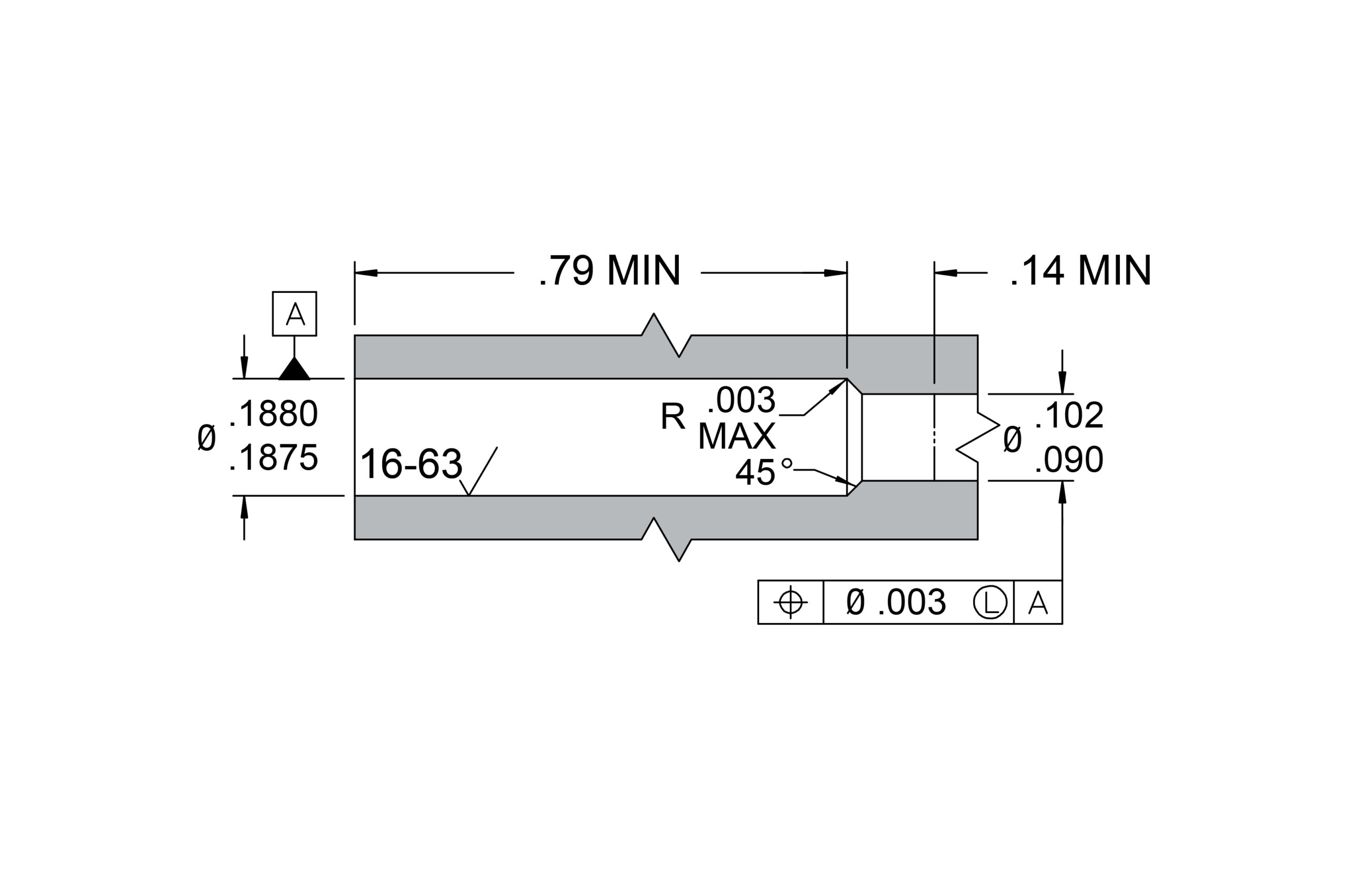

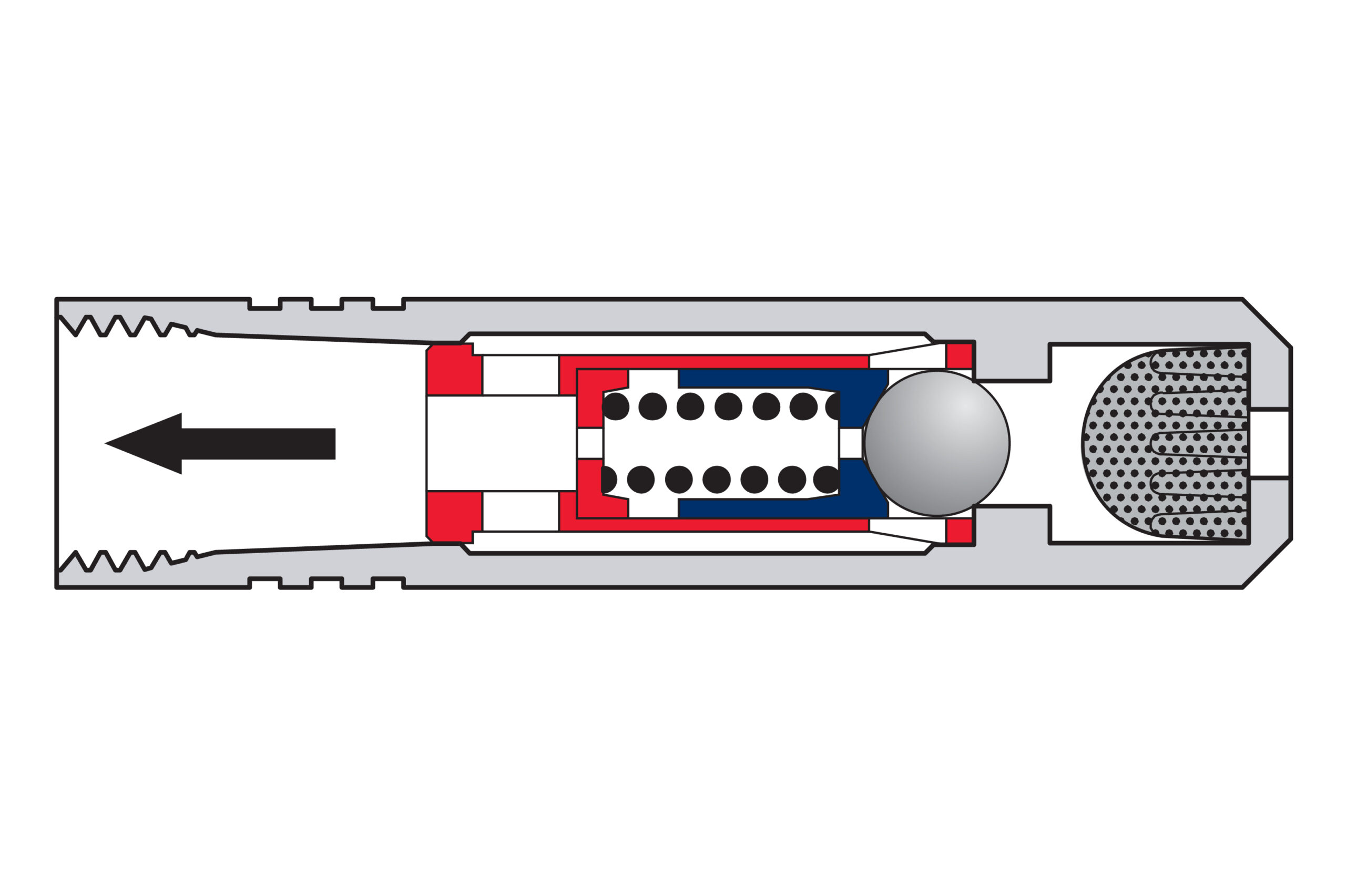

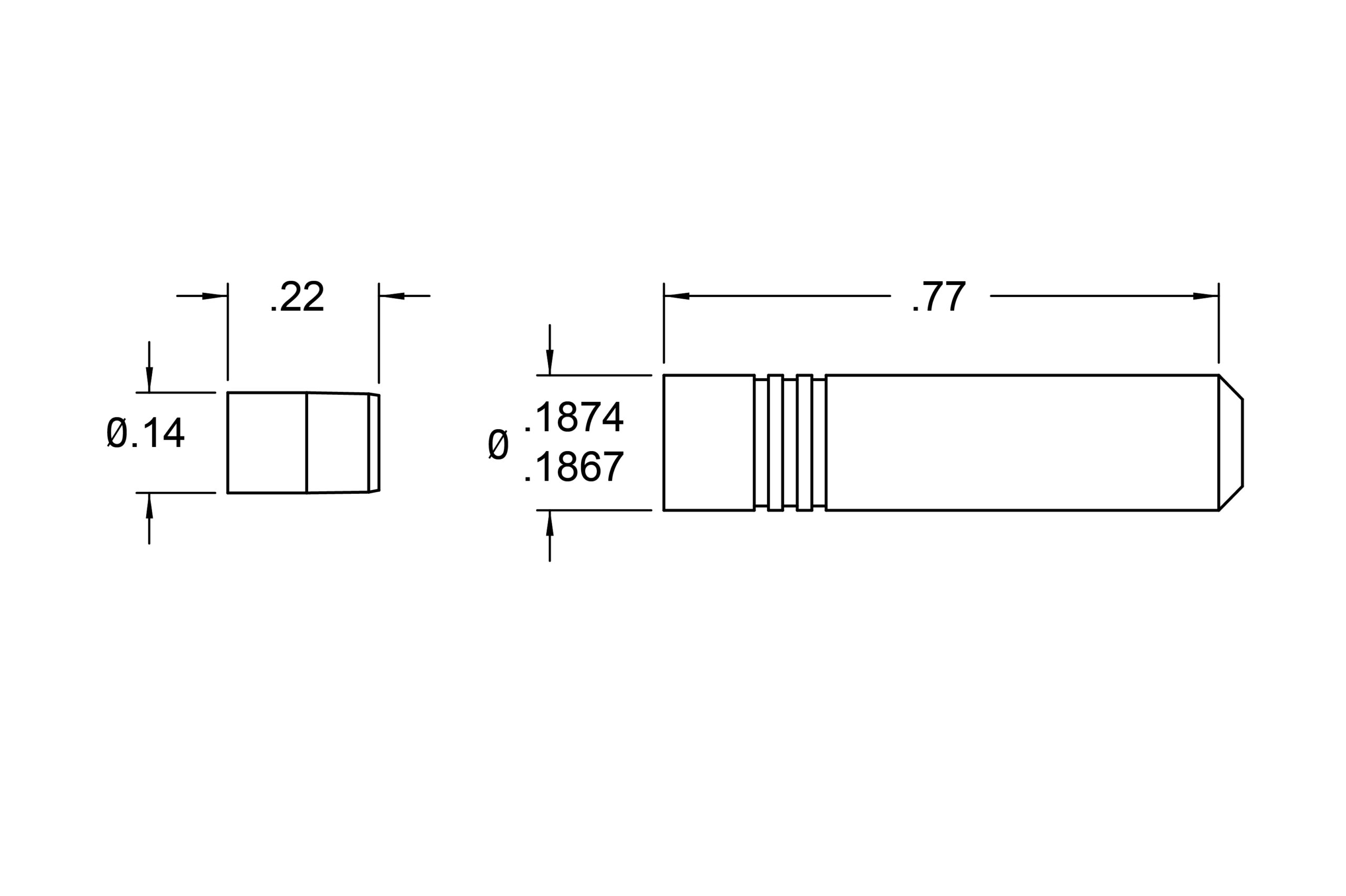

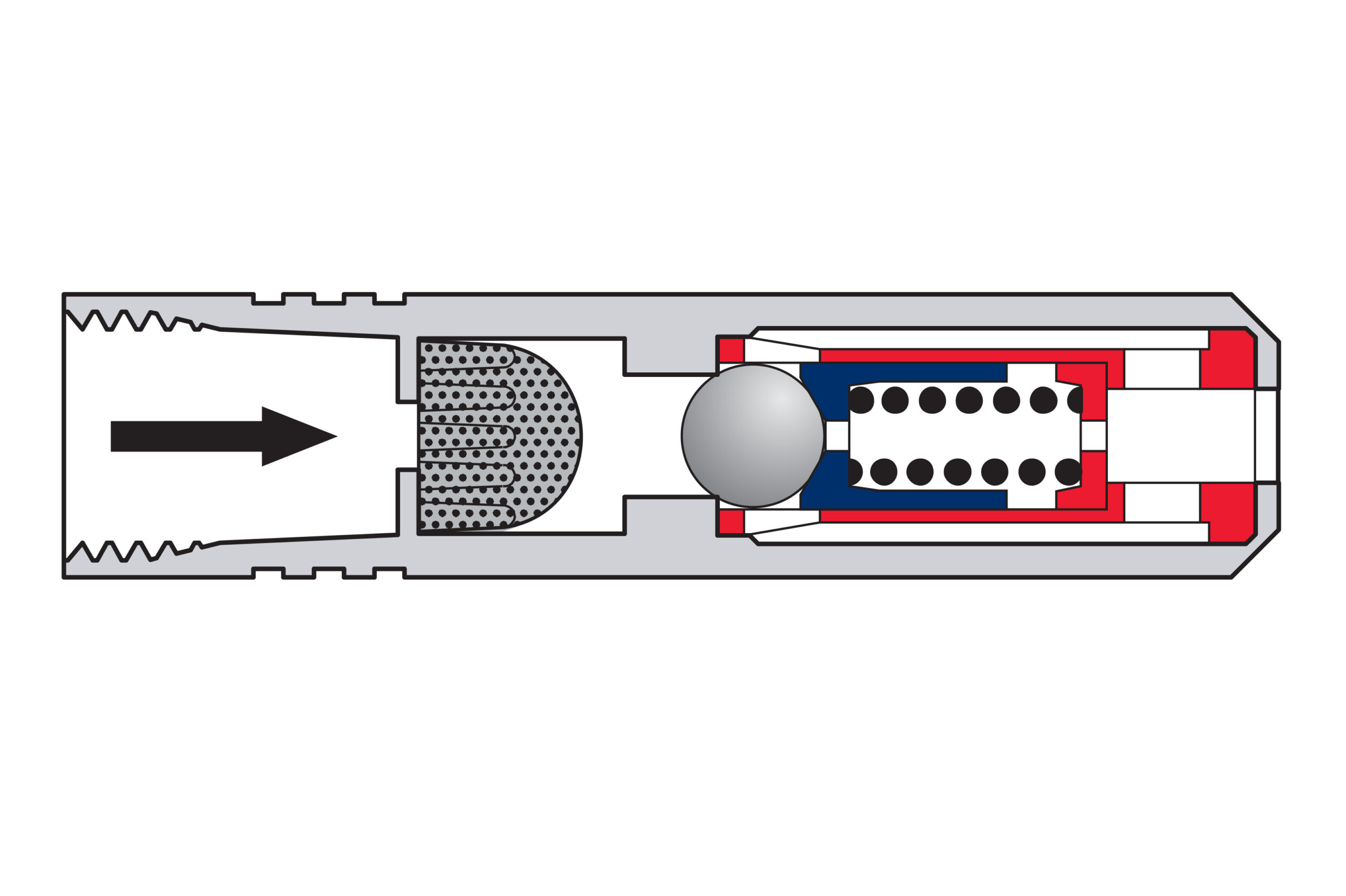

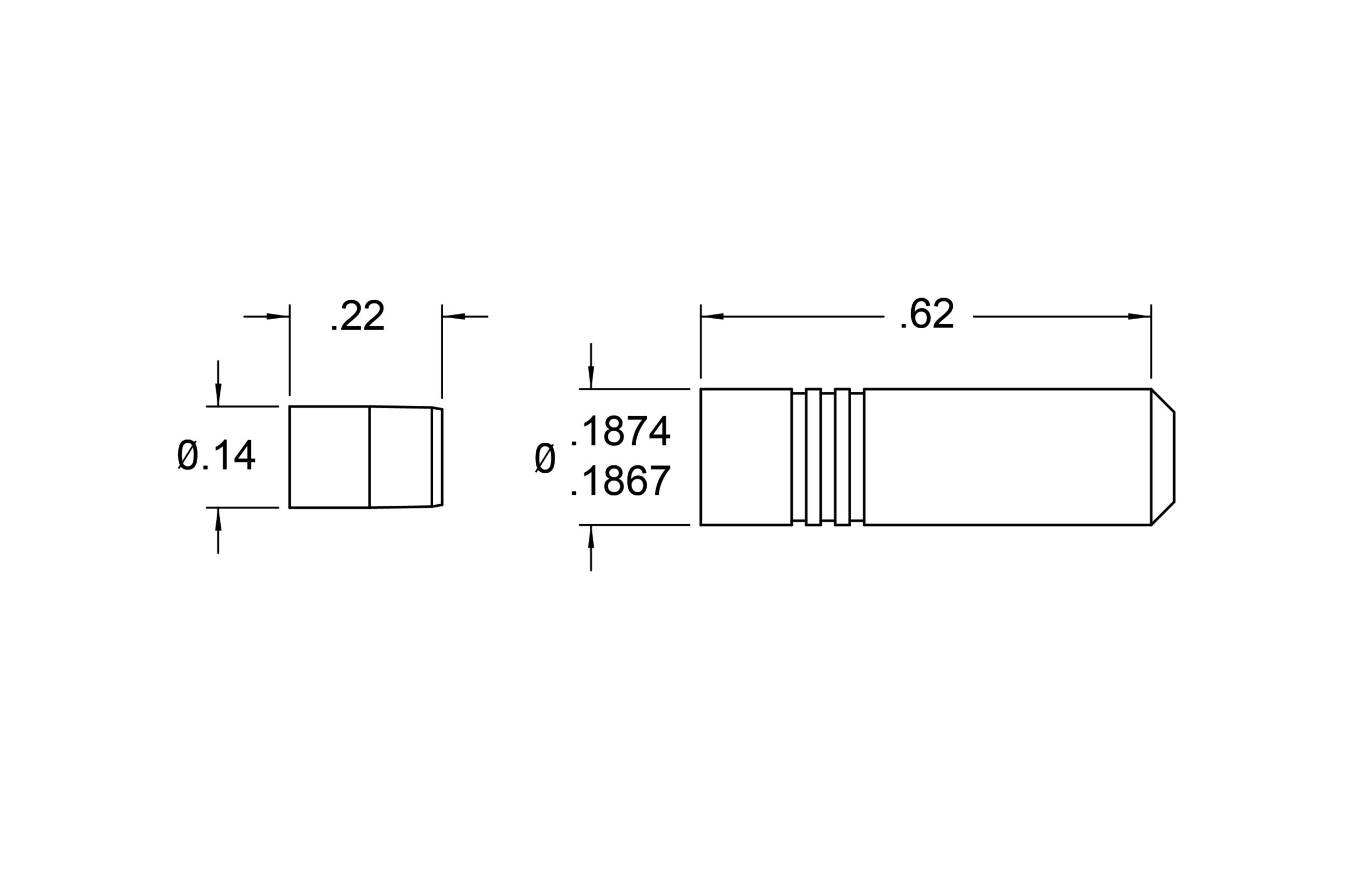

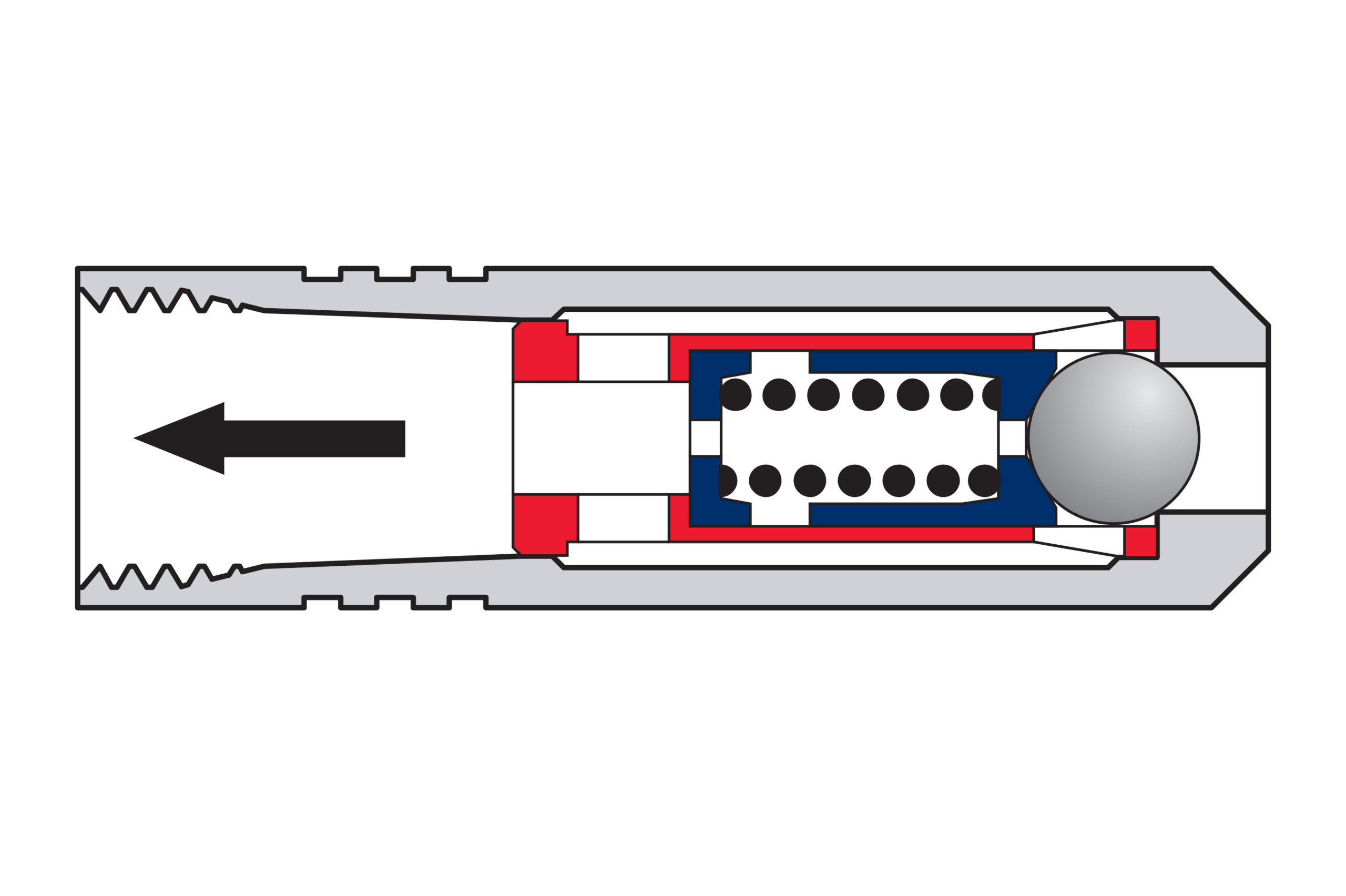

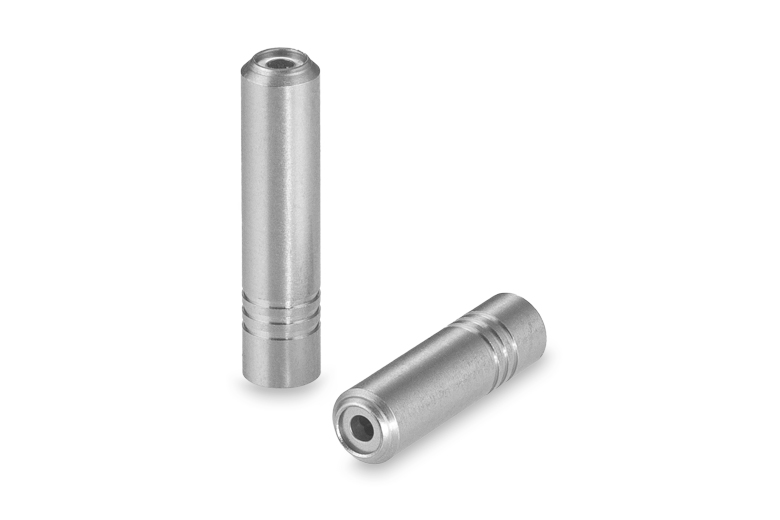

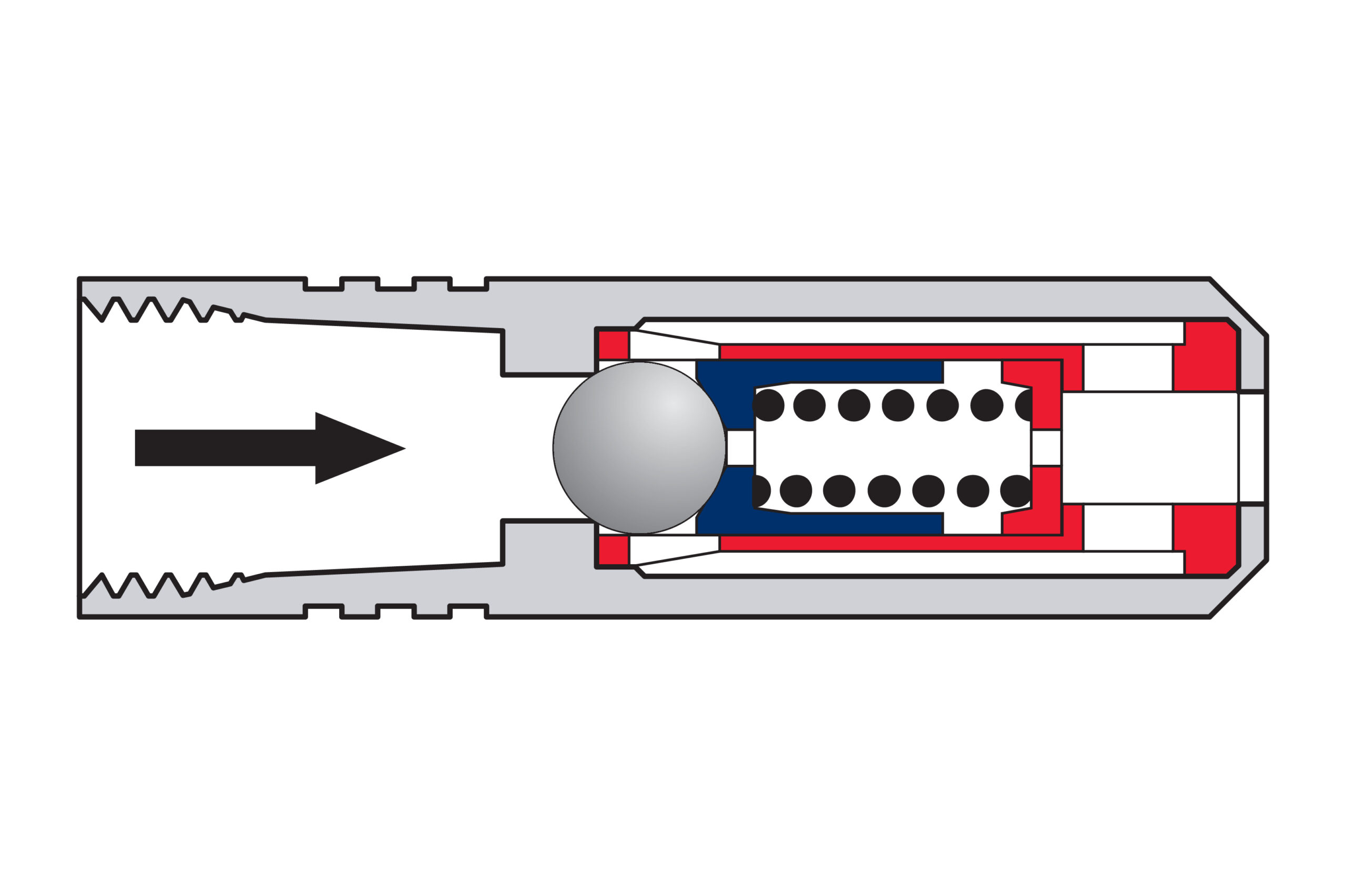

This direct-acting valve is ideally suited for low pressure hydraulic applications where a fast-opening safety valve is needed to prevent system damage from pressure spikes. Minimum cracking pressures are available from 20-100 psid. An integral safety screen is available for added protection.
| Characteristic | Specification |
|---|---|
| Tolerance on Cracking Pressure | ± 10% |
| Full Open Lohm Rate | Unscreened: 400 Lohms Maximum Screened: 460 Lohms Maximum |
| Lohm Rate at 125% of Actual Crack | Unscreened: 1100 Lohms Maximum Screened: 1500 Lohms Maximum |
| Restriction at Min. Recommended Valve Lift | 1500 Lohms Maximum |
| Reseat Leakage (90% of Actual Crack.) | 10 Drops / Minute Maximum |
| Shutoff Leakage (85% of Actual Crack.) | 10 Drops / Hour Maximum |
| Nominal System Pressure | up to 3000 psi |
| Screen Hole Size (Screened Version Only) | 0.008 inches Nominal |
| Nominal Weight | Unscreened: 1.5 grams Screened: 1.7 grams |
| Test Fluid | MIL-PRF-83282 at 85°F |
| PART | MATERIAL | SPECIFICATION |
|---|---|---|
| Body | 303 CRES | QQ-S-763C |
| Pin | 17-4PH CRES | AMS 5643 |
| Spring | 17-7PH CRES | AMS 5678 |
| Ball | 440C CRES | AMS 5630 |
| Cage | 303 CRES | QQ-S-763C |
| Spring Seat | 303 CRES | QQ-S-763C |
| Ball Follower | 303 CRES | QQ-S-763C |
| Screen (Screened Version Only) | 304L CRES | ASTM A 666 |
| Braze (Screened Version Only) | - | AMS 4774 |
This table below contains the part numbers and technical specifications for this product. If you have specific questions, need a quote, or would like to request a handbook or drawing, click the red request button in the column on the far right.
| PART NUMBER | DESCRIPTION |
|---|---|
| CUTA1870104C | Installation / Extraction Tool Set |
| JETA1870004A | Replacement Pin |
From plugs to solenoid valves, there’s a vast array of products that The Lee Company can offer. If you’d like to discuss the best solution for your specific application or to learn more about our capabilities, use-cases, or quality standards, contact your local Lee sales engineer.
Your download has started.
We’re always ready to be your engineering partner. Fill out this form below so we can provide the solution you need.
We have received your inquiry and a member of our team will be in contact shortly to provide more information. Thank you for contacting The Lee Company!
The Lee Company has developed the Lohm Laws for defining and measuring resistance to fluid flow. The Lohm is defined such that 1 Lohm will flow 100 GPM of water with a pressure drop of 25 psi at a temperature of 80°F.
Always verify flow calculations by experiment.
*There are many parameters to consider when determining V-Factor. Click here for more information.
